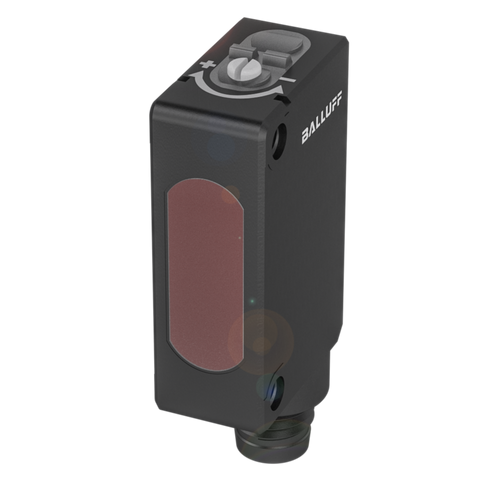

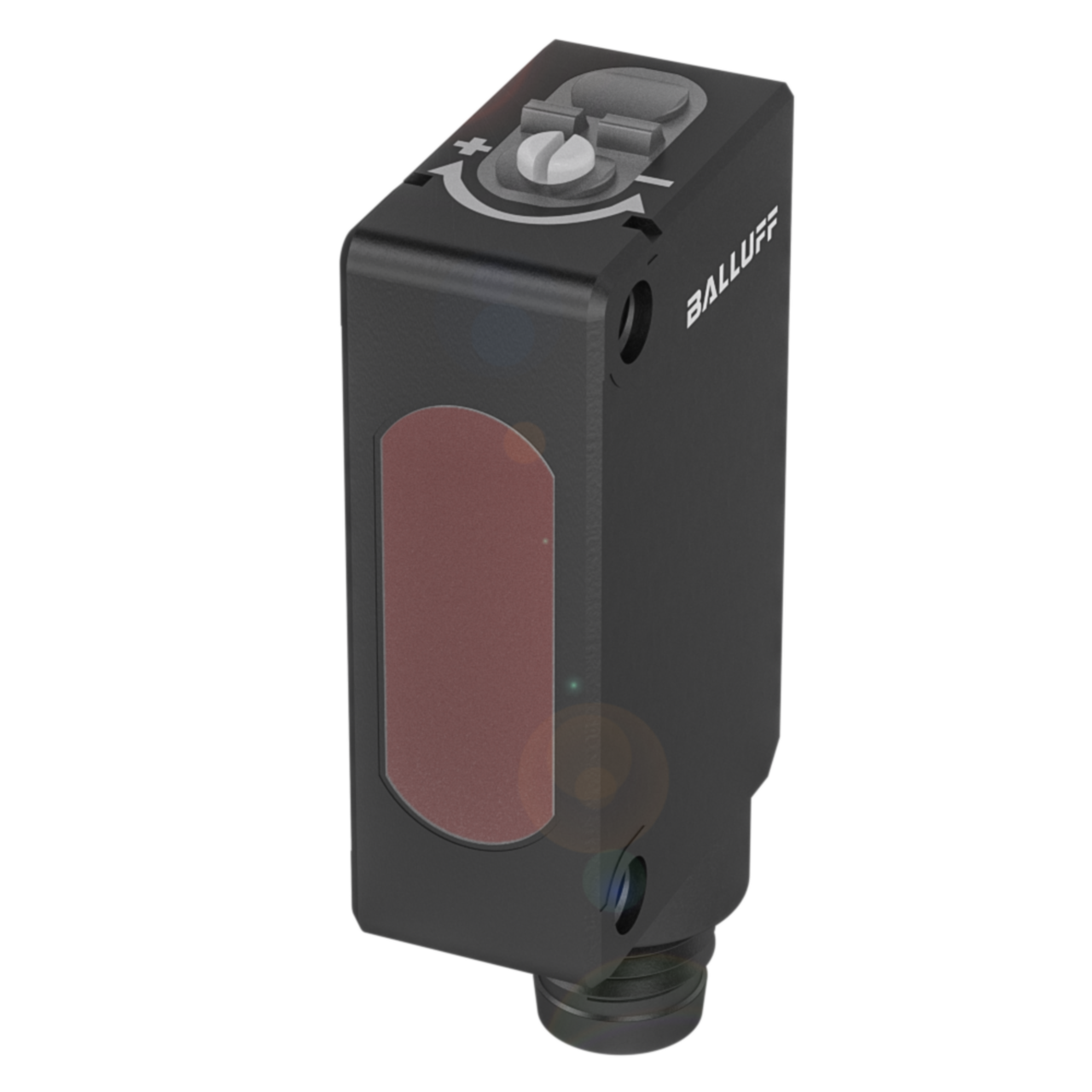

Balluff BOS R090K-PU-ID11-S75 Diffuse sensor, PNP, NO/NC Part number BOS02AF

The BOS R090K-PU-ID11-S75 is a diffuse photoelectric sensor with a PNP output configurable as normally open or normally closed, connected via an M8x1 4-pin connector. It offers a rated operating distance of 1000mm and operates from a 10-30 VDC supply, with an IP67-rated PC/PBT housing and PMMA sensing surface suited to compact panel or machine mounting via M3 screws. Status is indicated through yellow (output function) and green (stability) LEDs, and the housing dimensions of 43.5 x 19.5 x 10.7mm allow installation in confined spaces.

Key specifications

• IP rating: IP67
• Operating voltage: 10 - 30 VDC
• Connection: Connector / M8x1 / 4-pin
• Output: PNP normally open/normally closed (NO/NC)
• Mounting: Screw M3
