Description

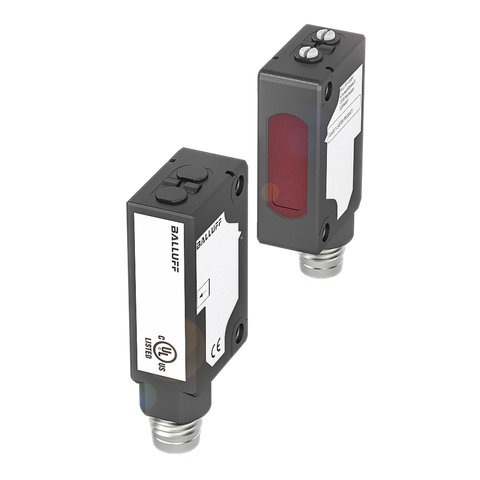

xThis diffuse sensor with background suppression is designed for short-range object detection. It offers a reliable and accurate sensing solution for automation applications, providing resistance to ambient light and ensuring stable performance in various conditions.
Specifications
x| IP Rating | IP67 |
| Compliance/Certifications | cULus CE WEEE UKCA / IEC 60947-5-2 |
| Material: Housing / Grip | PBT / PC |
| Material: Sensing Surface / Contacts | PMMA |
| Part Width (mm) | 43.5mm |
| Part Length (mm) | 10.8mm |
| Part Height (mm) | 19.5mm |
| Connection Type | M8x1 / Male / 4-pin |
| Tightening Torque | 0.5 Nm |
| Rated Operating Distance (mm) | 30 000mm (adjustable) |
| Switching Output | PNP normally open/normally closed (NO/NC) |
| Switching Frequency (Hz) | 2000 Hz |
| Operating Voltage | 10 - 30 VDC |
| Rated Voltage | 24 VDC |
| Rated Operating Current | 100 mA |
