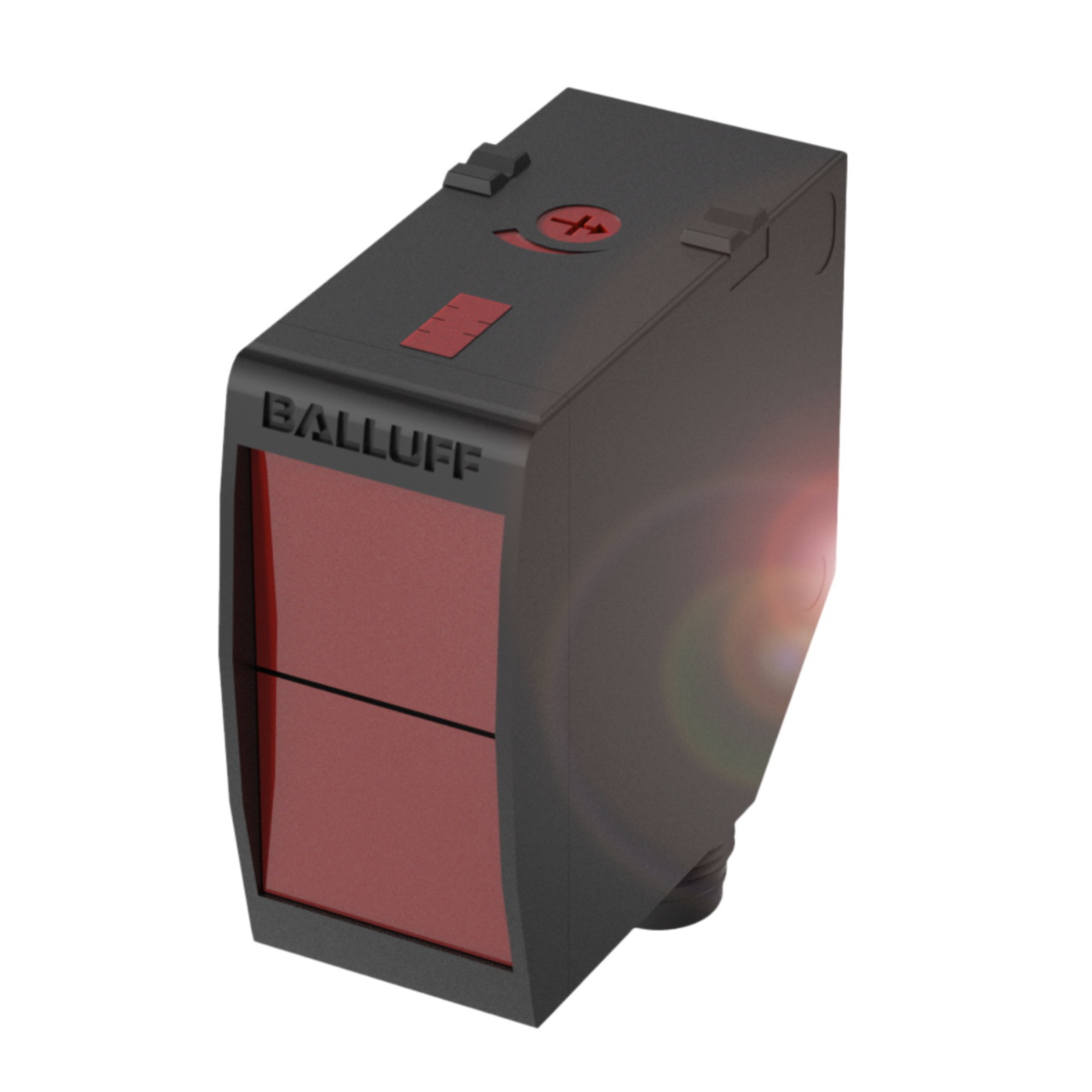

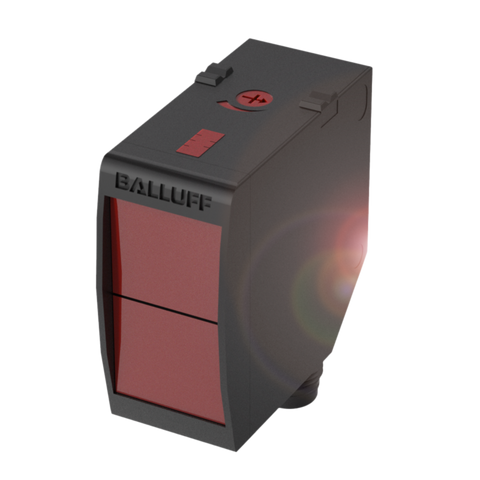

xThe BOS 23K-PU-RH10-S4 is a diffuse photoelectric sensor with background suppression, giving a rated operating distance of 800mm regardless of target reflectivity. It provides a PNP NO/NC switching output and connects via an M12x1 4-pin male connector for straightforward panel or machine integration. Housed in PC/ABS with a PMMA sensing surface and rated IP6x/IPx9K, it is suited to demanding industrial environments requiring washdown protection, as reflected in its Ecolab certification.
Key specifications
- IP rating: IP6x / IPx9K
- Operating voltage: 10 - 30 VDC
- Rated voltage: 24 V
- Connection: M12x1 / Male / 4-pin
- Output: PNP normally open/normally closed (NO/NC)
Specifications
x| IP Rating | IP6x / IPx9K |
| Compliance/Certifications | Ecolab CE cULus WEEE / IEC 60947-5-2 |
| Material: Housing / Grip | PC / ABS |
| Material: Sensing Surface / Contacts | PMMA |
| Part Depth (mm) | 51mm |
| Part Width (mm) | 23mm |
| Part Height (mm) | 52.4mm |
| Connection Type | M12x1 / Male / 4-pin |
| Tightening Torque | 1.5 Nm |
| Rated Operating Distance (mm) | 800mm |
| Switching Output | PNP normally open/normally closed (NO/NC) |
| Switching Frequency (Hz) | 600 Hz |
| Rated Insulation Voltage | 75 VDC |
| Operating Voltage | 10 - 30 VDC |
| Rated Voltage | 24 V |
| Rated Operating Current | 100 mA |
