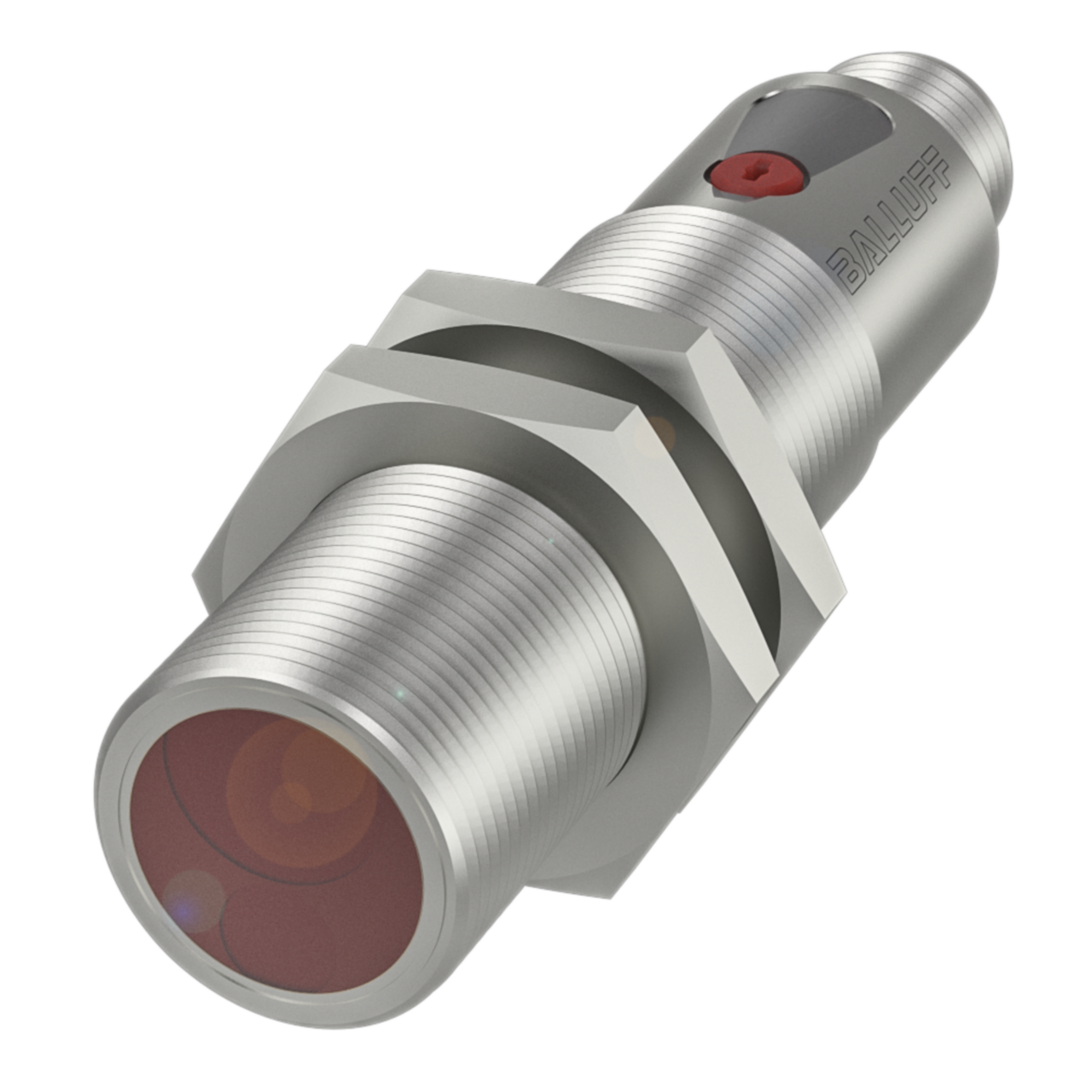

Balluff BOS 18M-PA-LH23-S4 Diffuse sensor with b/ground suppr. Part number BOS01C5

The BOS 18M-PA-LH23-S4 is a diffuse photoelectric sensor with background suppression, housed in a brass, nickel-plated M18 body with a PMMA sensing surface and IP67 protection. It offers an adjustable operating distance of up to 150 mm and provides PNP normally open and normally closed outputs via an M12x1, 4-pin male connector, operating from 10-30 VDC. Such sensors are typically used in industrial automation applications for detecting objects regardless of colour or surface reflectivity, where connection into control panels or machine enclosures is required.

Key specifications

• IP rating: IP67
• Operating voltage: 10 - 30 VDC
• Rated voltage: 24 V
• Connection: M12x1 / Male / 4-pin
• Output: PNP normally closed (NC) PNP normally open (NO) Pins 4-2
