Description

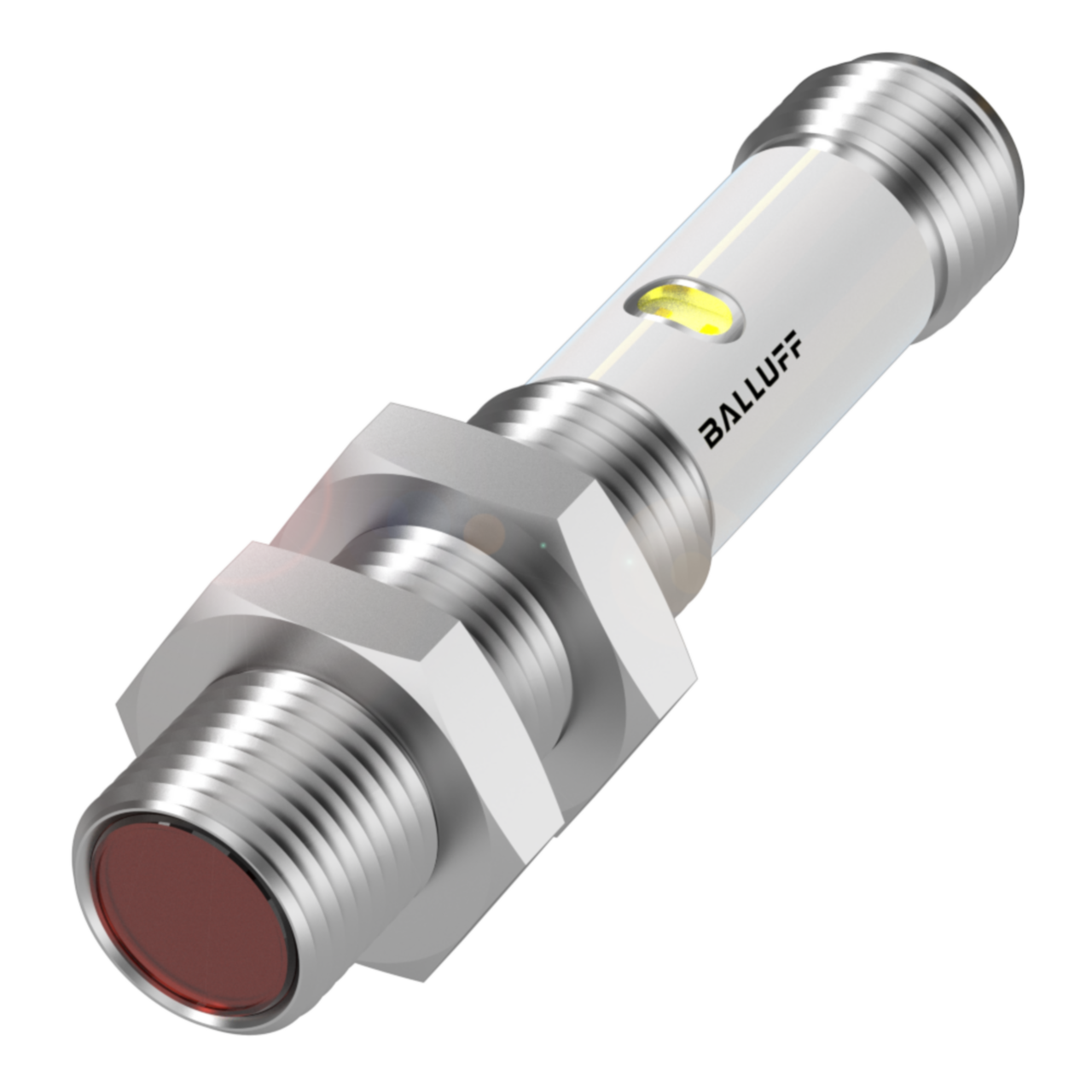

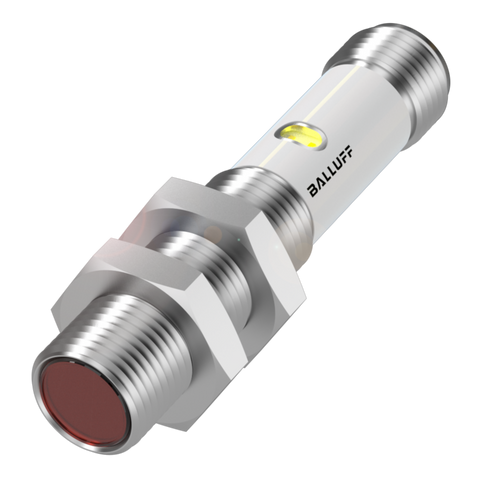

xThis is a through-beam photoelectric sensor with a rated operating distance of up to 8000mm, designed for detecting objects across a fixed gap between separate emitter and receiver units. The housing is a nickel-plated brass M12 barrel with a PMMA sensing surface, IP67 rated for use in harsh industrial environments, and connects via an M12x1 4-pin male connector. It operates from 10-30 VDC and mounts using an M12x1 nut, suitable for panel or machine-frame installation where a compact cylindrical sensor is required.
Key specifications
- IP rating: IP67
- Operating voltage: 10 - 30 VDC
- Rated voltage: 24 V
- Connection: M12x1 / Male / 4-pin
- Mounting: Nut M12x1
Specifications
x| IP Rating | IP67 |
| Compliance/Certifications | CE UKCA cULus WEEE / IEC 60947-5-2 |
| Material: Housing / Grip | Brass / Nickel-plated |
| Material: Sensing Surface / Contacts | PMMA |
| Part Length (mm) | 60mm |
| Part Diameter (mm) | 12mm |
| Connection Type | M12x1 / Male / 4-pin |
| Tightening Torque | 15 Nm |
| Rated Operating Distance (mm) | 8000mm |
| Rated Insulation Voltage | 75 VDC |
| Operating Voltage | 10 - 30 VDC |
| Rated Voltage | 24 V |
| Mounting Type | Nut M12x1 |
