Description

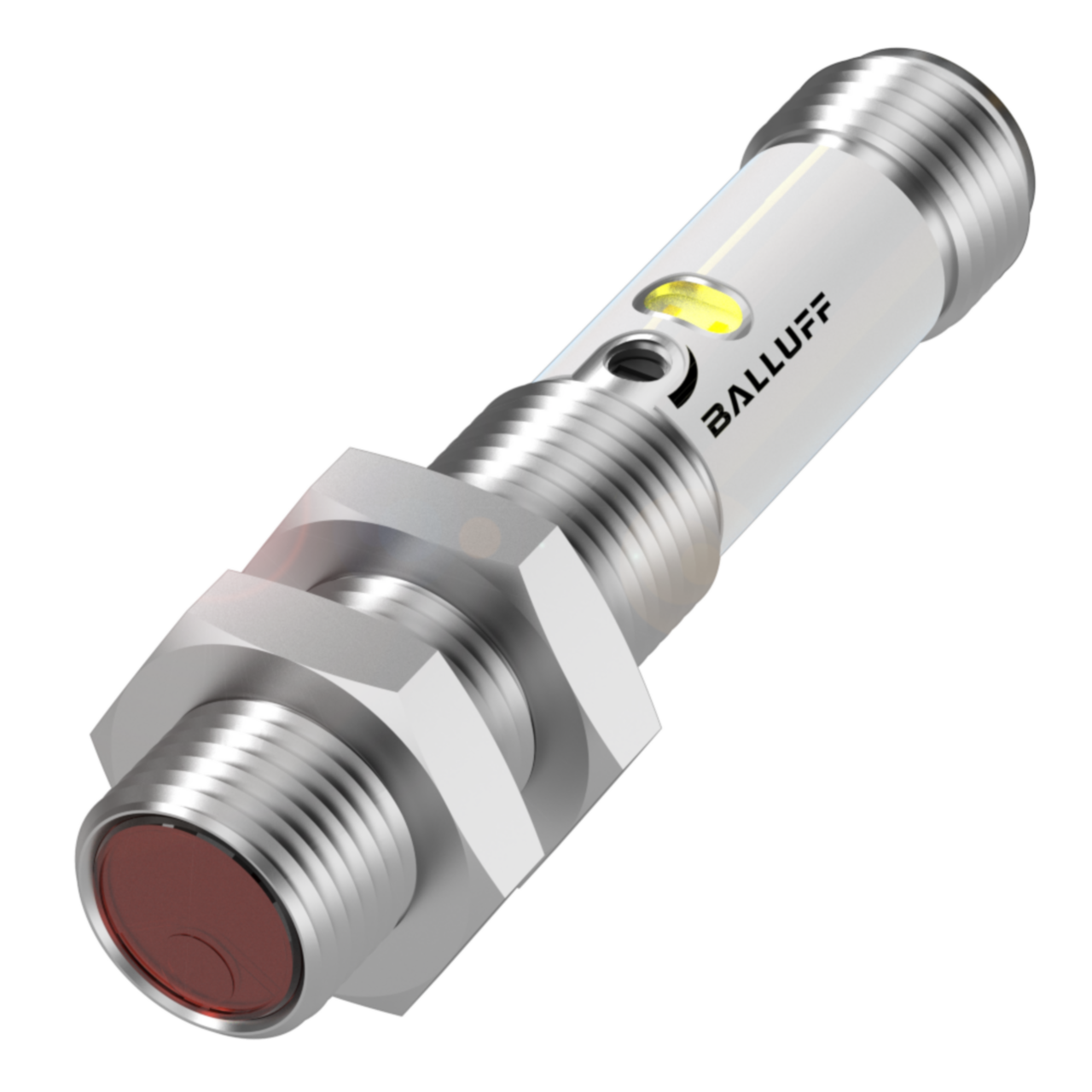

xThe BOS 12M-PS-PR10-S4 is a retroreflective photoelectric sensor with a PNP normally open output, operating at a rated distance of 3000mm and detecting via a reflector target. Its housing is brass with a nickel-plated finish and a PMMA sensing surface, rated IP67 for use in demanding industrial environments, and it connects via an M12x1 4-pin male connector. With an operating voltage range of 10–30 VDC and switching frequency of 1000 Hz, it is suited to automation panels and machine builds requiring reliable object detection with M12 nut mounting.
Key specifications
- IP rating: IP67
- Operating voltage: 10 - 30 VDC
- Rated voltage: 24 V
- Output: PNP normally open (NO) Pin 4
- Mounting: Nut M12x1
Specifications
x| IP Rating | IP67 |
| Compliance/Certifications | Connector, M12x1-Male, 4-pin |
| Material: Housing / Grip | Brass / Nickel-plated |
| Material: Sensing Surface / Contacts | PMMA |
| Tightening Torque | 7 Nm 15 Nm |
| Rated Operating Distance (mm) | 3000mm |
| Switching Output | PNP normally open (NO) Pin 4 |
| Switching Frequency (Hz) | 1000 Hz |
| Rated Insulation Voltage | 75 VDC |
| Operating Voltage | 10 - 30 VDC |
| Rated Voltage | 24 V |
| Mounting Type | Nut M12x1 |
| Rated Operating Current | 100 mA |
