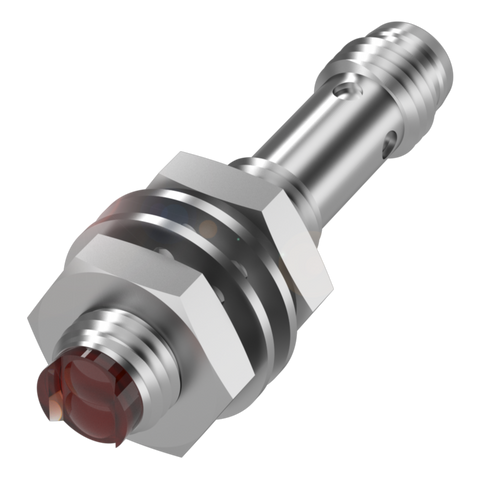

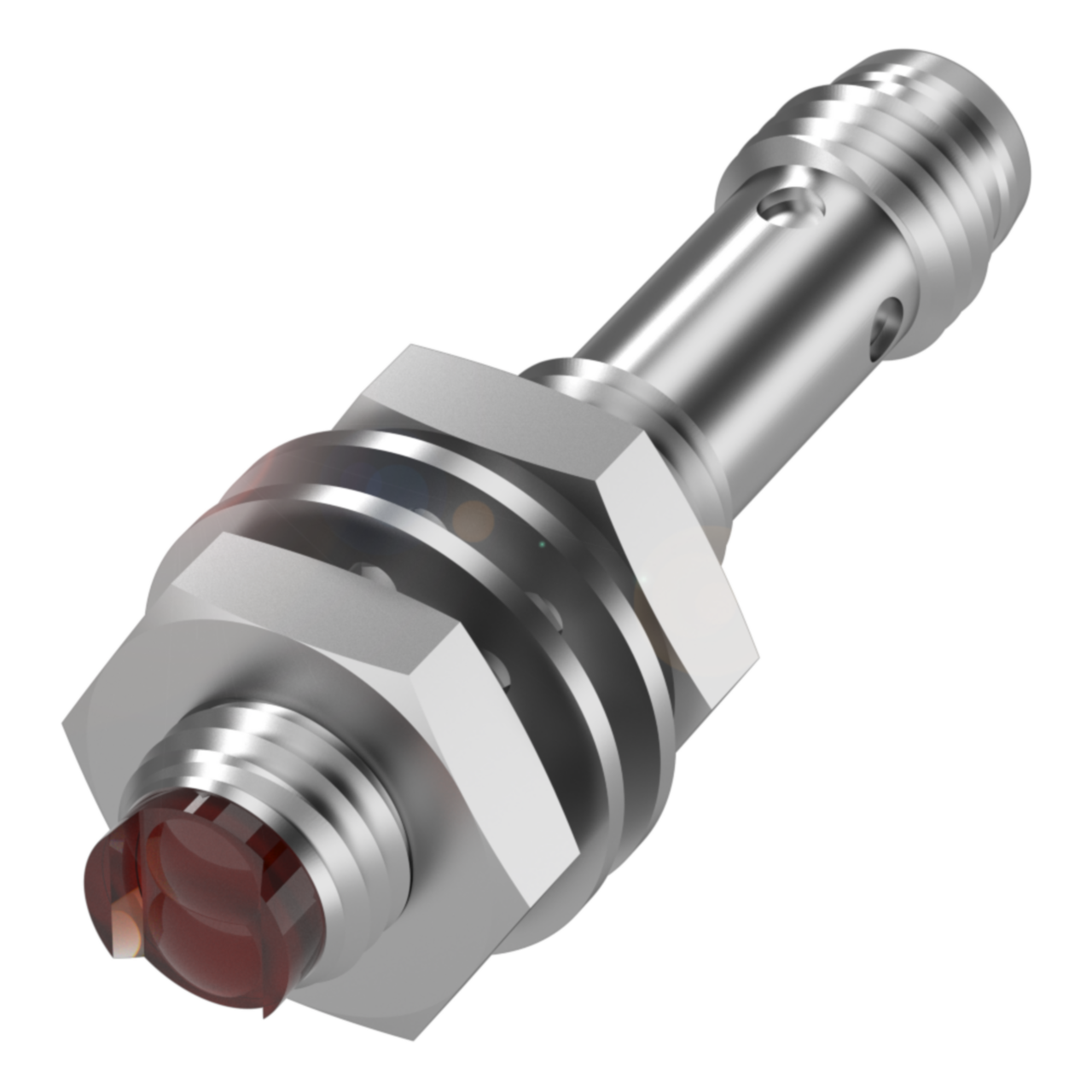

Balluff BOS 08E-PS-PR20-S49 Retroreflective sensor, PNP, NO Part number BOS01RK

The BOS 08E-PS-PR20-S49 is a retroreflective photoelectric sensor with a PNP normally open output, designed to detect objects via a reflector at a rated operating distance of 1 m. Its housing is stainless steel with a PMMA sensing surface, and it carries an IP67 rating for use in wet or dusty industrial environments. Connection is made via an M8x1 3-pin male connector, with the M8x1 nut allowing straightforward mounting in automation panels and machine frames. It operates from a 10-30 VDC supply and switches at up to 500 Hz, suiting applications requiring object presence detection on production or conveying equipment.

Key specifications

• IP rating: IP67
• Operating voltage: 10 - 30 VDC
• Rated voltage: 24 V
• Connection: M8x1 / Male / 3-pin
• Output: PNP normally open (NO)
• Mounting: Nut M8x1
