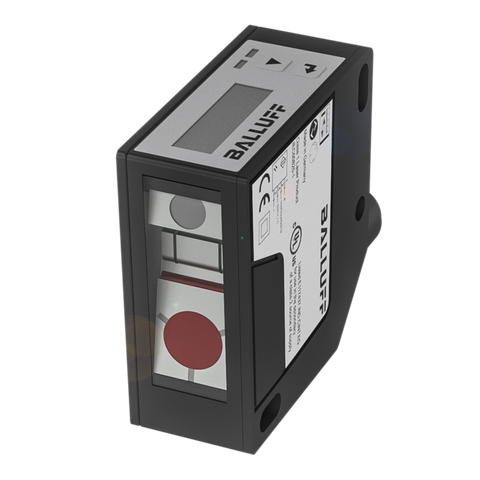

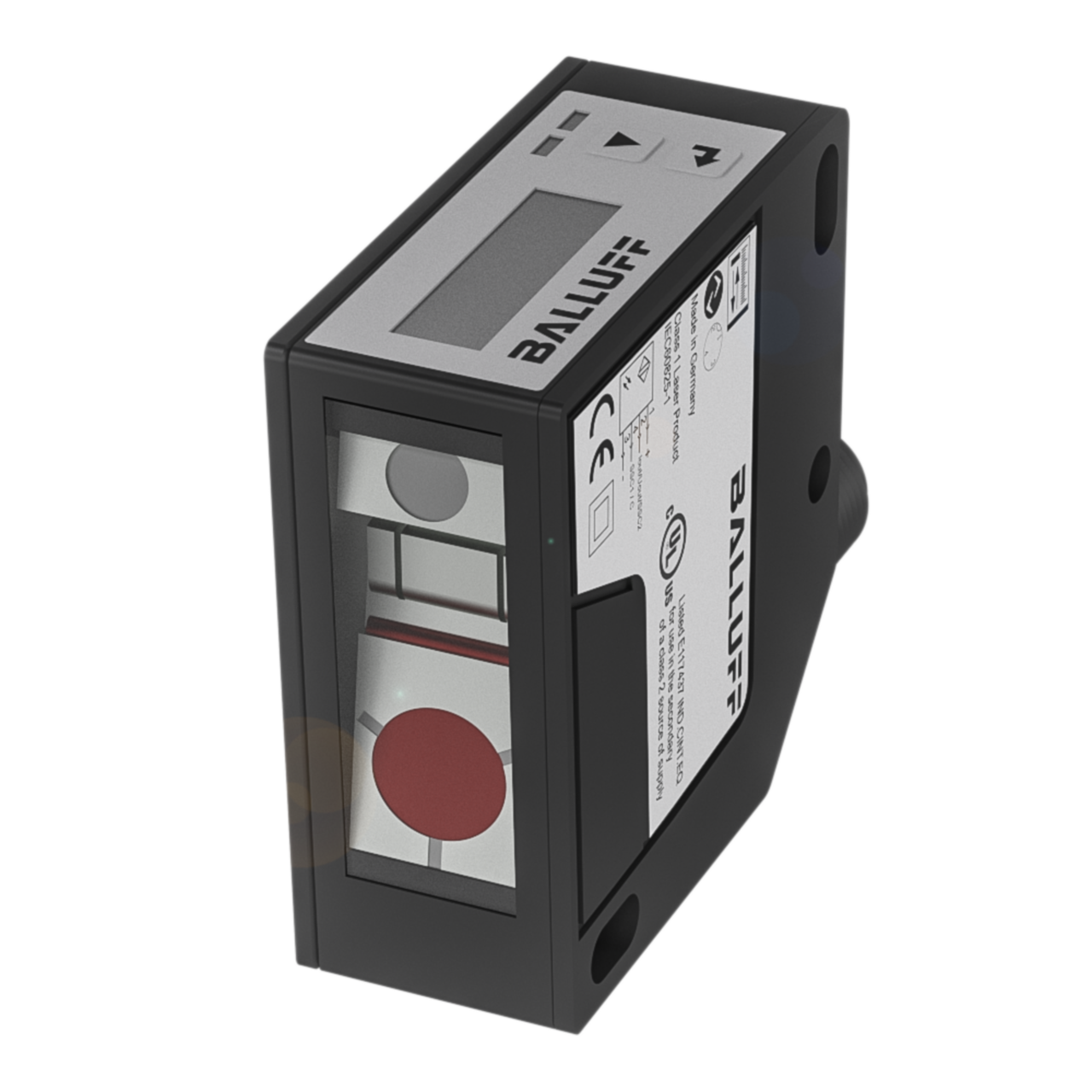

Balluff BOD 24K-LPI07-S4 Photoelectric distance sensor Part number BOD002M

The BOD 24K-LPI07-S4 is a photoelectric distance sensor from Balluff's Field Sensing & Connectivity range, housed in plastic with a glass sensing surface and rated to IP67 for use in demanding industrial environments. It provides two PNP/NPN NO/NC push-pull switching outputs alongside an IO-Link 1.1 interface, allowing both discrete switching and digital communication within the same device. Operating from an 18-30 VDC supply with a rated current of 100 mA and a switching frequency of 500 Hz, it is suited to distance and presence detection tasks in automated machinery and panel-based control systems.

Key specifications

• IP rating: IP67
• Operating voltage: 18 - 30 VDC
• Rated voltage: 24 V
• Output: 2x PNP/NPN NO/NC push-pull
