Description

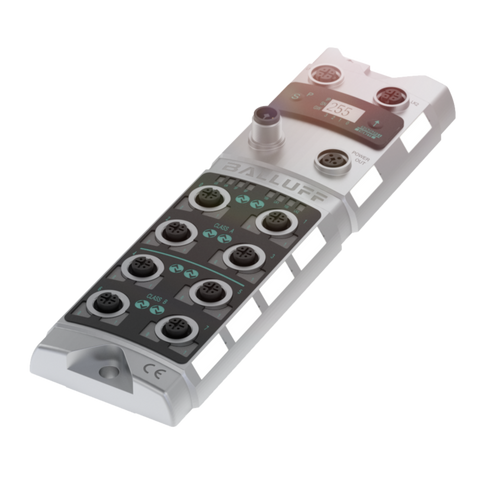

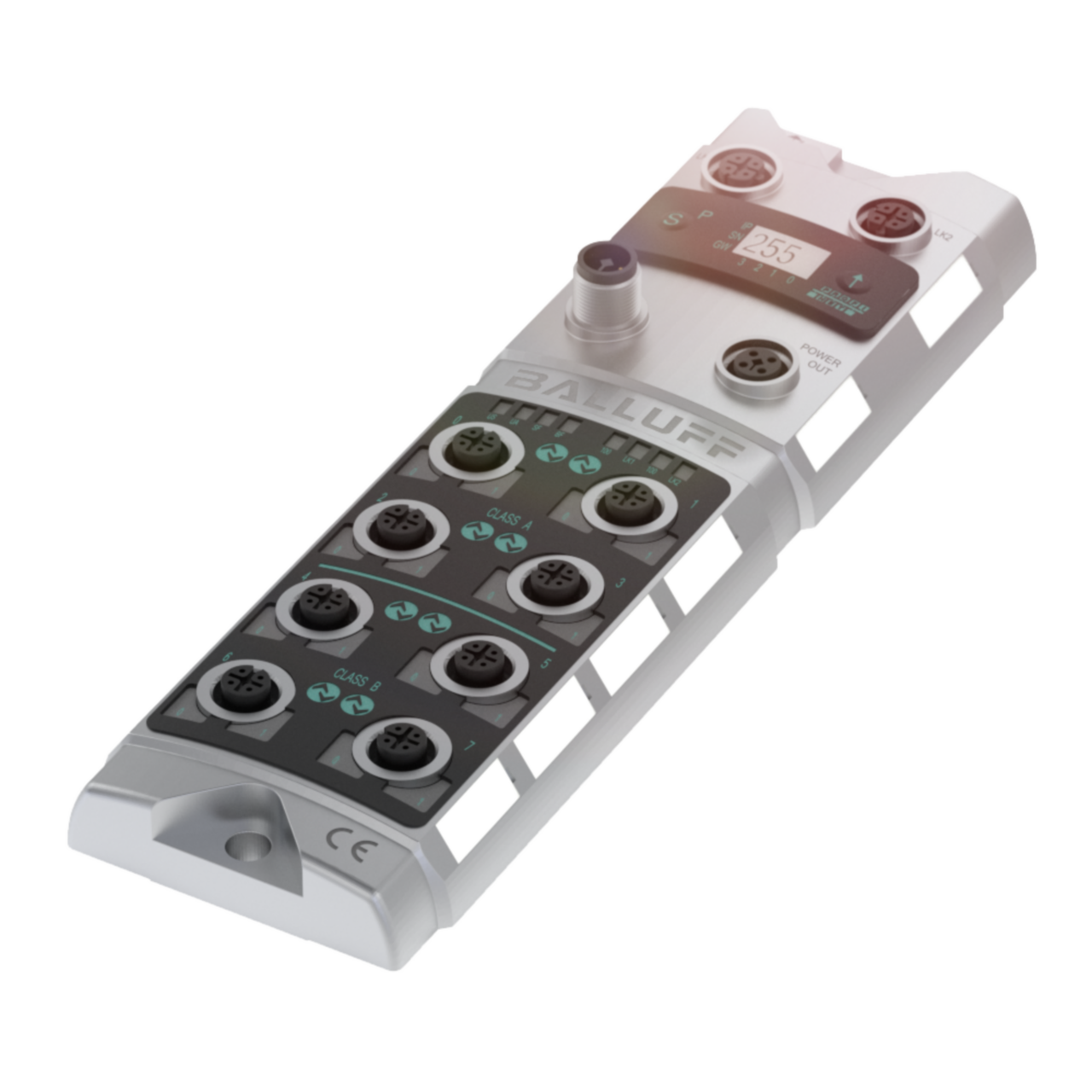

xThe BNI PNT-538-105-Z063 is a Profinet I/O network block with eight M12 connection slots for linking field sensors and actuators into a Profinet network. It provides dedicated M12 D-coded ports for network connection and separate M12 T-coded ports for supply voltage in and out, operating at 18 to 30.2 VDC. The housing is zinc die-cast with an FKM gasket and reaches IP67 when properly threaded in, suiting installation directly at the machine or field level in industrial automation systems.
Key specifications
- IP rating: IP67, when threaded in
- Operating voltage: 18 - 30.2 VDC
- Rated voltage: 24 V
Specifications
x| IP Rating | IP67, when threaded in |
| Compliance/Certifications | CE UKCA WEEE cULus |
| Material: Housing / Grip | Zinc die-casting |
| Material: Gasket | FKM 75 |
| Connection Type | Connection 1; M12x1 / Female / 4-pin / D-coded - Connection 2; M12x1 / Female / 4-pin / D-coded - Connection (supply voltage IN); M12x1 / Male / 4-pin / T-coded - Connection (supply voltage OUT); M12x1 / Female / 4-pin / T-coded - Connection slots 8x; M12x1 / Female / 5-pin / A-coded |
| Operating Voltage | 18 - 30.2 VDC |
| Rated Voltage | 24 V |
| Interface | Profinet I/O |
