Description

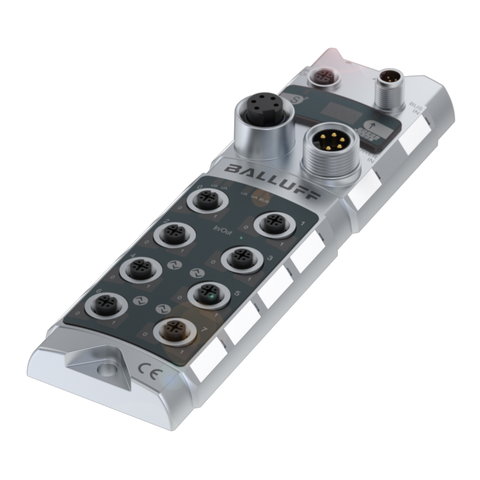

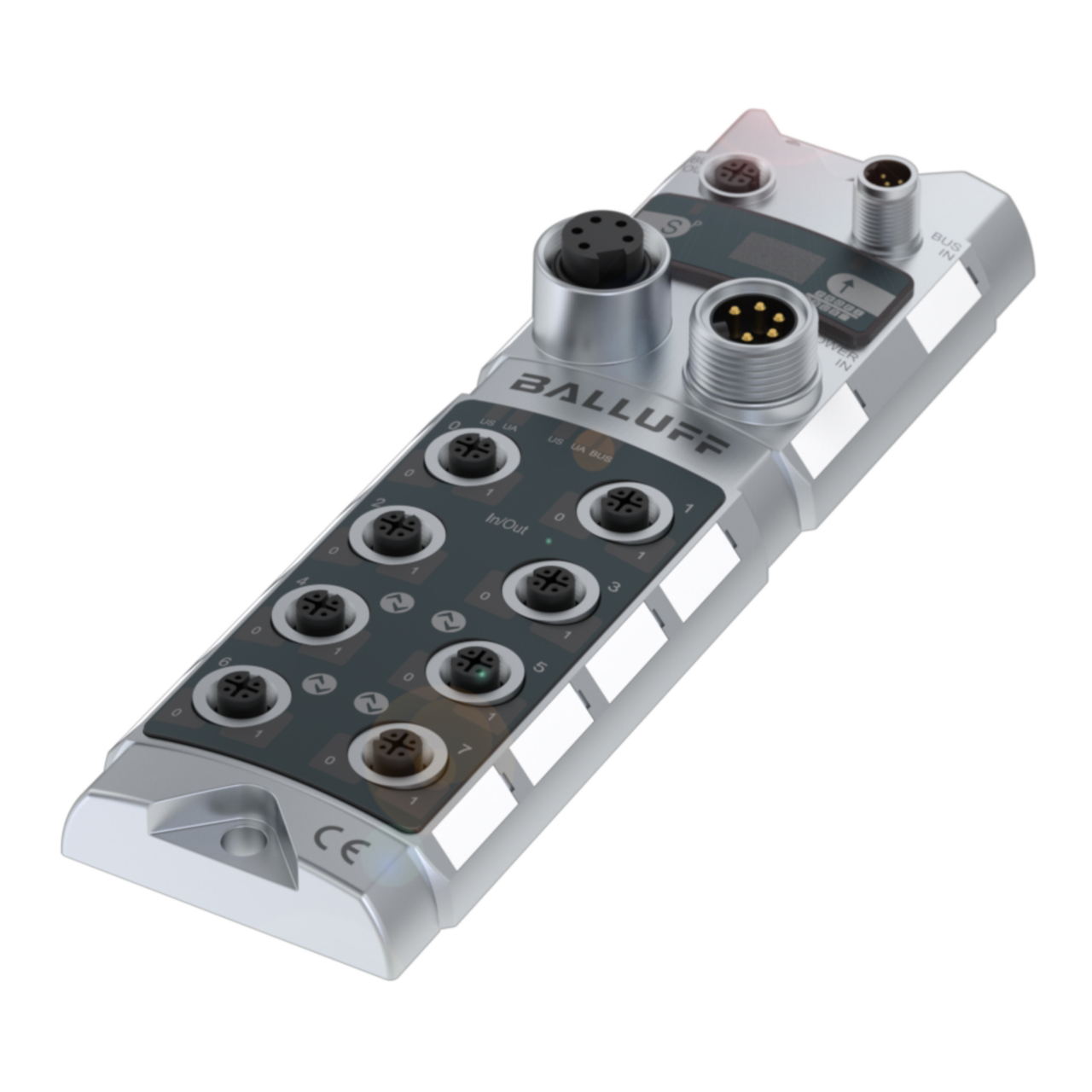

xThe Balluff BNI PBS-502-101-Z001 is a network blocks for profibus. It connects via Connection 1; M12x1 / Male / 5-pin / B-coded - Connection 2; M12x1 / Female / 5-pin / B-coded - Connection (supply voltage IN); 7/8" / Male / 5-pin - Connection (supply voltage OUT); 7/8" / Female / 5-pin - Connection slots 8x; M12x1 / Female / 5-pin / A-coded. The housing is rated IP67 when threaded in. Approvals: CE, UKCA, cULus, WEEE.
Key specifications
- IP rating: IP67 when threaded in
- Mounting: 2-hole screw mount
Specifications
x| IP Rating | IP67 when threaded in |
| Compliance/Certifications | CE UKCA WEEE cULus |
| Material: Housing / Grip | Zinc die casting |
| Material: Sensing Surface / Contacts | Gold-plated / Nickel-plated |
| Material: Gasket | FKM 75 |
| Part Depth (mm) | 37.9mm |
| Part Width (mm) | 68mm |
| Part Height (mm) | 224mm |
| Connection Type | Connection 1; M12x1 / Male / 5-pin / B-coded - Connection 2; M12x1 / Female / 5-pin / B-coded - Connection (supply voltage IN); 7/8" / Male / 5-pin - Connection (supply voltage OUT); 7/8" / Female / 5-pin - Connection slots 8x; M12x1 / Female / 5-pin / A-coded |
| Interface | Profibus DP EN 50170 |
| Mounting Type | 2-hole screw mount |
