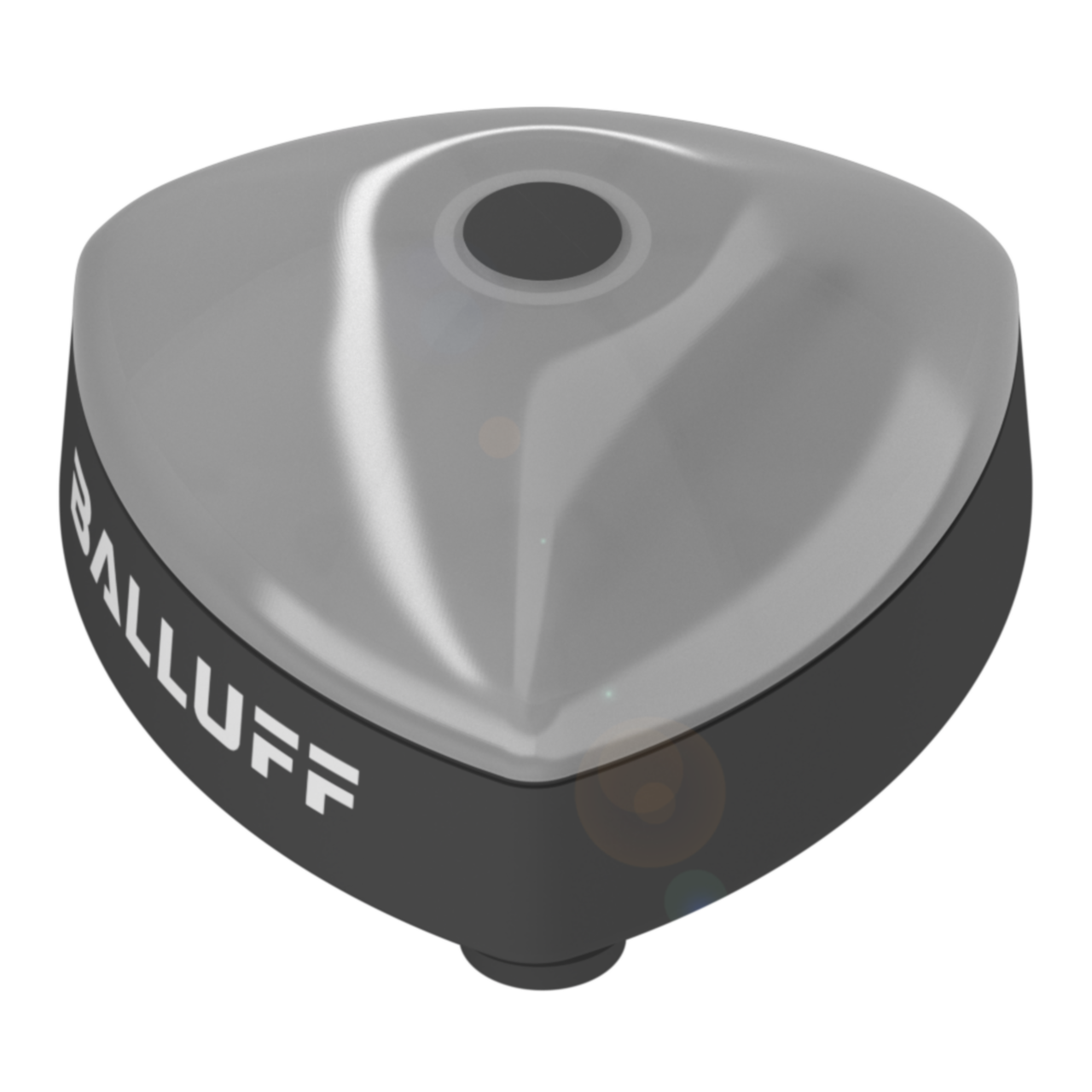

Balluff BNI IOL-803-103-R036 Smartlight, LED stack lights Part number BNI00E0

This IO-Link based LED stack light provides visual status indication for machines and automation cells, communicating over an IO-Link 1.1 interface for configuration and diagnostics from a controller. The IP67-rated housing, constructed from PC and PPS, suits use in industrial environments where protection against dust and moisture is required. It connects via an M12x1, 4-pin, A-coded male connector and operates from an 18 to 30.2 VDC supply, with a rated voltage of 24V.

Key specifications

• IP rating: IP67
• Operating voltage: 18 - 30.2 VDC
• Rated voltage: 24V
• Connection: M12x1 / Male / 4-pin / A-coded
