Description

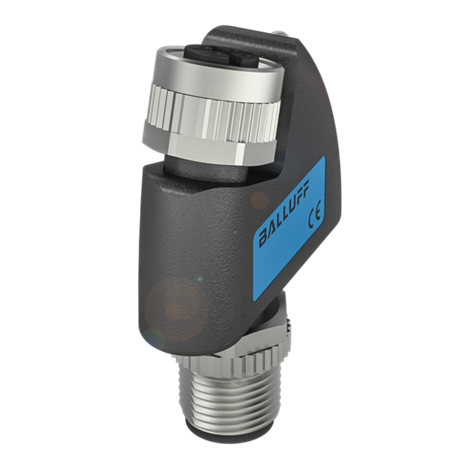

xThis signal converter enables IO-Link 1.0 communication between field devices and a controller, converting standard signals for transmission over an IO-Link network at COM2 (38.4 kBaud). It connects via an M12x1 4-pin A-coded male port and provides an M12x1 4-pin A-coded female slot, operating from 18 to 30.2 VDC (rated 24 V). Housed in a PA enclosure with an FKM 75 gasket and rated IP67, it is suited to field-level mounting in industrial automation panels and machinery where protection against dust and moisture is required.
Key specifications
- IP rating: IP67
- Operating voltage: 18 - 30.2 VDC
- Rated voltage: 24 V
- Connection: M12x1 / Male / 4-pin / A-coded (COM 1) / M12x1 / Female / 4-pin / A-coded (slots)
Specifications
x| IP Rating | IP67 |
| Compliance/Certifications | CE WEEE |
| Material: Housing / Grip | PA |
| Material: Gasket | FKM 75 |
| Part Depth (mm) | 50.4mm |
| Part Width (mm) | 14.2mm |
| Part Height (mm) | 40mm |
| Connection Type | M12x1 / Male / 4-pin / A-coded (COM 1) / M12x1 / Female / 4-pin / A-coded (slots) |
| Data Transmission Rate | COM2 (38.4 kBaud) |
| Operating Voltage | 18 - 30.2 VDC |
| Rated Voltage | 24 V |
| Interface | IO-Link 1.0 |
