Description

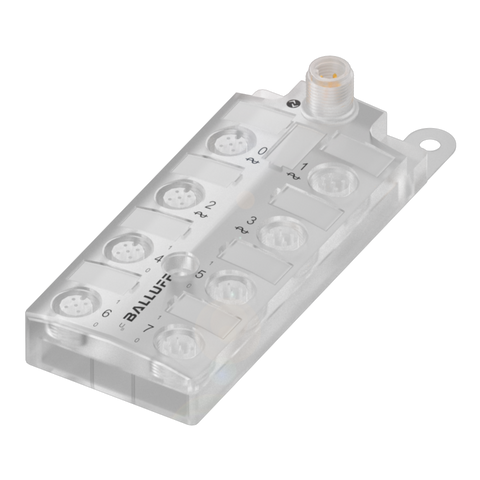

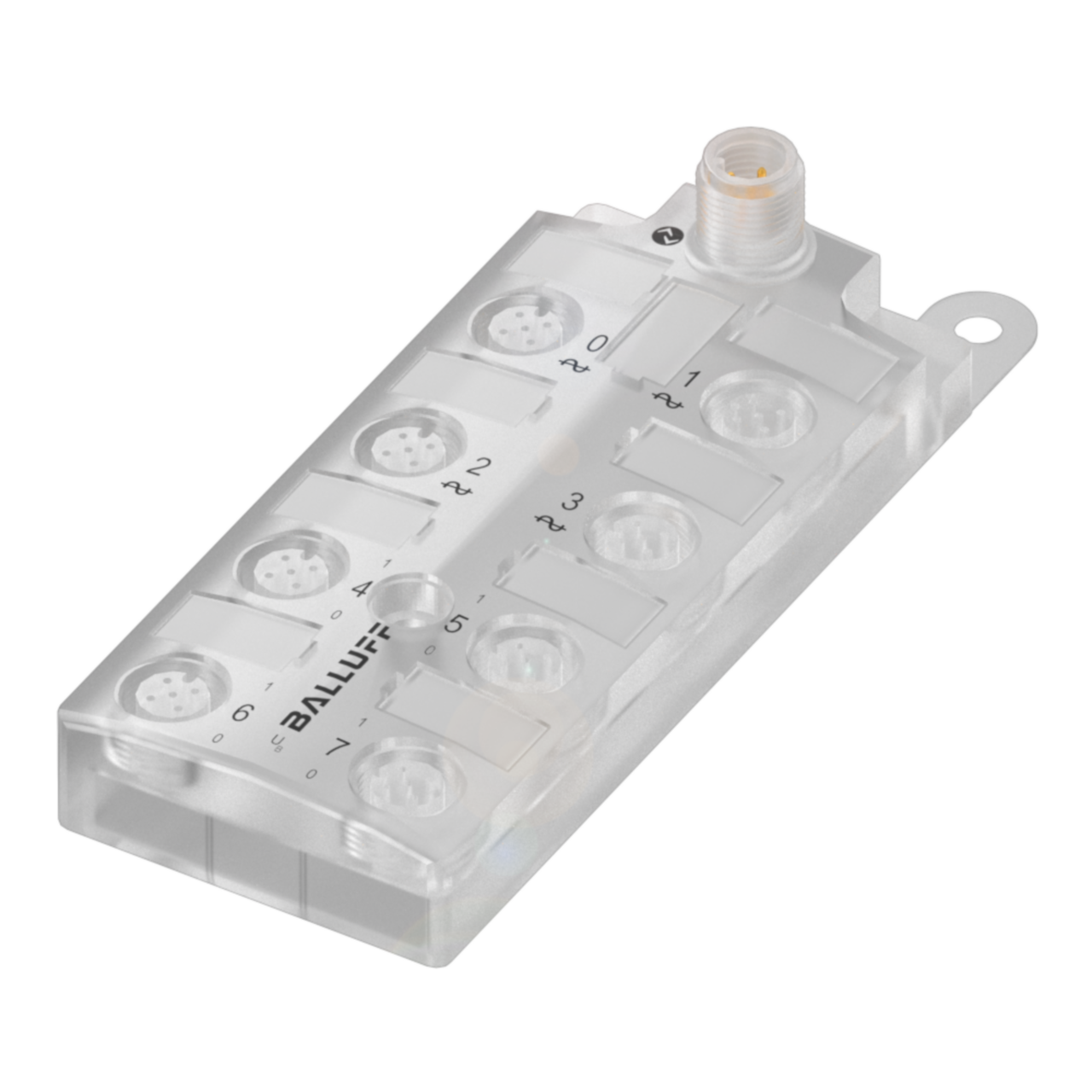

xThis IO-Link hub provides eight M12 female connection points for digital PNP sensors or actuators, aggregating their signals for transmission to a controller via a single M12 IO-Link master connection. The housing is IP67 rated with the connector fitted, uses a PA body with an FKM gasket, and is fitted for 3-hole screw mounting, suiting installation directly on machinery or panel structures in industrial environments. It operates from an 18 to 30.2 VDC supply, with a rated voltage of 24 V and a current consumption of 40 mA.
Key specifications
- IP rating: IP67, with connector
- Operating voltage: 18 - 30.2 VDC
- Rated voltage: 24 V
- Connection: Connection 1; M12x1 / Male / 4-pin / A-coded - Connection slots 8x; M12x1 / Female / 5-pin / A-coded
- Mounting: 3-hole screw mount
Specifications
x| IP Rating | IP67, with connector |
| Compliance/Certifications | CE UKCA WEEE cULus |
| Material: Housing / Grip | PA |
| Material: Gasket | FKM 75 |
| Part Depth (mm) | 30.8mm |
| Part Width (mm) | 50mm |
| Part Height (mm) | 115mm |
| Connection Type | Connection 1; M12x1 / Male / 4-pin / A-coded - Connection slots 8x; M12x1 / Female / 5-pin / A-coded |
| IO-Link Process data length input / output | 8x PNP, Type 2 (Digital input) |
| Operating Voltage | 18 - 30.2 VDC |
| Rated Voltage | 24 V |
| Interface | IO-Link 1.0 |
| Mounting Type | 3-hole screw mount |
| Current consumption | 40 mA |
