Balluff BNI EIP-508-005-Z015-013 Network blocks for Ethernet/IP
Balluff BNI EIP-508-005-Z015-013 Network blocks for Ethernet/IP

Balluff BNI EIP-508-005-Z015-013 Network blocks for Ethernet/IP

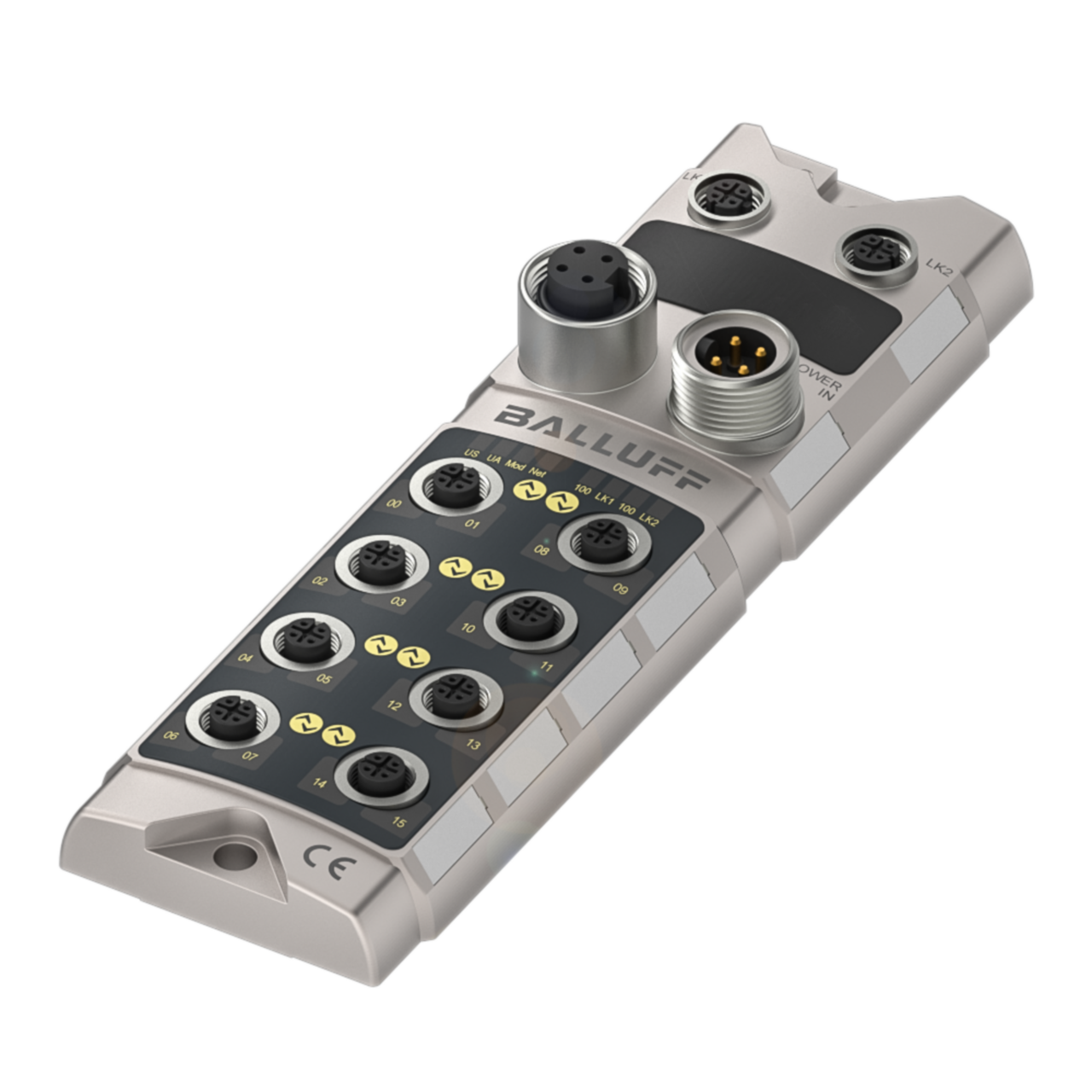

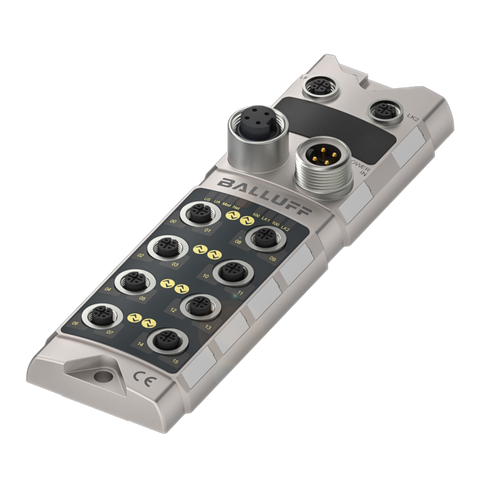

This Ethernet/IP network block supports up to 8 IO-Link devices with a rugged die-cast zinc housing. It provides reliable performance in demanding industrial environments, offering short-circuit and overload protection with a high operating voltage of 24 VDC.
Vendor: Balluff
SKU: BNI00HM
Availability: In stock
Product type: Field Sensing & Switching
Please hurry! Only 6 left in stock
Description
Description
x

This Ethernet/IP network block supports up to 8 IO-Link devices with a rugged die-cast zinc housing. It provides reliable performance in demanding industrial environments, offering short-circuit and overload protection with a high operating voltage of 24 VDC.

Specifications
Specifications
x
IP RatingIP67, when threaded in
Compliance/CertificationsCE WEEE UKCA cULus
Material: Housing / GripNickel-plated / Zinc die-casting
Material: GasketFKM 75
Connection TypeConnection 1; M12x1 / Female / 4-pin / D-coded - Connection 2; M12x1 / Female / 4-pin / D-coded - Connection (supply voltage IN); 7/8"/ Male / 4-pin - Connection (supply voltage OUT) 7/8"; Female / 4-pin - Connection slots 8x; M12x1 / Female / 5-pin / A-coded
Operating Voltage 18 - 30.2 VDC
InterfaceEthernet/IP
Documents
Documents
x
Download Datasheet
