Description

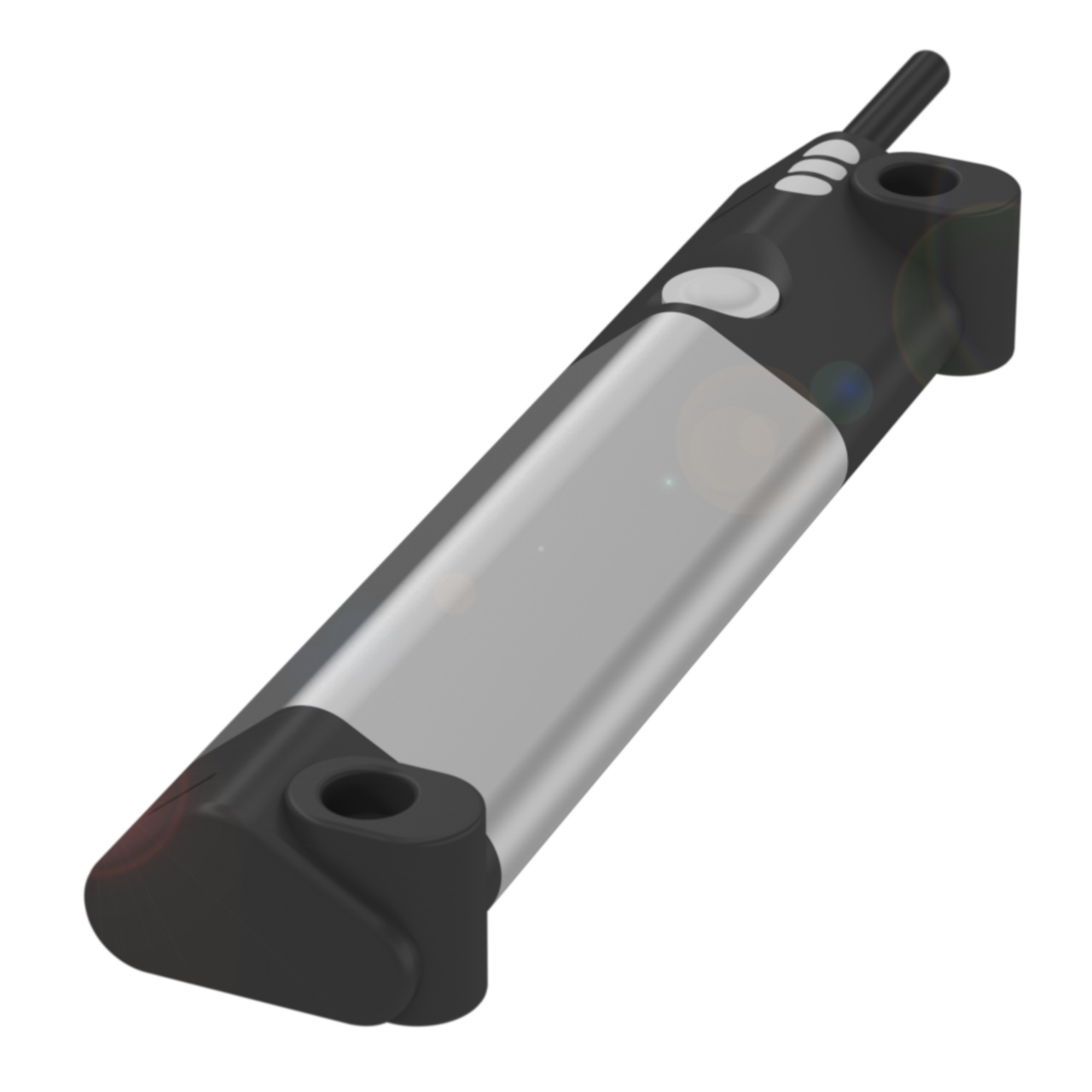

xThis magnetic field positioning system is a Balluff BMP series device used to determine linear position via a magnetic field sensing principle, communicating over IO-Link 1.1. It operates on 15-30 VDC and is constructed with an aluminium and PA 12 housing/grip and a PUR jacket, making it suitable for installation in industrial automation panels and machines where position feedback is required. Cable specifications include a 2.4mm diameter with defined minimum bending radii for both fixed and flexible routing.
Key specifications
- Operating voltage: 15 - 30 VDC
- Rated voltage: 24 V
- Bending radius: Bending radius min., fixed cable 3 x D / Bending radius min., flexible cable 10 x D
Specifications
x| Compliance/Certifications | CE UKCA cULus WEEE / IEC 60947-5-2 IEC 60947-5-7 |
| Material: Housing / Grip | Aluminium / PA 12 |
| Material: Jacket / Cover Nut | PUR |
| Bending Radius | Bending radius min., fixed cable 3 x D / Bending radius min., flexible cable 10 x D |
| Cable Diameter (mm) | 2.4mm |
| Conductor Cross-section | 0.07 mm² |
| Tightening Torque | 0.1 Nm |
| Rated Insulation Voltage | 75 VDC |
| Operating Voltage | 15 - 30 VDC |
| Rated Voltage | 24 V |
| Interface | IO-Link 1.1 |
