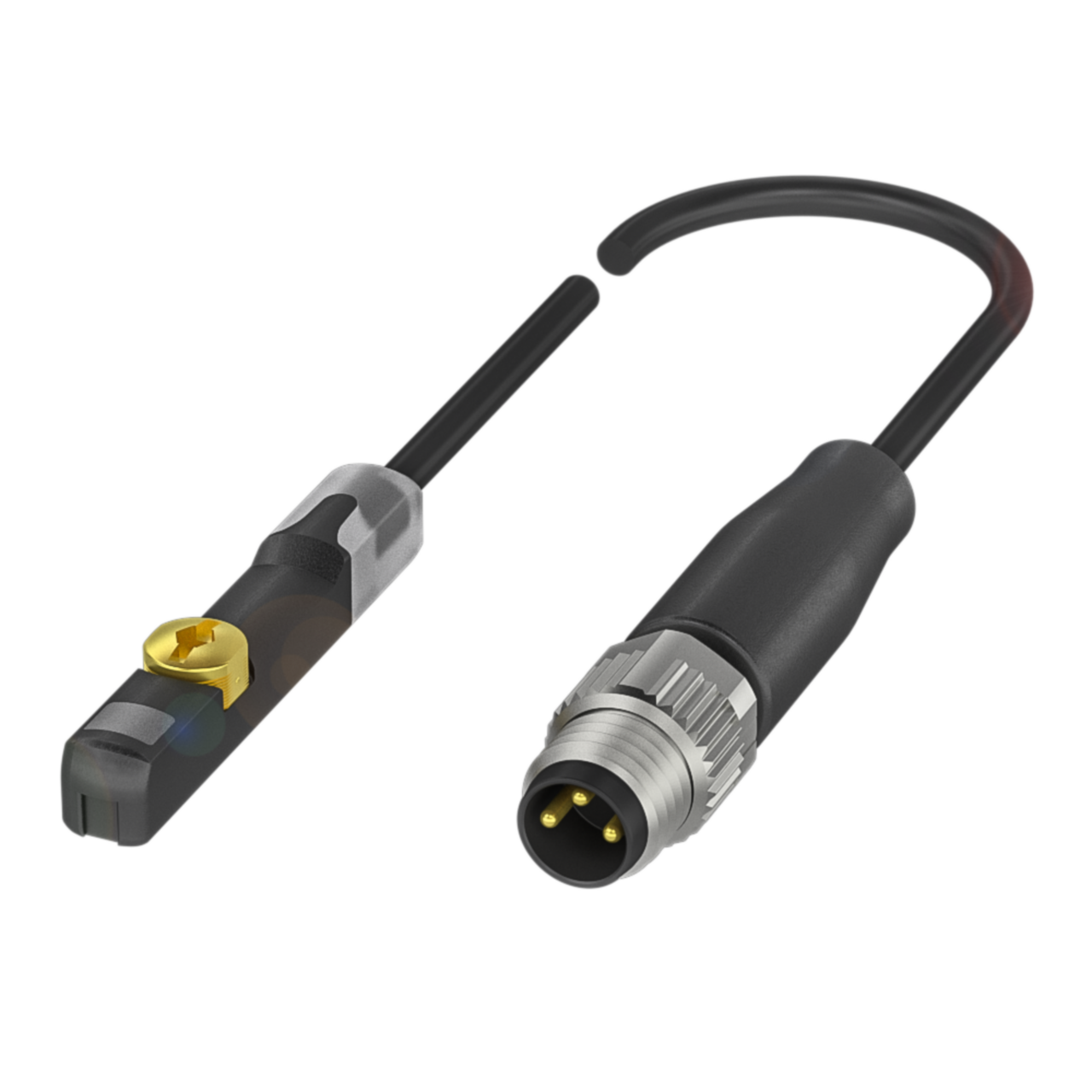

xThe BMF 415KW-HAPS-W-5-P0-S49-00 is a magnetic field sensor designed for direct installation into T-slot cylinder profiles from above, making it suited to detecting piston position on pneumatic actuators. It provides a PNP normally open output, operates from 10 to 30 VDC, and connects via an M8x1, 3-pin, A-coded male connector with a 300mm cable. Housed in PA 12 with a TPU jacket and rated IP67, it is built for use in industrial environments where exposure to dust and moisture is expected.
Key specifications
- IP rating: IP67
- Operating voltage: 10 - 30 VDC
- Rated voltage: 75 VDC
- Connection: M8x1 / Male / 3-pin / A-coded
- Output: PNP normally open (NO)
- Mounting: Can be installed in T-slot from above
Specifications
x| IP Rating | IP67 |
| Compliance/Certifications | CE UKCA cULus WEEE / IEC 60947-5-2 |
| Material: Housing / Grip | PA 12 |
| Material: Jacket / Cover Nut | TPU |
| Material: Sensing Surface / Contacts | PA 12 |
| Part Depth (mm) | 6.4mm |
| Part Width (mm) | 5mm |
| Cable Length (mm) | 300mm |
| Part Height (mm) | 34mm |
| Cable Diameter (mm) | 2.4mm |
| Connection Type | M8x1 / Male / 3-pin / A-coded |
| Switching Output | PNP normally open (NO) |
| Rated Insulation Voltage | 75 VDC |
| Operating Voltage | 10 - 30 VDC |
| Mounting Type | Can be installed in T-slot from above |
| Rated Operating Current | 50 mA |
