Description

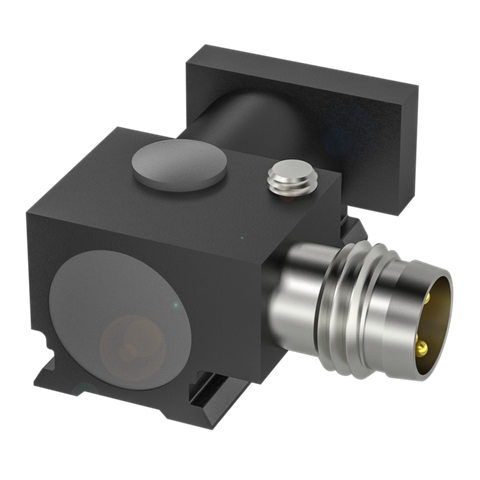

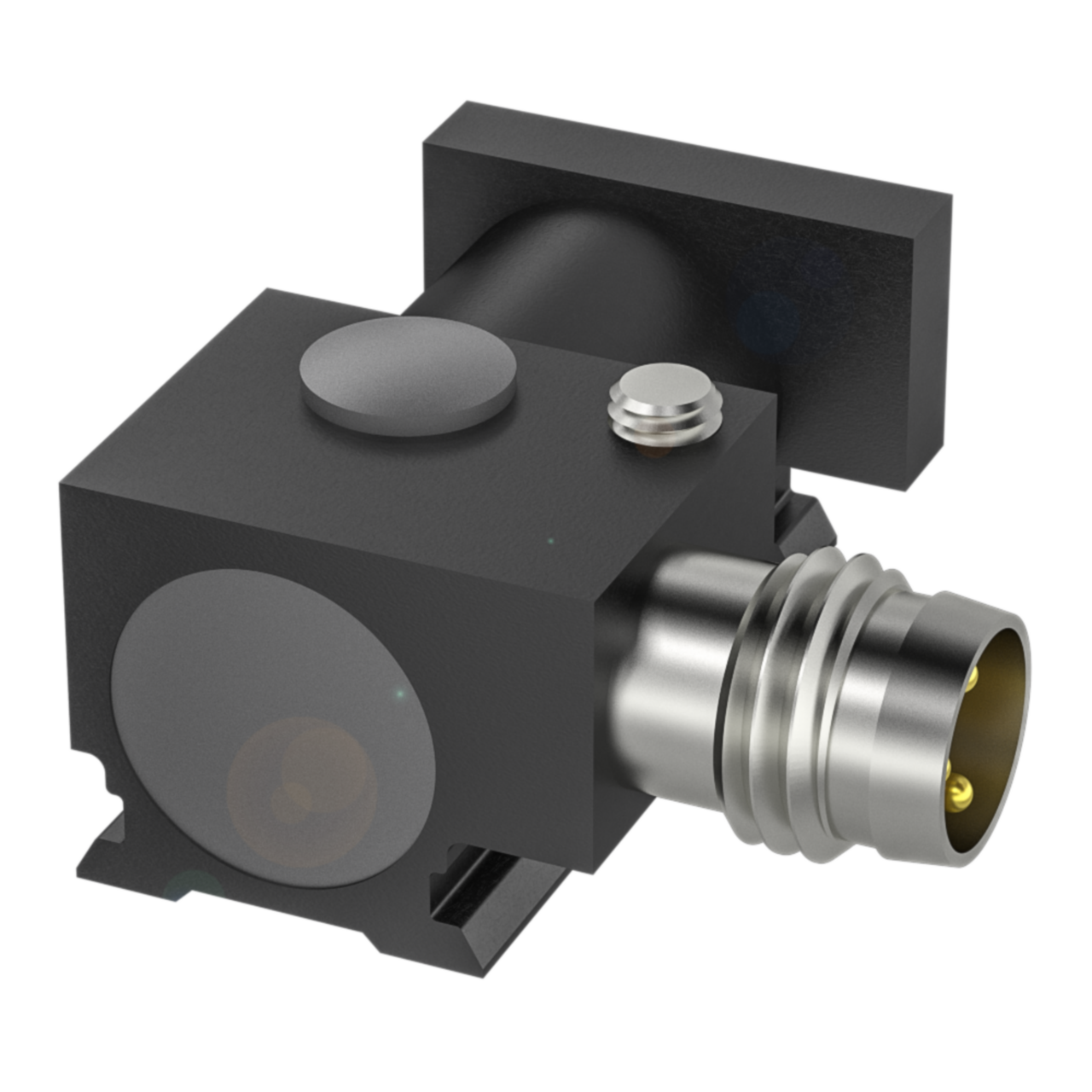

xThis magnetic field sensor detects the piston position in pneumatic cylinders fitted with a tube cuff mounting, providing a PNP normally open output for switching at operating voltages of 10 to 30 VDC. The aluminium housing and sensing surface carry an IP67 rating, suiting installations exposed to dust and moisture. Connection is made via an M8x1, 3-pin male connector, and the sensor supports switching frequencies up to 10000 Hz. It is typically used on pneumatic cylinders within automated machinery and panel-based control systems.
Key specifications
- IP rating: IP67
- Operating voltage: 10 - 30 VDC
- Rated voltage: 24 V
- Connection: M8x1 / Male / 3-pin
- Output: PNP normally open (NO)
- Mounting: With tube cuff
Specifications
x| IP Rating | IP67 |
| Compliance/Certifications | CE UKCA cULus WEEE / IEC 60947-5-2 |
| Material: Housing / Grip | Aluminium |
| Material: Sensing Surface / Contacts | Aluminium |
| Part Depth (mm) | 11.9mm |
| Part Width (mm) | 25mm |
| Part Height (mm) | 26mm |
| Connection Type | M8x1 / Male / 3-pin |
| Switching Output | PNP normally open (NO) |
| Switching Frequency (Hz) | 10000 Hz |
| Operating Voltage | 10 - 30 VDC |
| Rated Voltage | 24 V |
| Mounting Type | With tube cuff |
| Rated Operating Current | 200 mA |
