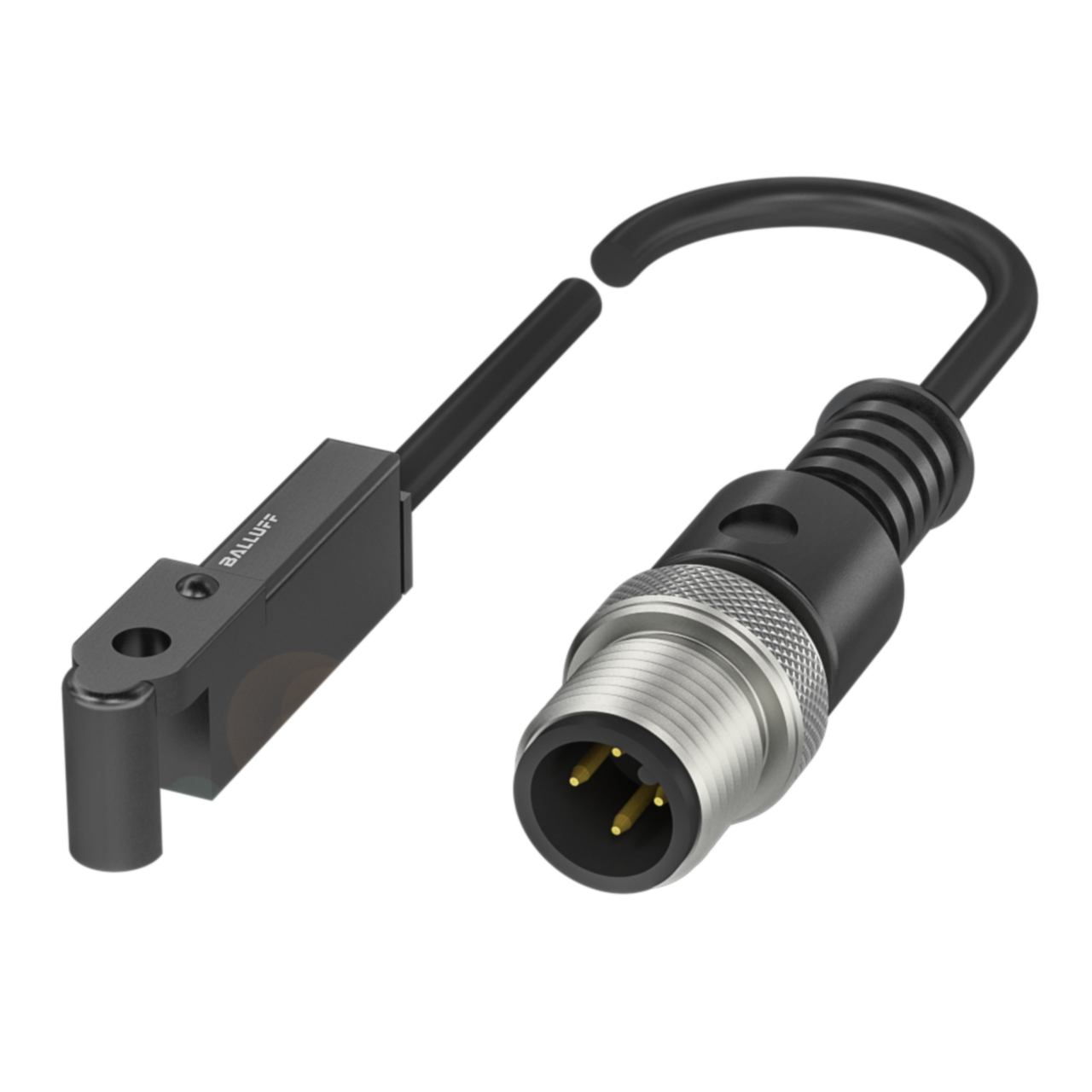

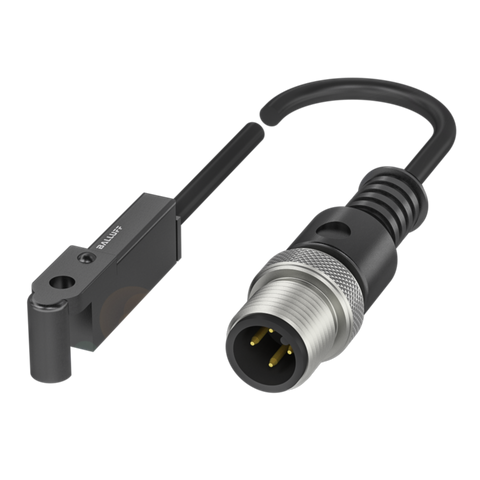

Balluff BMF 305K-PS-C-2-S4-00,2 Magnetic field sensor, PNP Part number BMF0058

This magnetic field sensor detects the position of a magnetic piston within a pneumatic cylinder and provides a PNP normally open output when triggered. It is housed in an LCP body with a PUR-jacketed cable terminating in an M12x1, 4-pin, A-coded male connector, rated IP67 for use in washdown or contaminated industrial environments. With a switching frequency of 10000 Hz and an operating voltage range of 10-30 VDC, it suits fast-cycling pneumatic actuator feedback applications on automated machinery and panels.

Key specifications

• IP rating: IP67
• Operating voltage: 10 - 30 VDC
• Rated voltage: 24 V
• Connection: M12x1 / Male / 4-pin / A-coded
• Output: PNP normally open (NO)
