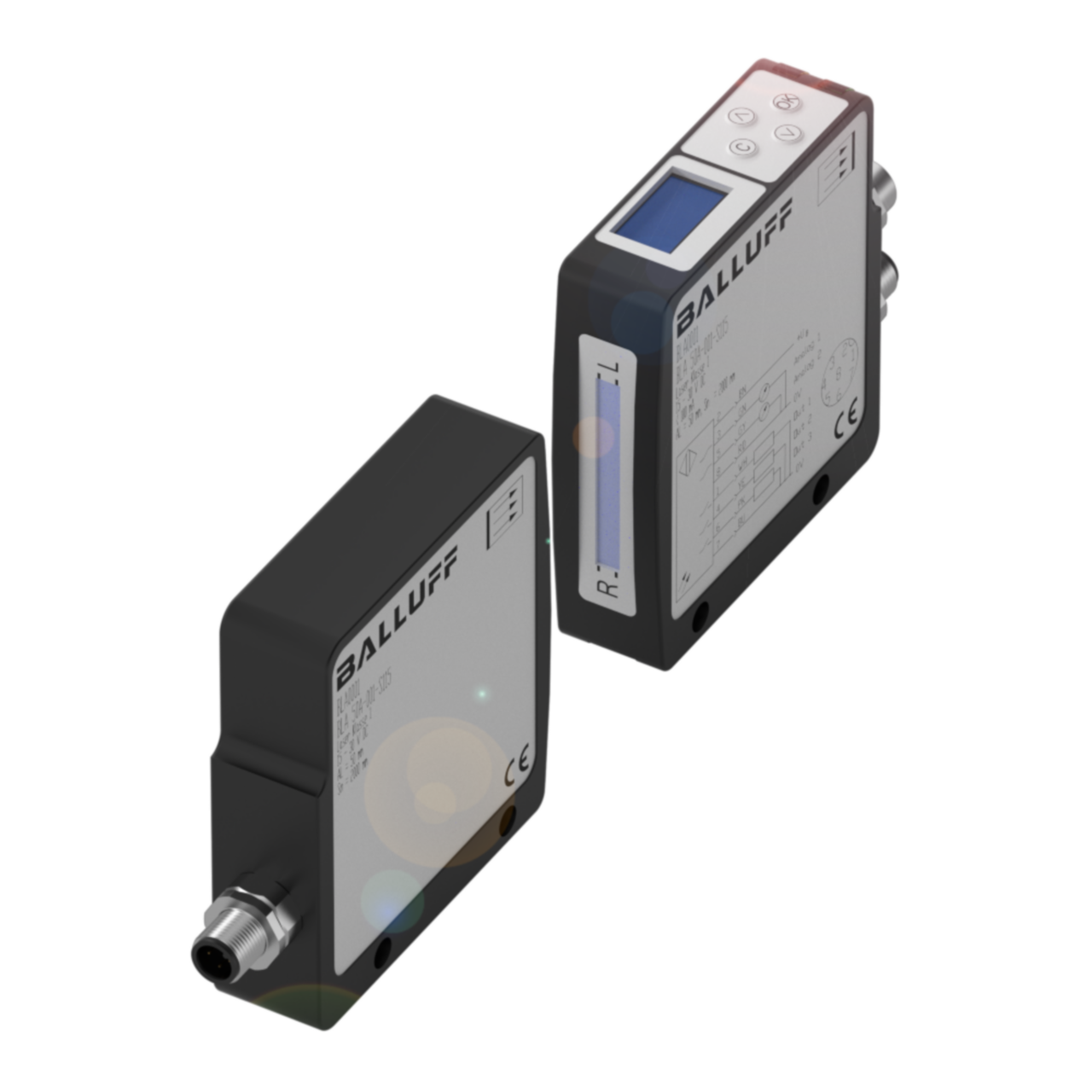

Balluff BLA 50A-001-S115 Light bands, 0 - 2m range Part number BLA0001

The BLA 50A-001-S115 is a light band sensor from Balluff with a rated operating distance of up to 2000mm, used for object detection over an extended range in industrial automation applications. It provides three PNP normally open switching outputs and operates on 15-30 VDC, with connections made via M12x1 male and female connectors. The housing is anodized aluminium with a glass sensing surface, and the unit carries an IP65 rating, making it suitable for use in panels and machine environments where protection against dust and water ingress is required.

Key specifications

• IP rating: IP65
• Operating voltage: 15 - 30 VDC
• Rated voltage: 24 V
• Output: 3x PNP normally open (NO)
