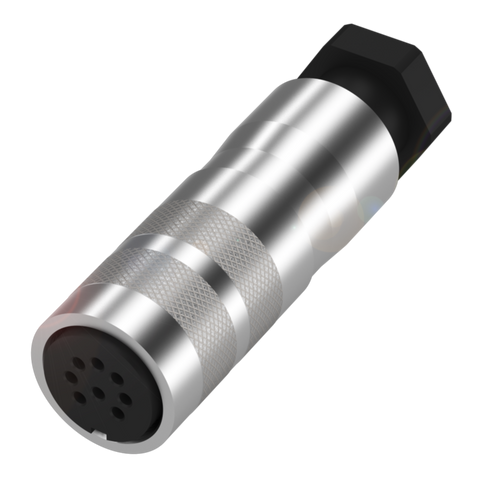

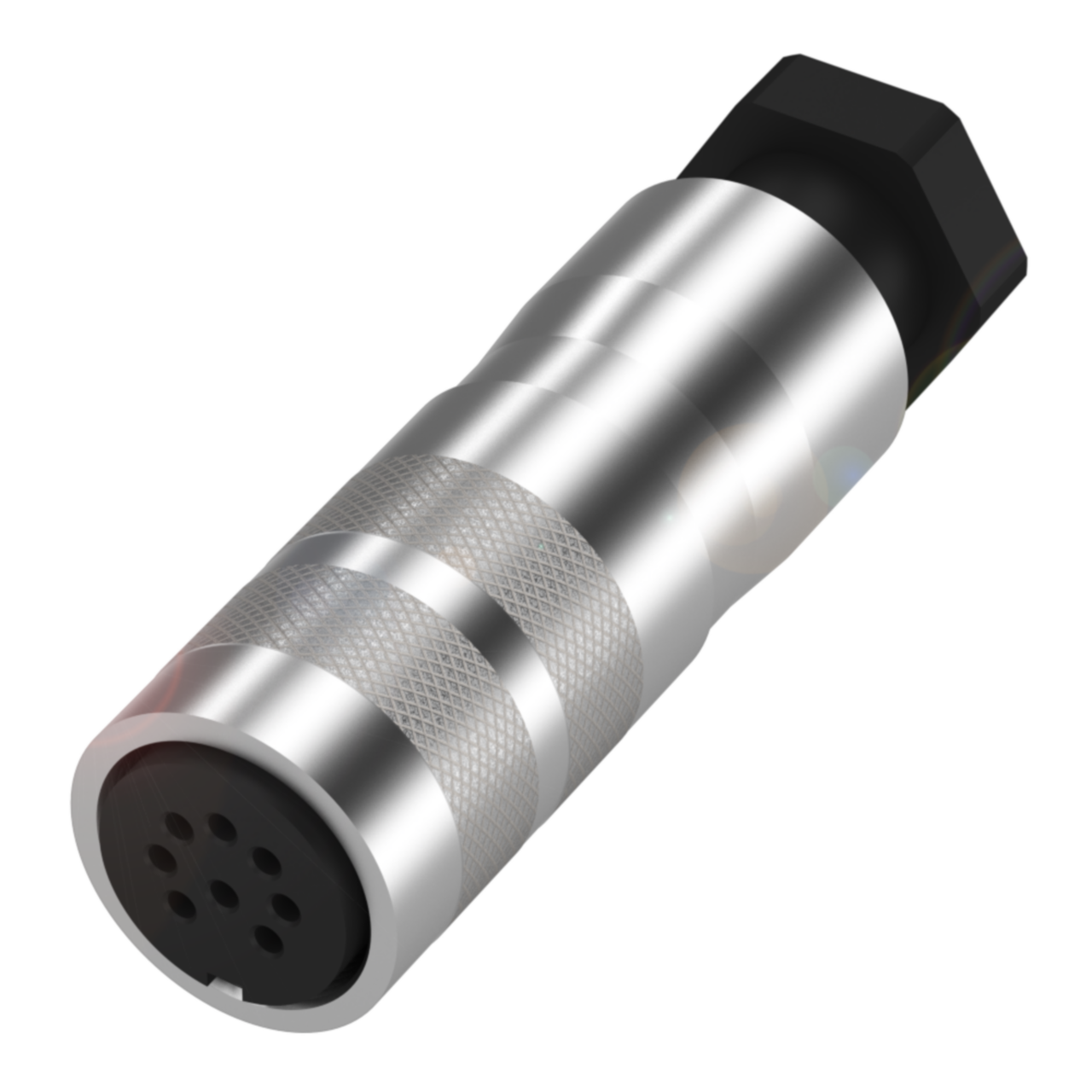

Balluff BKS-S 32M-00 Field attachable, female, M16 x 0.75 Part number BCC00TT

The BKS-S 32M-00 is a field attachable female M16 x 0.75 connector with a straight 8-pin configuration, designed for on-site cable termination in industrial automation systems. Its die-cast zinc housing, brass jacket and bronze contacts provide an IP67-rated connection suitable for cable diameters between 6mm and 8mm, accepting conductor cross sections from 0.14 to 0.75 mm². Rated at 60 VDC/VAC and 5.0 A, it is typically used for sensor and actuator wiring in panels and machine-mounted connections where a sealed, field-installable termination is required.

Key specifications

• IP rating: IP67
• Rated voltage: 60 VDC / 60 VAC
• Connection: M16x0.75 / Female / straight / 8-pin
