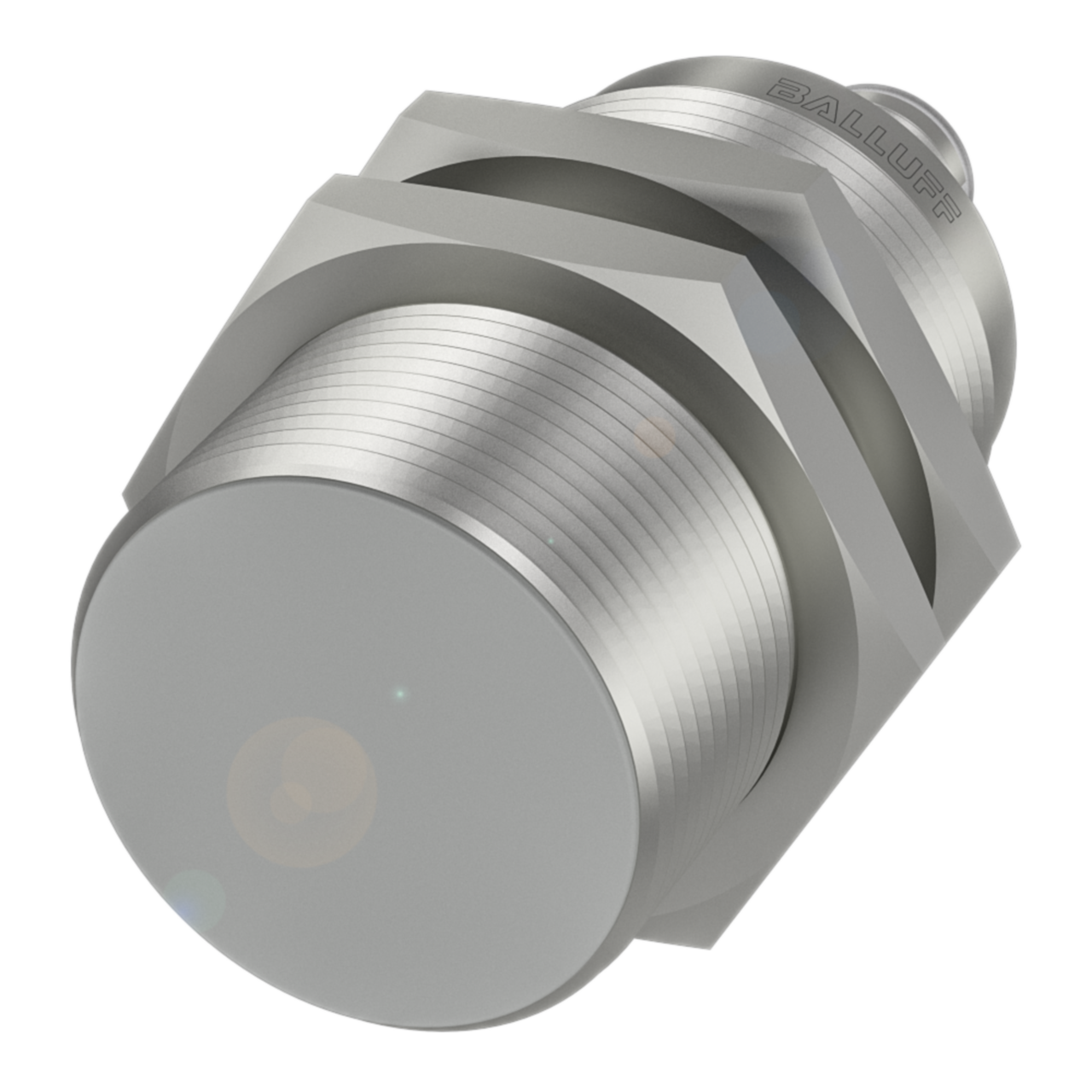

Balluff BIS M-4A7-082-401-07-S4 HF read/write heads, 13.56MHz Part number BIS01E7

This read/write head is part of Balluff's BIS M HF RFID system, operating at 13.56MHz to identify and exchange data with compatible data carriers in industrial tracking and process control applications. It communicates via IO-Link 1.1 and connects through an M12x1, 4-pin, A-coded male connector, operating on 18-30 VDC. The stainless steel housing and PBT/GF30 sensing surface, combined with an IP68/IP69K rating, suit installation in harsh or washdown environments typical of automated production lines.

Key specifications

• IP rating: IP68, IP69K
• Operating voltage: 18 - 30 VDC
• Connection: M12x1-Male / 4-pin / A-coded
