Description

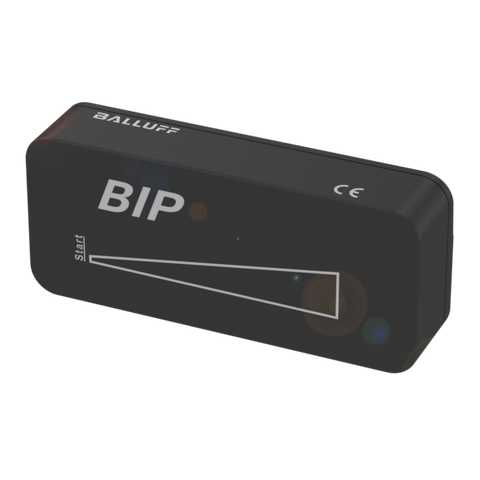

xThis inductive positioning system measures linear displacement over a range of 0 to 40 mm, providing position feedback without physical contact. Housed in a block-style PA enclosure with an M12x1, 3-pin male connector, it operates from 15 to 30 VDC and is rated IP67 for use in demanding industrial environments. The specified ambient temperature range of -25 to 85°C suits installation on machinery and panels exposed to varying conditions.
Key specifications
- IP rating: IP67
- Operating voltage: 15...30 VDC
- Connection: Connector, M12x1-Male, 3-pin
- Operating temperature: -25...85 °C
- Dimensions: 70 x 30 x 16 mm
- Material: PA
Specifications
x| dimension | 70 x 30 x 16 mm |
| style_housing | block style |
| range | 0...40 mm |
| housing_material | PA |
| connection | Connector, M12x1-Male, 3-pin |
| operating_voltage | 15...30 VDC |
| ambient_temperature | -25...85 °C |
| ip_rating | IP67 |
| approval_conformity | CEUKCAcURusWEEE |
