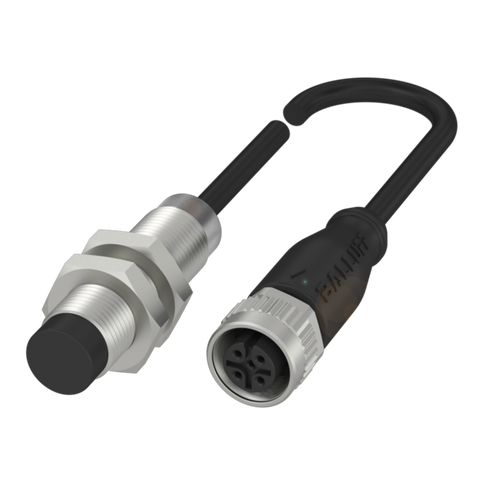

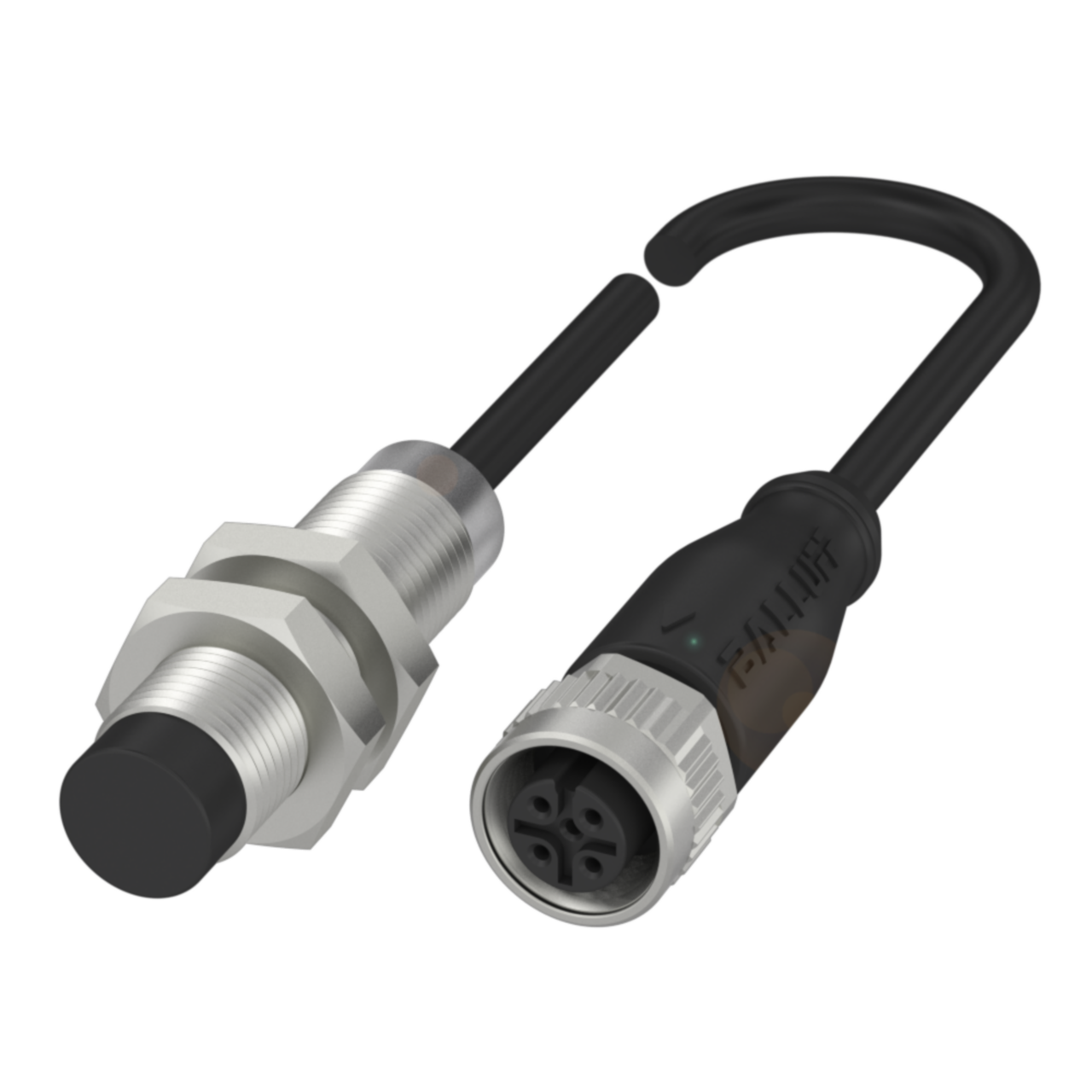

Balluff BIC 2I1-P2A05-M12MF-BPX0-003-M44A Inductive coupler Part number BIC0078

The BIC 2I1-P2A05-M12MF-BPX0-003-M44A is an inductive coupler from Balluff, providing non-contact connection for data or signal transfer via an M12x1, 5-pin interface with a 300mm pre-terminated cable. Housed in nickel-plated brass with a PUR jacket and rated IP67, it is suited to applications requiring wear-free connection in industrial environments where cable connectors are impractical. It operates at 24VDC with a rated current of 50mA and a switching frequency of 60Hz, and carries CE and WEEE compliance.

Key specifications

• IP rating: IP67
• Connection: M12x1 / 5-pin
• Bending radius: Bending radius min., fixed cable 5 x D / Bending radius min., flexible cable 10 x D
