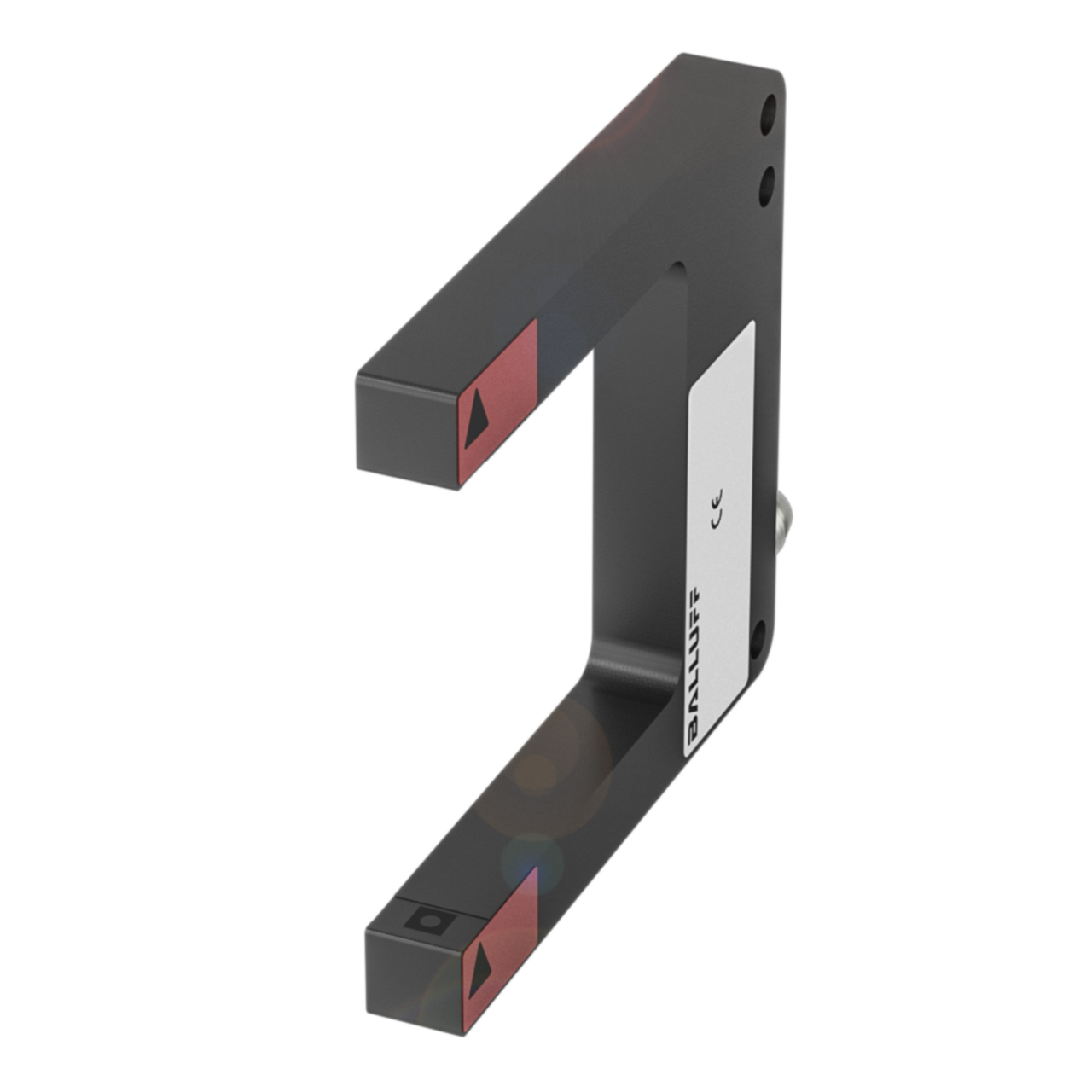

Balluff BGL 50A-001-S49 Fork sensor, PNP, 10 x 70 x 88mm
Balluff BGL 50A-001-S49 Fork sensor, PNP, 10 x 70 x 88mm

Balluff BGL 50A-001-S49 Fork sensor, PNP, 10 x 70 x 88mm

This fork-style photoelectric sensor is designed for precise object detection with a fork opening of 50 mm. It features PNP NO/NC switching outputs and is adjustable for light-on/dark-on operation. With a robust zinc die-cast housing and IP67 protection, it is suitable for high-precision applications in industrial automation.
Vendor: Balluff
SKU: BGL001J
Availability: In stock
Product type: Field Sensing & Connectivity
Please hurry! Only 1 left in stock
Ask an expert
Description
Description
x

This fork-style photoelectric sensor is designed for precise object detection with a fork opening of 50 mm. It features PNP NO/NC switching outputs and is adjustable for light-on/dark-on operation. With a robust zinc die-cast housing and IP67 protection, it is suitable for high-precision applications in industrial automation.

Specifications
Specifications
x
IP RatingIP67
Compliance/CertificationsCE UKCA cULus WEEE / IEC 60947-5-2
Material: Housing / GripZinc die-casting
Material: Sensing Surface / ContactsGlass
Connection TypeM12x1 / Male / 3-pin
Switching OutputPNP normally open/normally closed (NO/NC)
Switching Frequency (Hz)1500Hz
Rated Insulation Voltage75 VDC
Operating Voltage 10 - 30 VDC
Rated Voltage24 V
Mounting TypeScrew M4
Rated Operating Current200 mA
Documents
Documents
x
Download Datasheet
