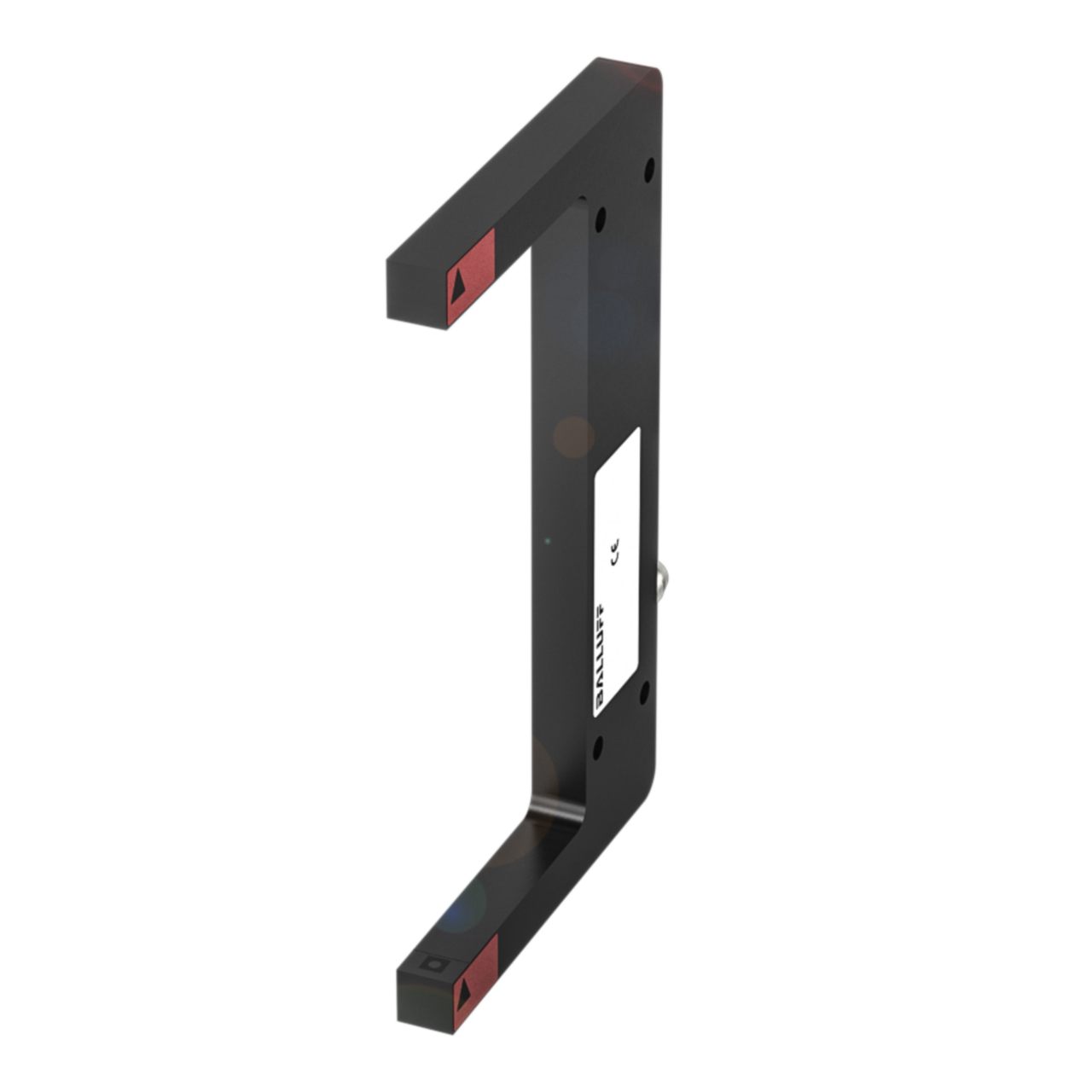

Balluff BGL 120A-001-S49 Fork sensor, 10 x 140 x 93mm Part number BGL0007

This fork sensor uses a fork-shaped housing with an integrated optical path to detect the presence or absence of small parts, labels, or material passing through the gap. The zinc die-cast body and glass sensing surface provide an IP67-rated construction suitable for flush mounting in panels or machine frames. It provides a PNP NO/NC switching output via an M12x1 3-pin male connector, operating from 10-30 VDC with a switching frequency of 1500 Hz, making it suitable for detection tasks in automated production and packaging equipment.

Key specifications

• IP rating: IP67
• Operating voltage: 10 - 30 VDC
• Rated voltage: 24 V
• Connection: M12x1 / Male / 3-pin
• Output: PNP normally open/normally closed (NO/NC)
• Mounting: Flush mounting
