Description

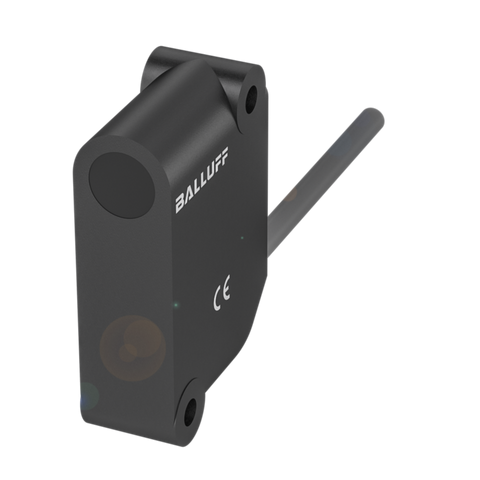

xThe BES R05KB-PSC40B-EV02 is an inductive standard sensor with a PNP normally open output, detecting targets at a rated operating distance of 4mm. It operates from 10-30 VDC, switches at up to 400 Hz, and is rated IP67 for use in demanding industrial environments. The housing and sensing surface are PA 12 with a PVC cable jacket, and its flush-mounting design suits installation in automation panels and machine assemblies where space around the sensor face is limited.
Key specifications
- IP rating: IP67
- Operating voltage: 10 - 30 VDC
- Rated voltage: 24 V
- Output: PNP normally open (NO)
- Mounting: Flush mounting
Specifications
x| IP Rating | IP67 |
| Compliance/Certifications | CE UKCA cULus WEEE / IEC 60947-5-2 |
| Material: Housing / Grip | PA 12 |
| Material: Jacket / Cover Nut | PVC |
| Material: Sensing Surface / Contacts | PA 12 |
| Cable Length (mm) | 2 000mm |
| Cable Diameter (mm) | 4.6mm |
| Conductor Cross-section | 0.34 mm² |
| Connection Style | Cable, 2.00 m, PVC |
| Tightening Torque | 0.25 Nm |
| Rated Operating Distance (mm) | 4mm |
| Switching Output | PNP normally open (NO) |
| Switching Frequency (Hz) | 400 Hz |
| Rated Insulation Voltage | 250 VAC |
| Operating Voltage | 10 - 30 VDC |
| Rated Voltage | 24 V |
| Mounting Type | Flush mounting |
| Rated Operating Current | 200 mA |
