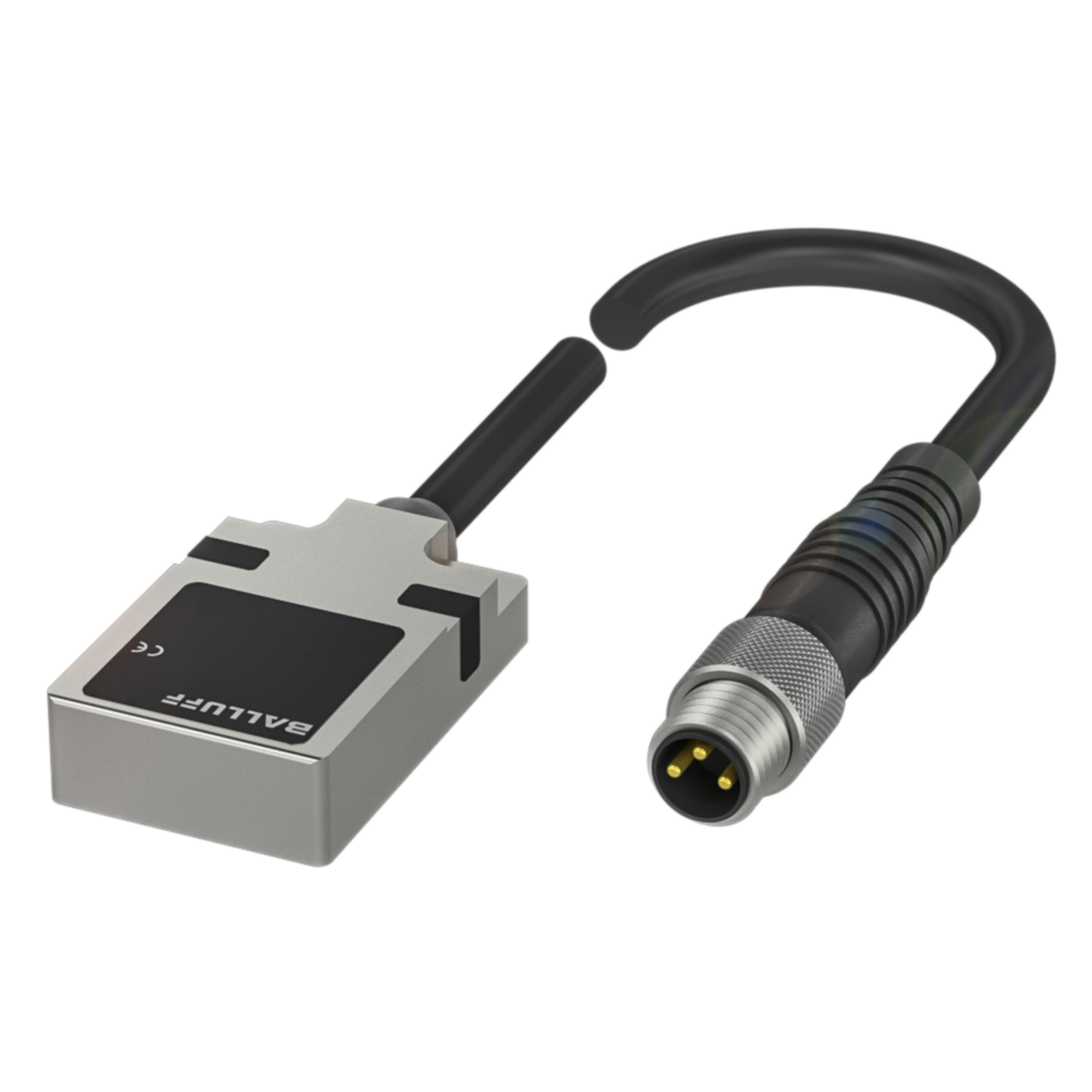

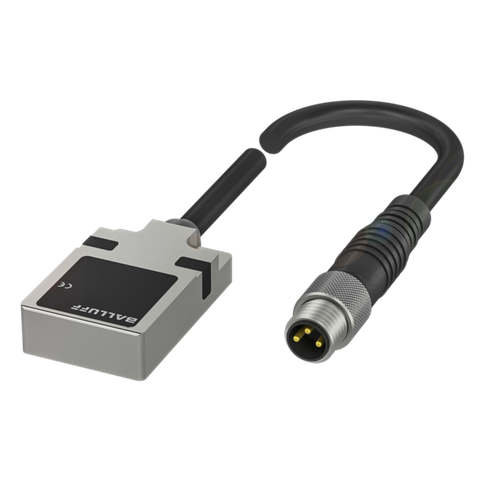

Balluff BES R01ZC-PSC70B-BP00.3-GS49 Inductive sensor, PNP, NO Part number BES01WF

This inductive sensor from Balluff detects the presence of metal targets without physical contact, producing a PNP normally open switching signal at a rated operating distance of 7mm. It is designed for flush mounting and features a zinc die-cast housing with a PA 12 sensing face and PUR cable jacket, giving an IP67 rating suited to industrial panel and machine environments. Connection is made via an M8x1 three-pin male connector on a 300mm cable, and the sensor operates from a 10-30 VDC supply with a 200 mA current rating and a switching frequency of 150Hz.

Key specifications

• IP rating: IP67
• Operating voltage: 10 - 30 VDC
• Rated voltage: 75 VDC
• Connection: M8x1 / Male / 3-pin
• Output: PNP normally open (NO)
• Mounting: Flush mounting
