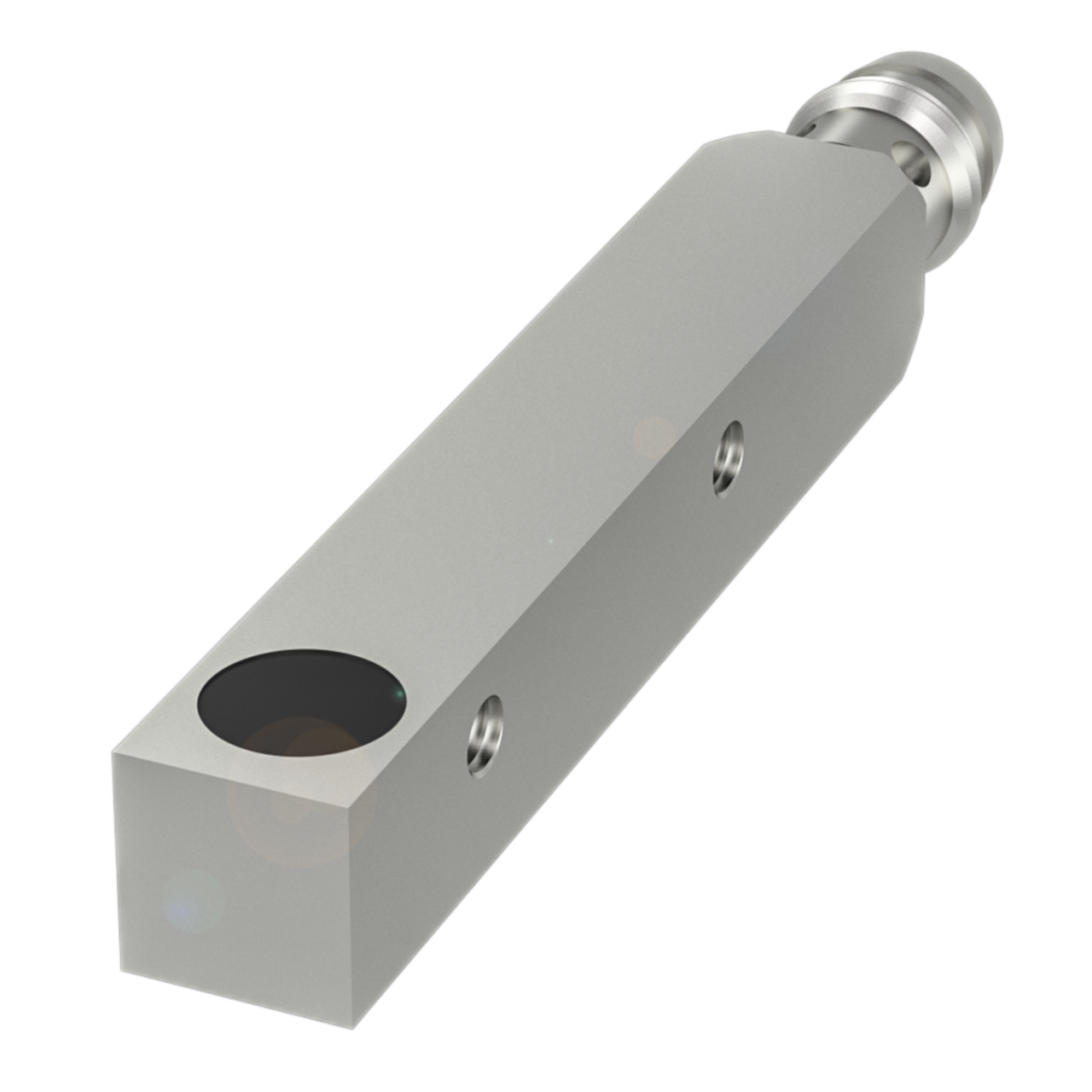

Balluff BES Q08ZC-PSC30B-S49G Inductive sensor, PNP, NO Part number BES01U4

The BES Q08ZC-PSC30B-S49G is an inductive proximity sensor with a PNP normally closed output, designed for flush mounting in compact installation spaces given its 8x8 size. It has a rated operating distance of 3mm and connects via an M12x1 three-pin male connector, operating on 10-30 VDC. The housing is zinc die-cast with a PBT sensing surface, and the IP67 rating suits use in industrial automation environments such as machine and panel applications where dirt or moisture ingress is a concern.

Key specifications

• IP rating: IP67
• Operating voltage: 10 - 30 VDC
• Rated voltage: 24 V
• Connection: M12x1 / Male / 3-pin
• Output: PNP normally closed (NC)
• Mounting: Flush mounting
