Description

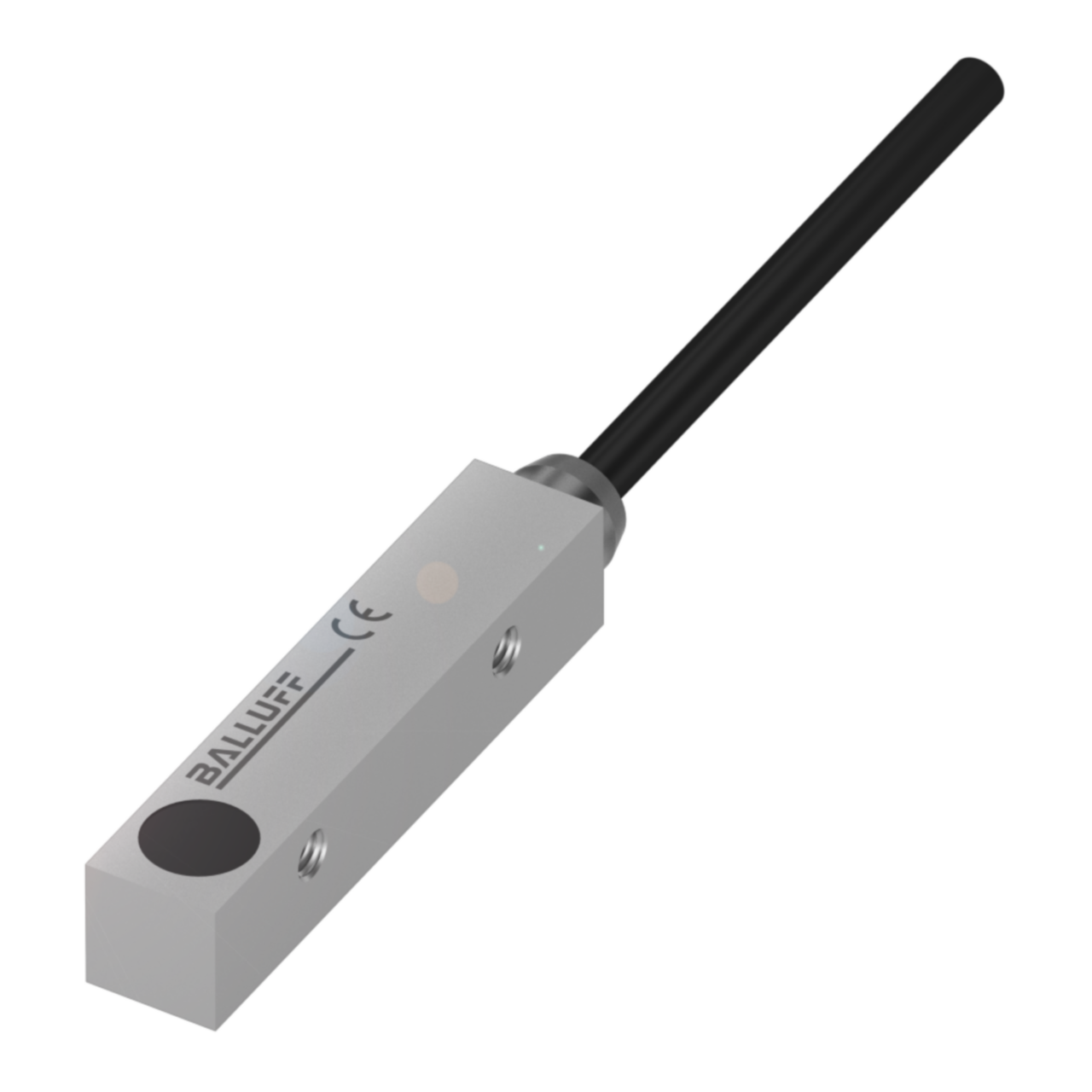

xThe Balluff BES Q08ZC-POC20B-BP02 is an inductive sensor. It operates from 10 - 30 VDC. The housing is rated IP67. Approvals: CE, UKCA, cULus, WEEE.
Key specifications
- IP rating: IP67
- Operating voltage: 10 - 30 VDC
- Rated voltage: 24 V
- Output: PNP normally closed (NC)
Specifications
x| IP Rating | IP67 |
| Compliance/Certifications | cULus CE WEEE UKCA / IEC 60947-5-2 |
| Material: Housing / Grip | Zinc die-casting |
| Material: Jacket / Cover Nut | PUR |
| Material: Sensing Surface / Contacts | PBT |
| Size | 8x8 |
| Cable Length (mm) | 2 000mm |
| Cable Diameter (mm) | 3mm |
| Conductor Cross-section | 0.14 mm² |
| Connection Style | Cable, 2.00 m, PUR |
| Rated Operating Distance (mm) | 2mm |
| Switching Output | PNP normally closed (NC) |
| Switching Frequency (Hz) | 3000 Hz |
| Rated Insulation Voltage | 75 VDC |
| Operating Voltage | 10 - 30 VDC |
| Rated Voltage | 24 V |
| Rated Operating Current | 200 mA |
