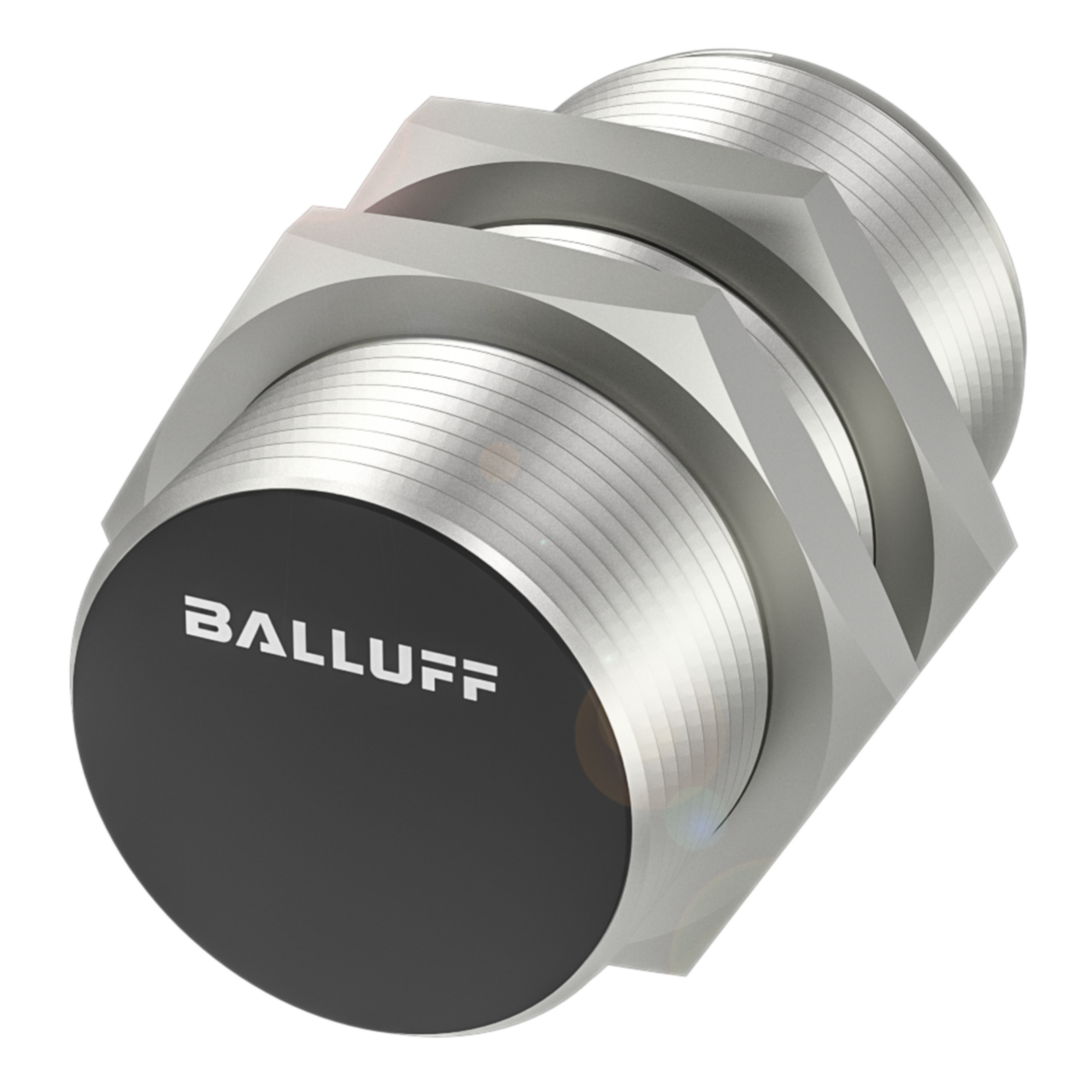

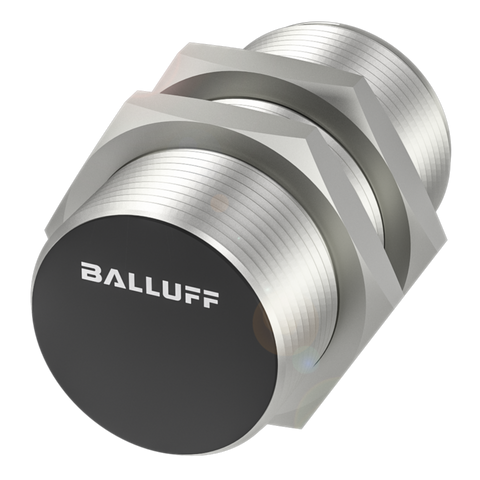

Balluff BES M30MI-POC15B-S04G Inductive sensor, PNP, NC Part number BES03RK

The BES M30MI-POC15B-S04G is an inductive proximity sensor with an M30x1.5 housing in brass with a nickel-free coating, giving a rated operating distance of 15mm and a PNP normally closed output. It operates from 10-30 VDC, switches at up to 100Hz, and connects via an M12x1, 4-pin, A-coded male connector, suiting flush mounting in panels and machine bases. The design is intended for detecting metal targets in automation applications where a compact, flush-mountable inductive sensor is required.

Key specifications

• Operating voltage: 10 - 30 VDC
• Rated voltage: 24 V
• Connection: M12x1 / Male / 4-pin / A-coded
• Output: PNP normally closed (NC)
• Mounting: Flush mounting
