Description

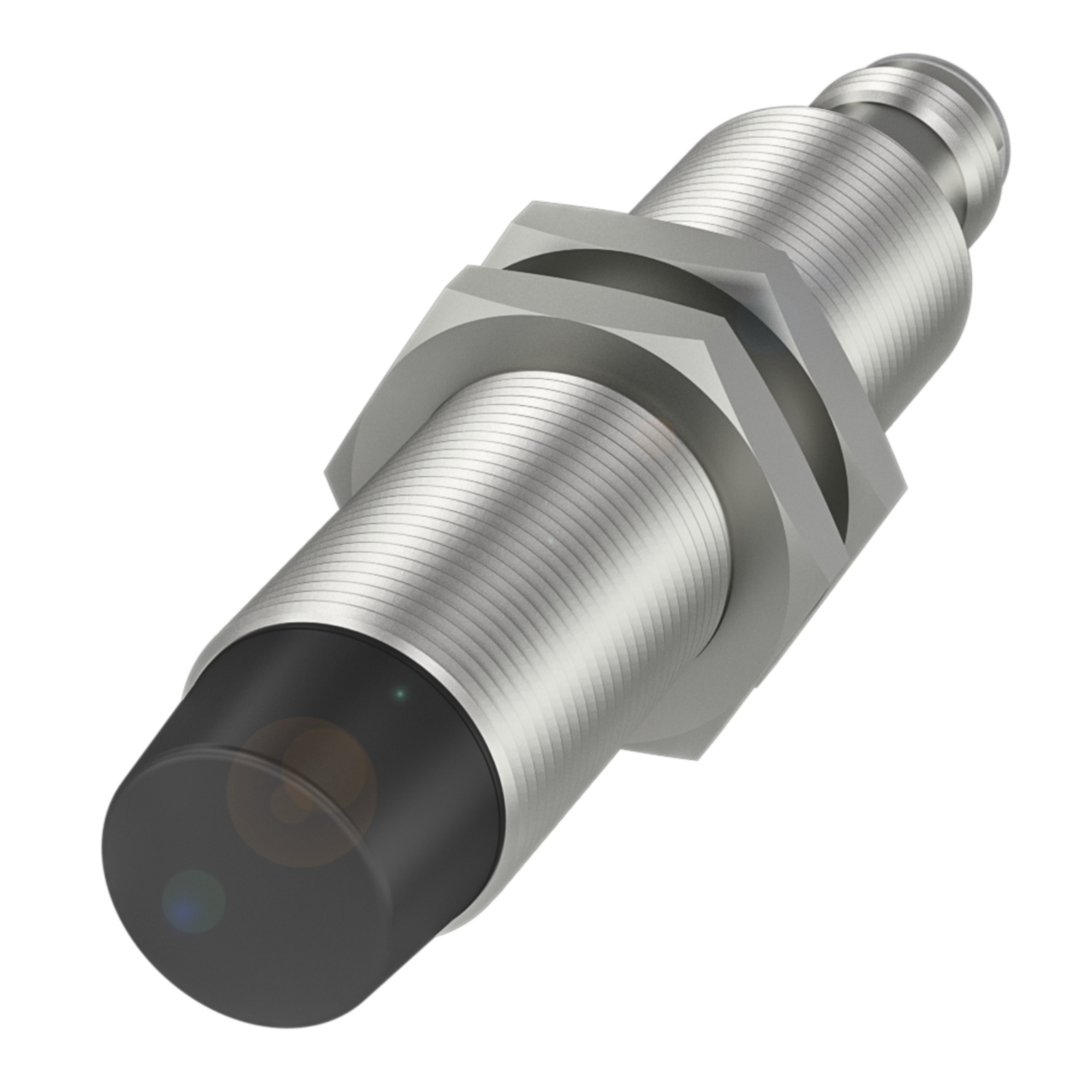

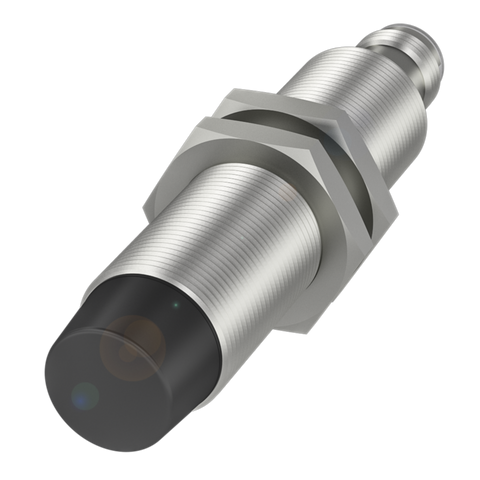

xThis is an M18 inductive proximity sensor with a PNP normally open output, designed for non-flush mounting in automation panels and machine applications. It detects metallic targets at a rated operating distance of 8mm and operates from a 10-30 VDC supply, switching at up to 600 Hz. The brass housing and IP68 rating suit use in washdown or contaminated industrial environments, with an M12x1 male connector for field wiring.
Key specifications
- IP rating: IP68
- Operating voltage: 10 - 30 VDC
- Rated voltage: 24 V
- Connection: M12x1 / Male / 3-pin / A-coded
- Output: PNP normally open (NO)
- Mounting: Non-flush mounting
Specifications
x| IP Rating | IP68 |
| Compliance/Certifications | cULus CE UKCA WEEE / IEC 60947-5-2 |
| Material: Housing / Grip | Brass / Nickel-free coated |
| Material: Sensing Surface / Contacts | PBT |
| Part Length (mm) | 86mm |
| Part Diameter (mm) | 18mm |
| Connection Type | M12x1 / Male / 3-pin / A-coded |
| Tightening Torque | 25 Nm |
| Rated Operating Distance (mm) | 8mm |
| Switching Output | PNP normally open (NO) |
| Switching Frequency (Hz) | 600 Hz |
| Rated Insulation Voltage | 250 VAC |
| Operating Voltage | 10 - 30 VDC |
| Rated Voltage | 24 V |
| Mounting Type | Non-flush mounting |
| Rated Operating Current | 200 mA |
