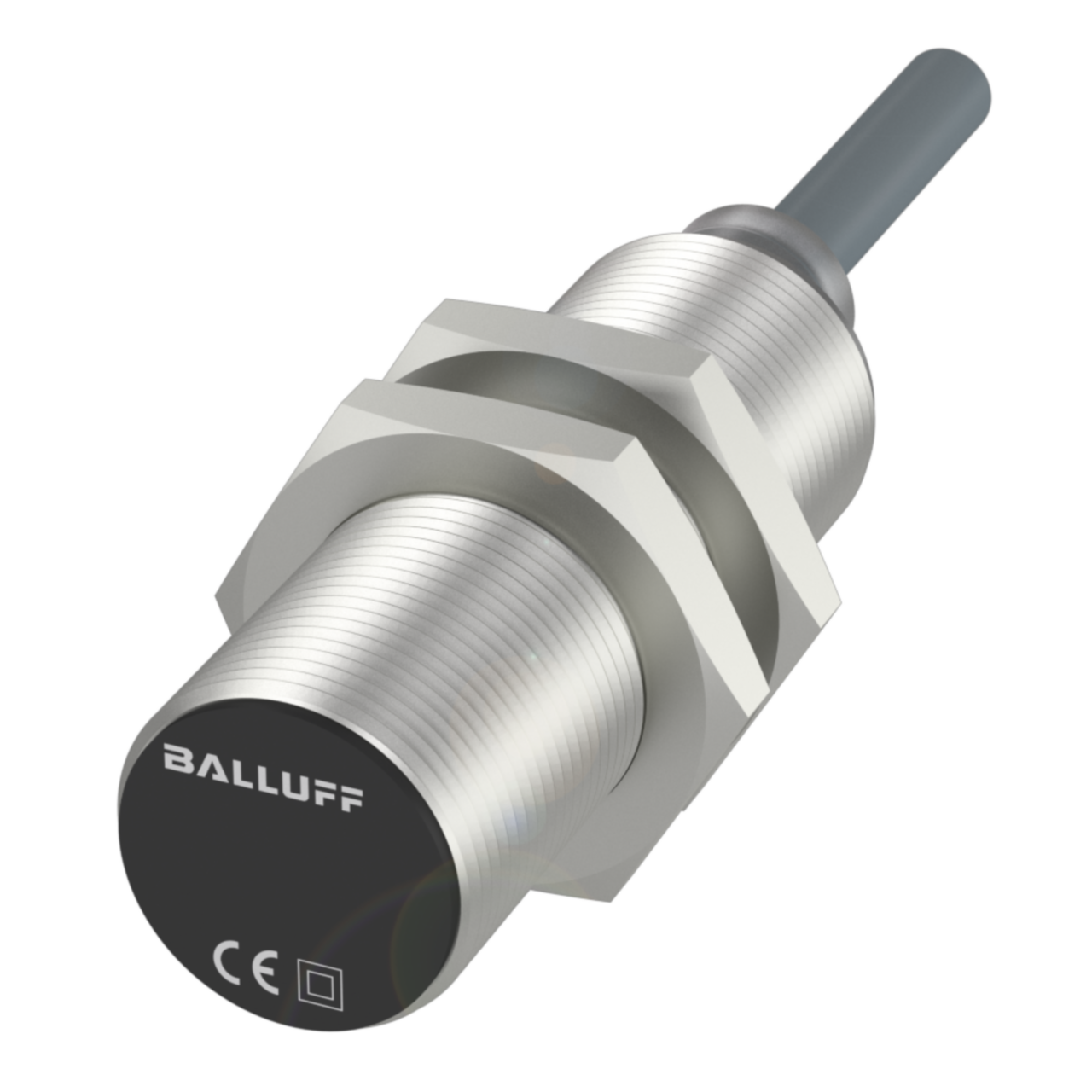

Balluff BES M18MI-PSC80B-BV03 Inductive sensor, PNP, NO Part number BES008F

The BES M18MI-PSC80B-BV03 is an M18 inductive proximity sensor with a PNP normally open output, designed for flush mounting in metal panels or machine bases. It has a rated operating distance of 8 mm, an IP68 housing in nickel-free coated brass with a PVC jacket and PBT sensing face, and is fitted with a 3.00 m PVC cable for direct wiring into control circuits. Operating from 10-30 VDC with a switching frequency of 1300 Hz, it suits position and object detection tasks in industrial automation equipment.

Key specifications

• IP rating: IP68
• Operating voltage: 10 - 30 VDC
• Rated voltage: 24 V
• Output: PNP normally open (NO)
• Mounting: Flush mounting
