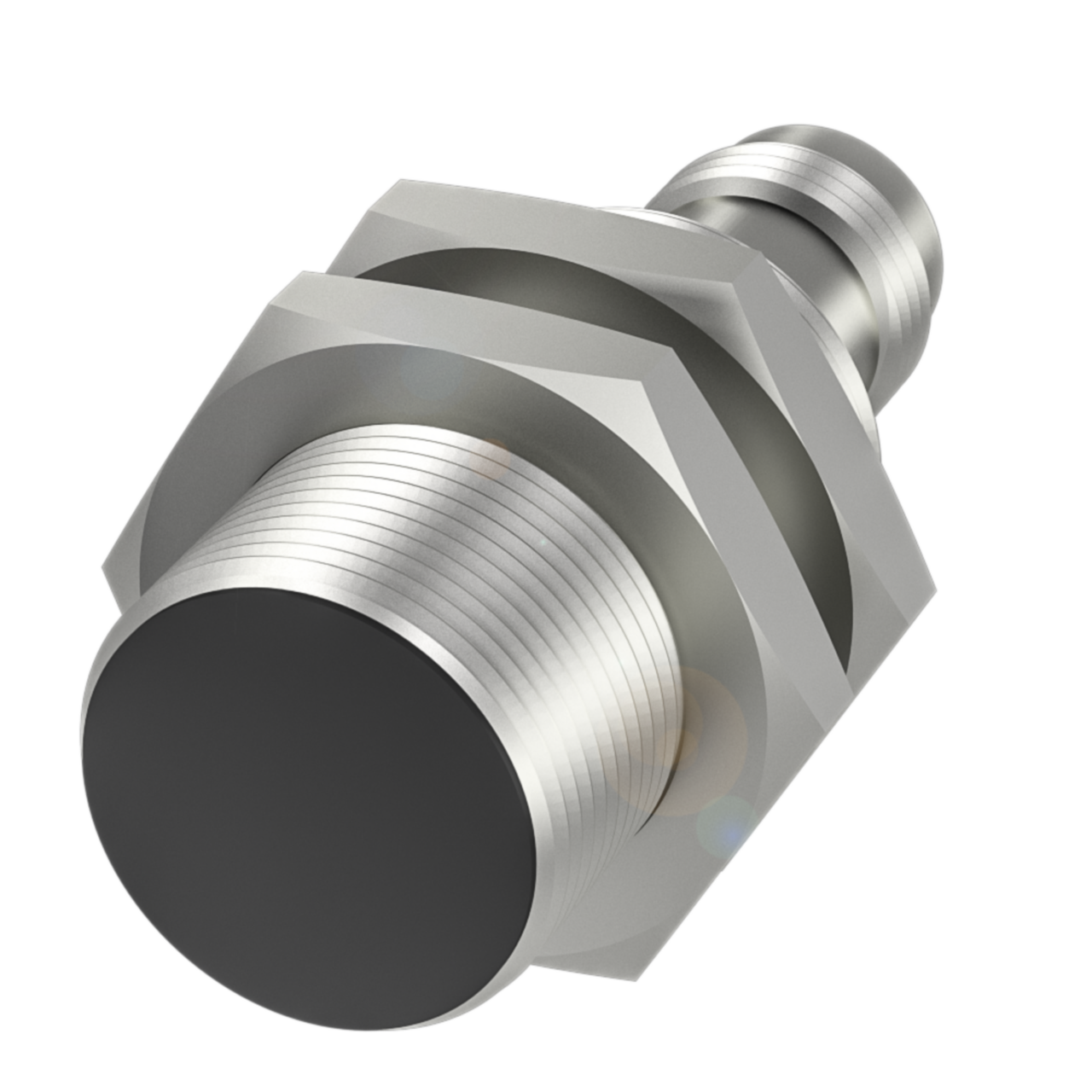

Balluff BES M18ME-PSC80B-S04G Inductive sensor, PNP, NO Part number BES04R3

This M18x1 inductive sensor detects metal targets at a rated operating distance of 8.0mm, providing a PNP normally open output for switching signals into a PLC or control circuit. Its brass housing with nickel-free coating and IP68 rating suit installations exposed to washdown or contaminated industrial environments. Connection is via an M12x1, 3-pin, A-coded male connector, and the unit operates from a 10-30 VDC supply, making it suitable for standard automation panel and machine-level field sensing applications.

Key specifications

• IP rating: IP68
• Operating voltage: 10 - 30 VDC
• Rated voltage: 24 V
• Connection: M12x1 / Male / 3-pin / A-coded
• Output: PNP normally open (NO)
