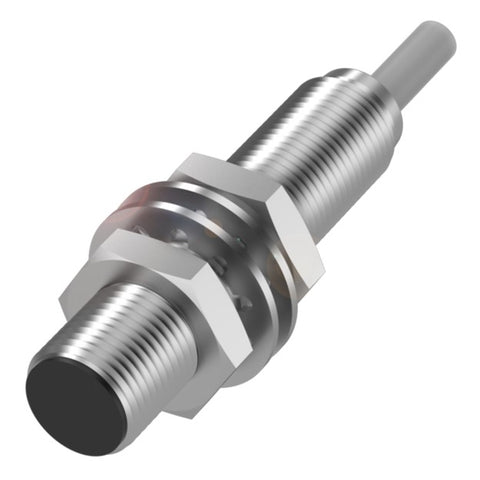

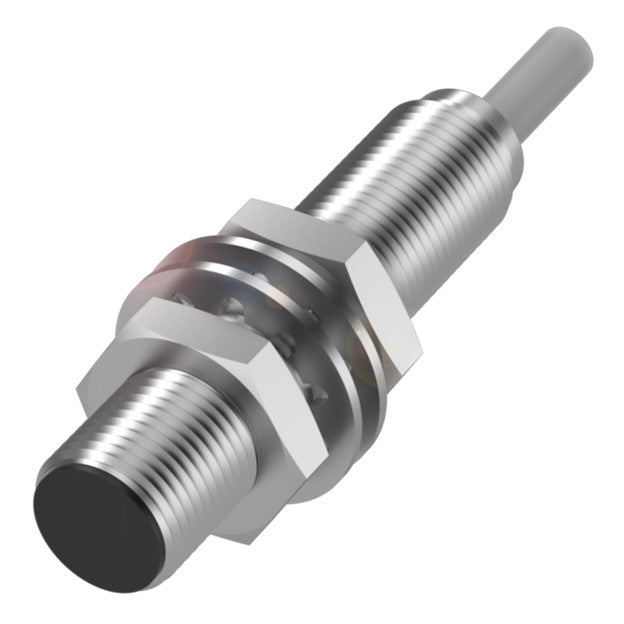

Balluff BES M12MI-POC40B-BV03 Inductive sensor, PNP, NC Part number BES005M

The BES M12MI-POC40B-BV03 is an inductive proximity sensor with a 12 mm barrel and PNP switching output, designed for flush mounting in industrial automation applications. It has a rated operating distance of 4 mm and an IP68 housing rated for use in wet or washdown environments. The brass housing and PBT sensing face suit installation on machinery and panels where reliable non-contact position or presence detection is required, with a 3 metre cable for direct connection to control circuits.

Key specifications

• IP rating: IP68
• Operating voltage: 10 - 30 VDC
• Rated voltage: 24 V
• Output: PNP normally open (NO)
• Mounting: Flush mounting
