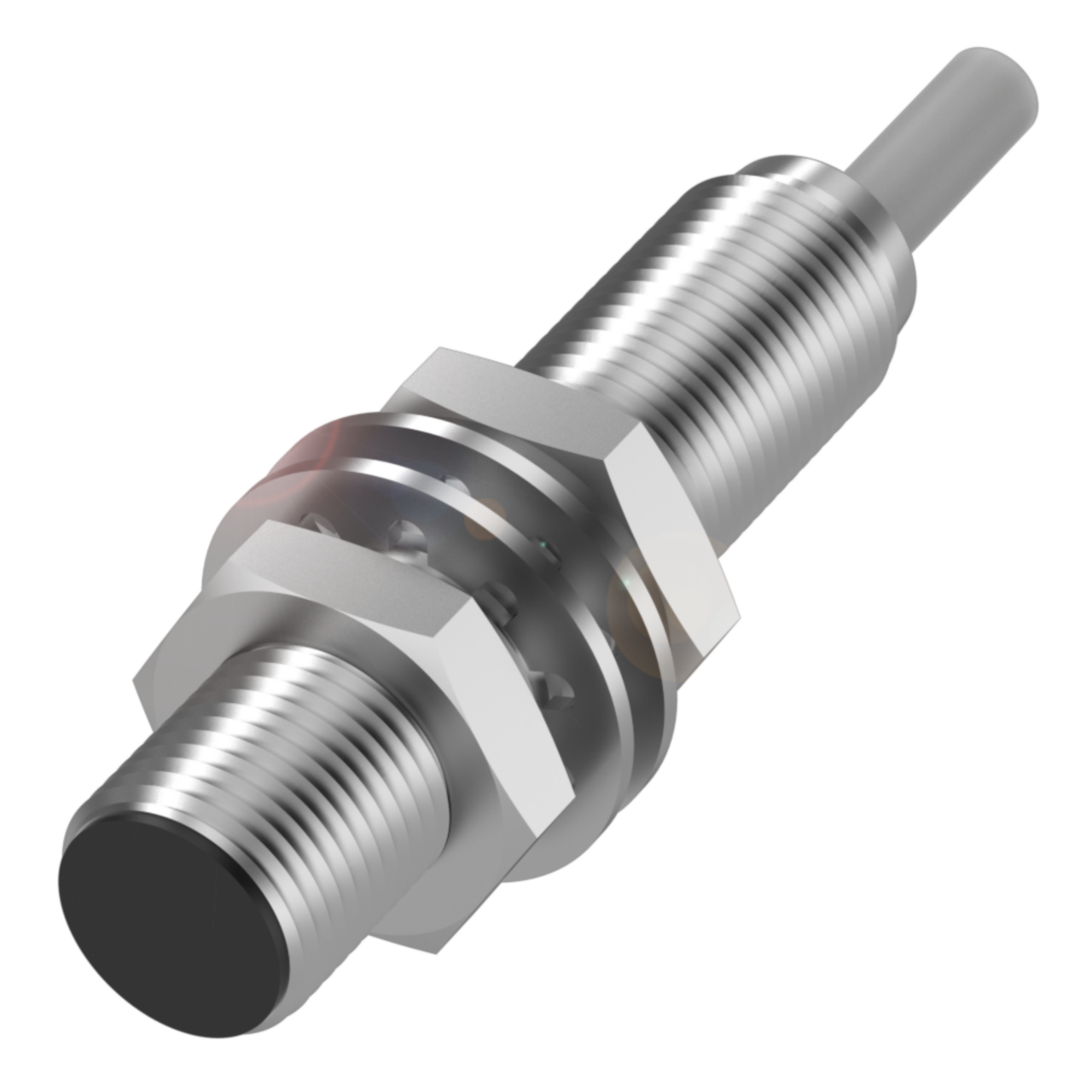

Balluff BES M12MI-NSC40B-BV05 Inductive sensor, NPN, NO Part number BES0058

This M12x1 inductive sensor detects metallic targets and provides an NPN normally open switching output, operating on a supply of 10-30 VDC. Its housing and grip are brass with a nickel-free coating, with a PVC jacket/cover nut and PBT sensing surface, and it carries an IP68 rating for use in demanding industrial environments. The sensor is suited to automation panels and machinery requiring compact, threaded proximity detection, with a rated operating current of 200 mA and a switching frequency of 2500 Hz.

Key specifications

• IP rating: IP68
• Operating voltage: 10 - 30 VDC
• Rated voltage: 24 V
• Output: NPN normally open (NO)
