Description

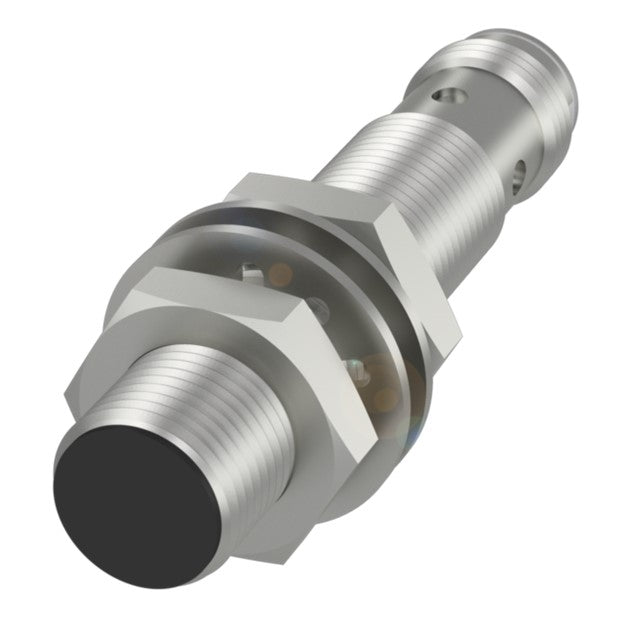

xThis is an M12 inductive proximity sensor with a PNP normally closed output, offering a rated operating distance of 6mm and quasi-flush mounting. The housing is brass with a nickel-free coating and a PBT jacket, rated IP68, and it connects via an M12x1, 3-pin, A-coded male connector. It operates from 10-30 VDC, supports a switching frequency of 1000 Hz, and is suited to panel and machine-mounted position or object detection tasks where quasi-flush installation is required.
Key specifications
- IP rating: IP68, according to BWN Pr 20
- Operating voltage: 10 - 30 VDC
- Rated voltage: 24 V
- Connection: M12x1 / Male / 3-pin / A-coded
- Output: PNP normally closed (NC)
- Mounting: Quasi-flush mounting
Specifications
x| IP Rating | IP68, according to BWN Pr 20 |
| Compliance/Certifications | CE cULus WEEE / IEC 60947-5-2 |
| Material: Housing / Grip | Brass / Nickel-free coated |
| Material: Jacket / Cover Nut | PBT |
| Part Length (mm) | 60mm |
| Part Diameter (mm) | 12mm |
| Connection Type | M12x1 / Male / 3-pin / A-coded |
| Tightening Torque | 10 Nm |
| Rated Operating Distance (mm) | 6mm |
| Switching Output | PNP normally closed (NC) |
| Switching Frequency (Hz) | 1000 Hz |
| Rated Insulation Voltage | 250 VAC |
| Operating Voltage | 10 - 30 VDC |
| Rated Voltage | 24 V |
| Mounting Type | Quasi-flush mounting |
| Rated Operating Current | 200 mA |
