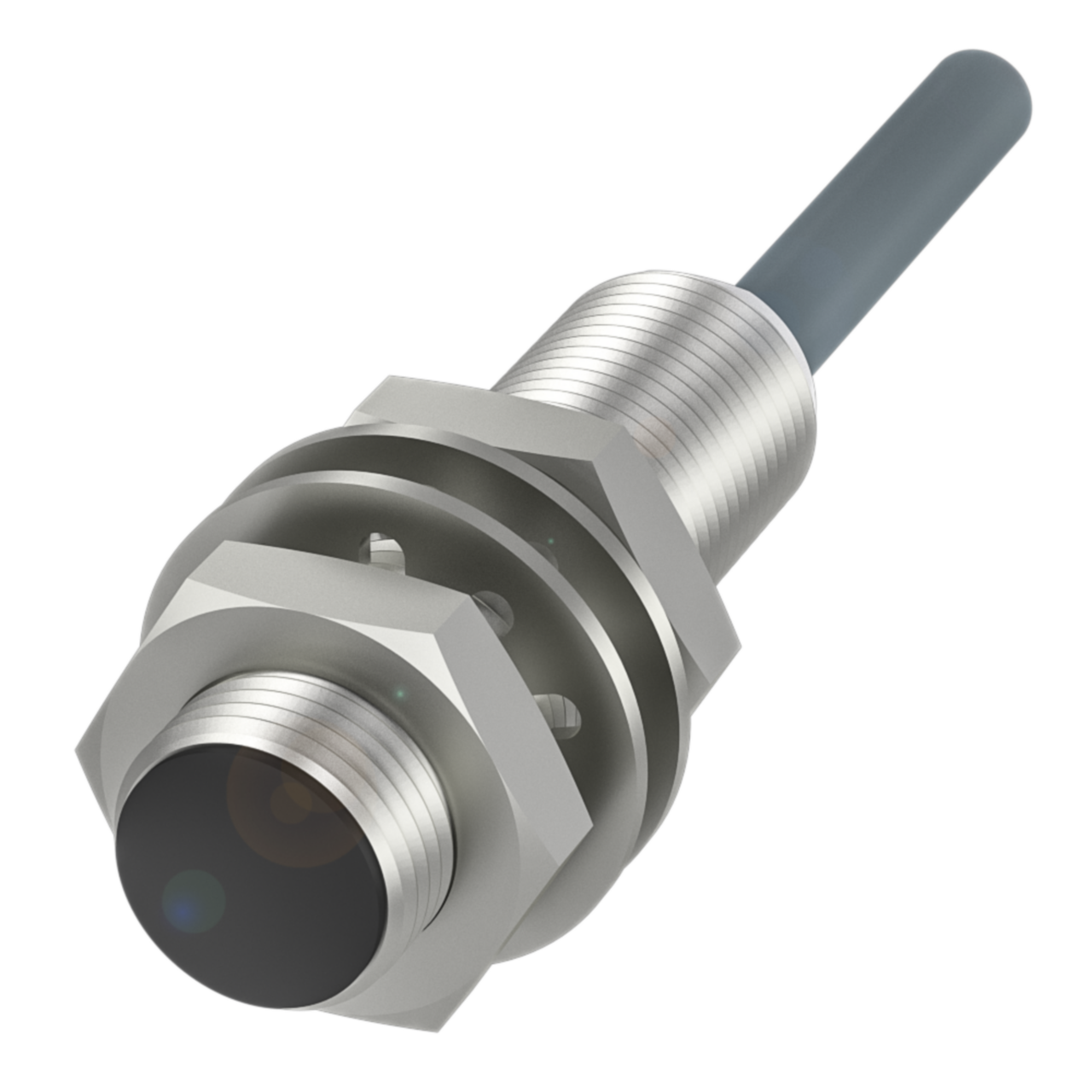

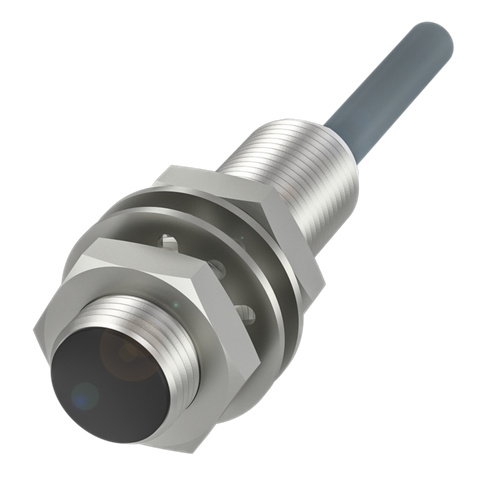

Balluff BES M12MG-UOC30B-BV03 Inductive sensor, flush, NC, M12
Balluff BES M12MG-UOC30B-BV03 Inductive sensor, flush, NC, M12

Balluff BES M12MG-UOC30B-BV03 Inductive sensor, flush, NC, M12 Part number BES03HM

The Balluff BES M12MG-UOC30B-BV03 is an inductive sensor. It operates from 10 - 36 VDC. The housing is rated IP67. Approvals: CE, UKCA, cULus, WEEE.Key specifications IP rating: IP67 Operating voltage: 10 - 36 VDC Rated voltage: 24 V Output: Non-polarized normally closed (NC)
Vendor: Balluff
Availability: In stock
Product type: Field Sensing & Connectivity
Please hurry! Only 2 left in stock
Description
Description
x

The Balluff BES M12MG-UOC30B-BV03 is an inductive sensor. It operates from 10 - 36 VDC. The housing is rated IP67. Approvals: CE, UKCA, cULus, WEEE.

Key specifications

  • IP rating: IP67
  • Operating voltage: 10 - 36 VDC
  • Rated voltage: 24 V
  • Output: Non-polarized normally closed (NC)
Specifications
Specifications
x
IP RatingIP67
Compliance/CertificationsCE UKCA cULus WEEE / IEC 60947-5-2
Material: Housing / GripBrass / Nickel-free coated
Material: Jacket / Cover NutPVC
Material: Sensing Surface / ContactsPA 12
SizeM12x1
Cable Length (mm)3 000mm
Cable Diameter (mm)4.60mm
Conductor Cross-section0.34 mm²
Tightening Torque15 Nm
Rated Operating Distance (mm)3mm
Switching OutputNon-polarized normally closed (NC)
Switching Frequency (Hz)1300 Hz
Rated Insulation Voltage75 VDC
Operating Voltage 10 - 36 VDC
Rated Voltage24 V
Rated Operating Current100 mA
Documents
Documents
x
Download Datasheet
