Description

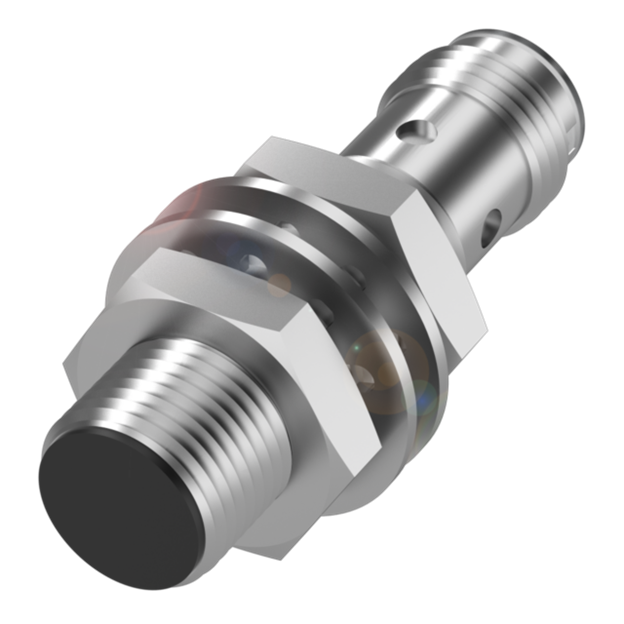

xThis is an inductive proximity sensor with M12 threaded housing, PNP normally open output, and a rated operating distance of 6 mm. The brass housing and quasi-flush mounting allow installation in metal surroundings while maintaining the stated sensing distance, and the IP68 rating supports use in washdown or contaminated environments. It connects via an M12x1 male 3-pin A-coded connector and operates on 10 to 30 VDC, making it suitable for detecting metal targets on machine bases or panel-mounted equipment in industrial automation systems.
Key specifications
- IP rating: IP68, according to BWN Pr 20
- Operating voltage: 10 - 30 VDC
- Rated voltage: 24 V
- Connection: M12x1 / Male / 3-pin / A-coded
- Output: PNP normally open (NO)
- Mounting: Quasi-flush mounting
Specifications
x| IP Rating | IP68, according to BWN Pr 20 |
| Compliance/Certifications | CE cULus WEEE / IEC 60947-5-2 |
| Material: Housing / Grip | Brass / Nickel-free coated |
| Material: Sensing Surface / Contacts | PBT |
| Part Length (mm) | 45mm |
| Part Diameter (mm) | 12mm |
| Connection Type | M12x1 / Male / 3-pin / A-coded |
| Tightening Torque | 10 Nm |
| Rated Operating Distance (mm) | 6mm |
| Switching Output | PNP normally open (NO) |
| Switching Frequency (Hz) | 1000 Hz |
| Rated Insulation Voltage | 250 VAC |
| Operating Voltage | 10 - 30 VDC |
| Rated Voltage | 24 V |
| Mounting Type | Quasi-flush mounting |
| Rated Operating Current | 200 mA |
