Description

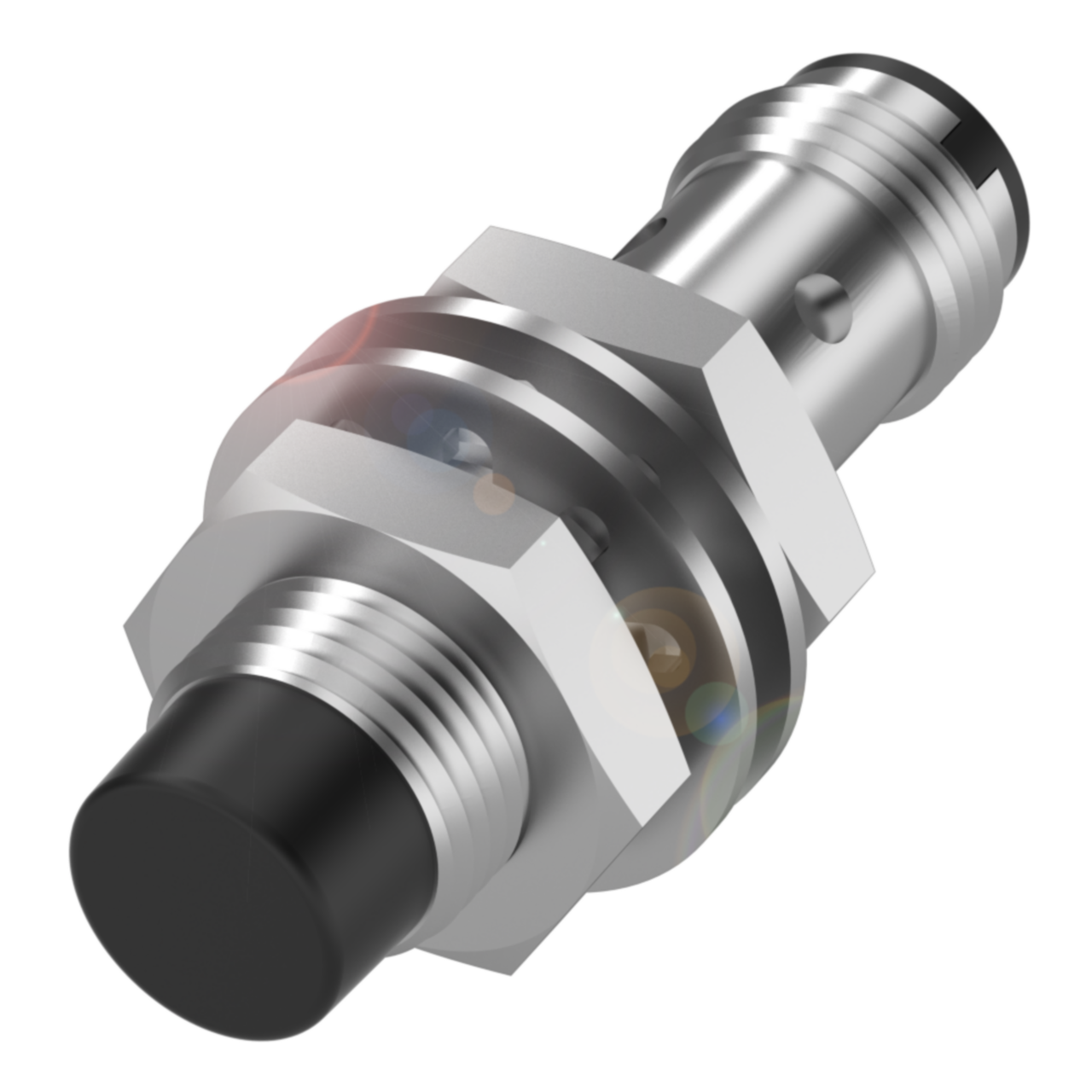

xThis is an M12 inductive proximity sensor with a PNP normally open output, providing a rated operating distance of 8mm for non-flush mounting applications. The housing and grip are brass with a nickel-free coating, and the sensing surface is PBT, giving an IP68 rating suited to washdown or contaminated industrial environments. It connects via an M12x1 four-pin A-coded male connector and operates from a 10-30 VDC supply, making it appropriate for detecting metal targets in automation panels and machine builds.
Key specifications
- IP rating: IP68
- Operating voltage: 10 - 30 VDC
- Rated voltage: 24 V
- Connection: M12x1 / Male / 4-pin / A-coded
- Output: PNP normally open (NO)
- Mounting: Non-flush mounting
Specifications
x| IP Rating | IP68 |
| Compliance/Certifications | CE UKCA cULus WEEE / IEC 60947-5-2 |
| Material: Housing / Grip | Brass / Nickel-free coated |
| Material: Sensing Surface / Contacts | PBT |
| Connection Type | M12x1 / Male / 4-pin / A-coded |
| Tightening Torque | 10Nm |
| Rated Operating Distance (mm) | 8mm |
| Switching Output | PNP normally open (NO) |
| Switching Frequency (Hz) | 1000 Hz |
| Rated Insulation Voltage | 250 VAC |
| Operating Voltage | 10 - 30 VDC |
| Rated Voltage | 24 V |
| Mounting Type | Non-flush mounting |
| Rated Operating Current | 200 mA |
