Description

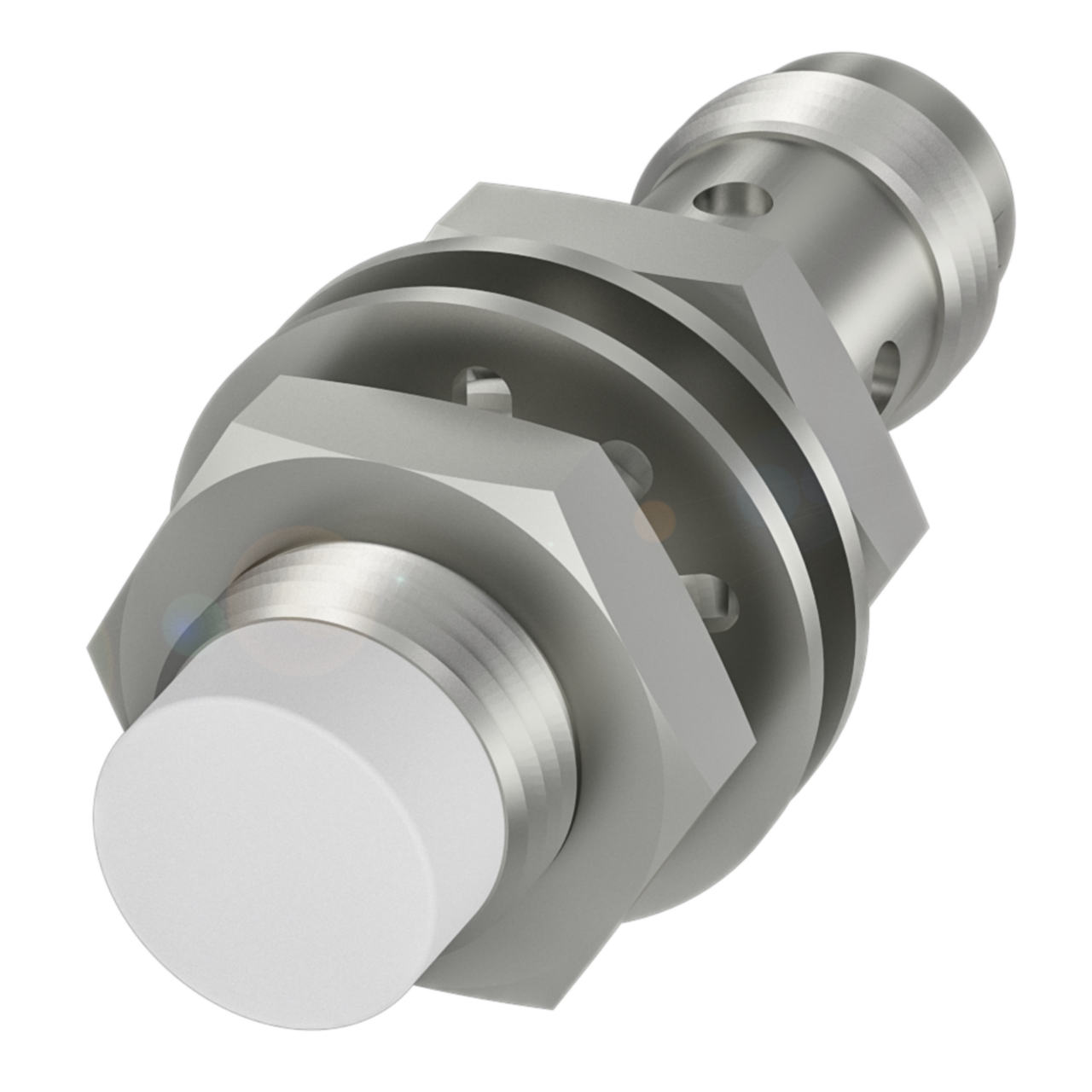

xThe BES M12MC1-PSC10F-S04G is an M12 inductive proximity sensor with a PNP normally open output, designed for non-flush mounting in automation equipment and machinery. It detects metallic targets at a rated operating distance of 10 mm and operates on a 10-30 VDC supply, switching at frequencies up to 600 Hz. The brass housing with nickel-free coating and IP68 rating suit installation in demanding industrial environments, with connection made via an M12x1 male, 3-pin, A-coded connector.
Key specifications
- IP rating: IP68, according to BWN Pr 20
- Operating voltage: 10 - 30 VDC
- Rated voltage: 24 V
- Connection: M12x1 / Male / 3-pin / A-coded
- Output: PNP normally open (NO)
- Mounting: Non-flush mounting
Specifications
x| IP Rating | IP68, according to BWN Pr 20 |
| Compliance/Certifications | CE cULus WEEE / IEC 60947-5-2 |
| Material: Housing / Grip | Brass / Nickel-free coated |
| Material: Sensing Surface / Contacts | PBT |
| Size | M12x1 |
| Connection Type | M12x1 / Male / 3-pin / A-coded |
| Tightening Torque | 10 Nm |
| Rated Operating Distance (mm) | 10mm |
| Switching Output | PNP normally open (NO) |
| Switching Frequency (Hz) | 600 Hz |
| Rated Insulation Voltage | 250 VAC |
| Operating Voltage | 10 - 30 VDC |
| Rated Voltage | 24 V |
| Mounting Type | Non-flush mounting |
| Rated Operating Current | 200 mA |
Documents
