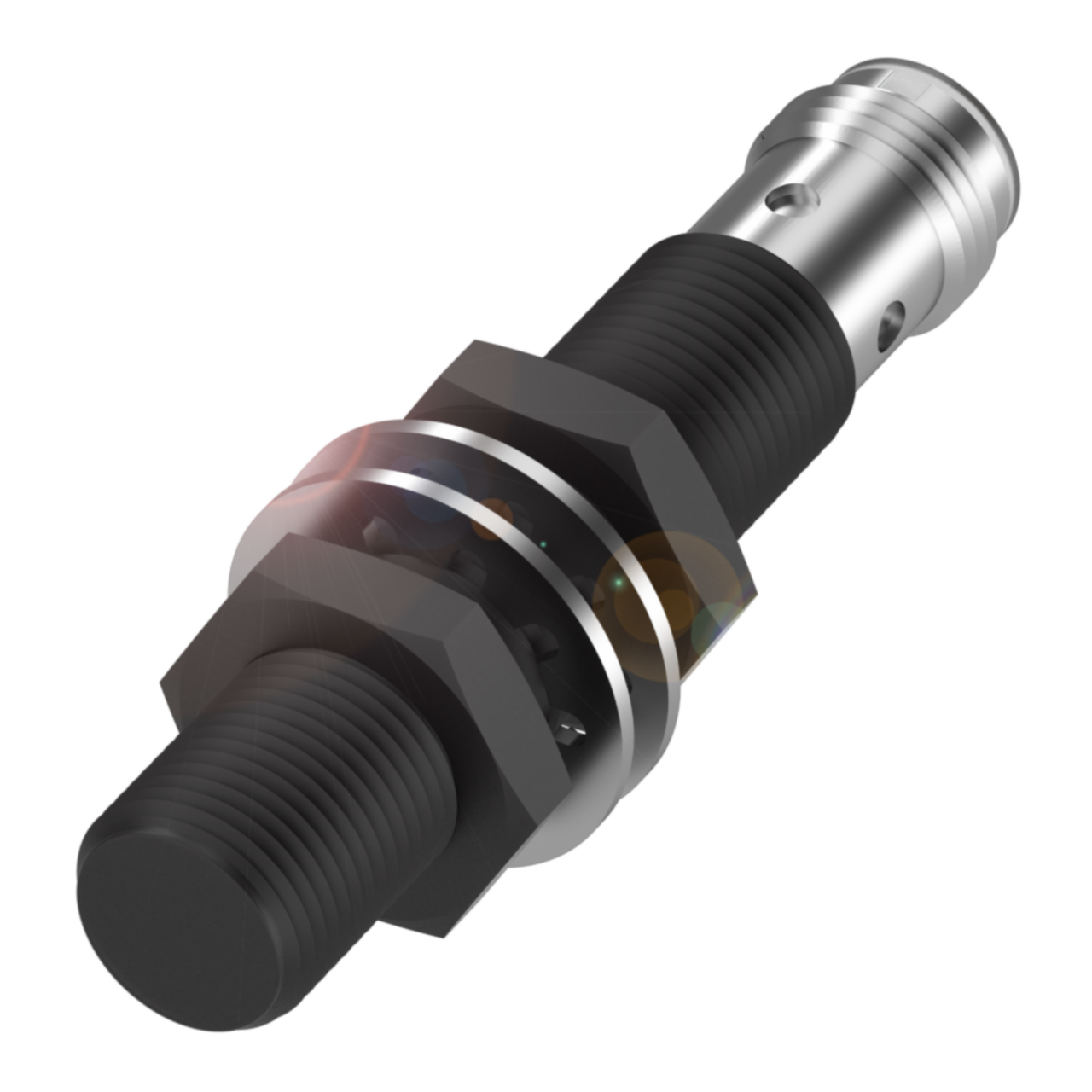

Balluff BES M12EI-PSC40B-S04G-S03 Inductive sensor, PNP, NO Part number BES056A

This M12x1 inductive sensor detects metal targets at a rated operating distance of 4mm and provides a PNP normally open switching output. Its housing and sensing face are PTFE-coated stainless steel, rated IP67, suitable for washdown or contamination-prone environments. Operating from 10-30 VDC with a switching frequency of 500 Hz, it is typically used for position and presence detection in industrial automation panels and machinery.

Key specifications

• IP rating: IP67
• Operating voltage: 10 - 30 VDC
• Rated voltage: 24 V
• Output: PNP normally open (NO)
