Description

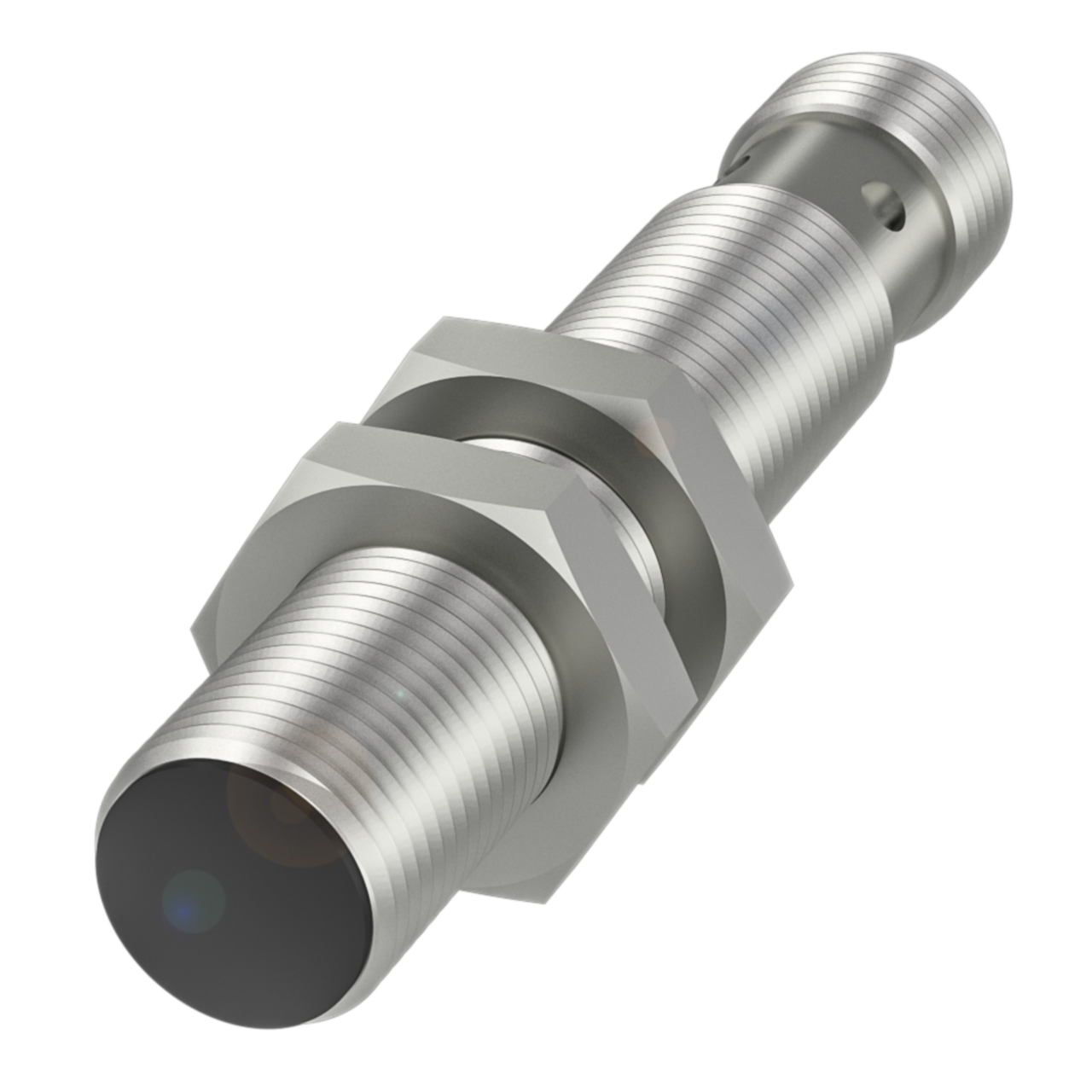

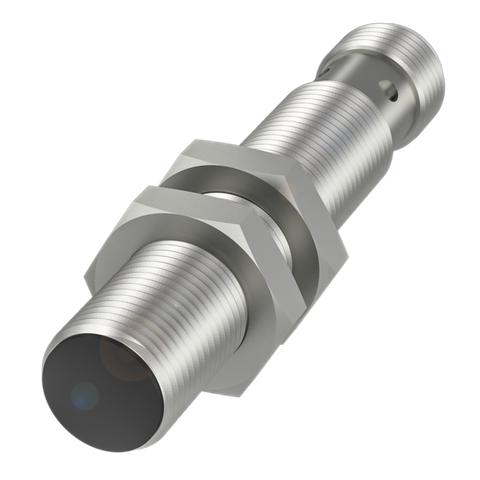

xThis M12 inductive sensor detects metal targets at a rated operating distance of 4mm and provides a PNP normally closed output for switching signals into a control system. It has a stainless steel housing with an LCP sensing face, an IP68 rating, and an M12x1 male 4-pin A-coded connector, suiting installation in washdown or harsh industrial environments. Operating from 10-30 VDC with a switching frequency of 1000 Hz, it is suited to automation panels and machinery requiring reliable position or presence detection of metallic components.
Key specifications
- IP rating: IP68
- Operating voltage: 10 - 30 VDC
- Rated voltage: 24 V
- Connection: M12x1 / Male / 4-pin / A-coded
- Output: PNP normally closed (NC)
Specifications
x| IP Rating | IP68 |
| Compliance/Certifications | cULus CE UKCA WEEE / IEC 60947-5-2 |
| Material: Housing / Grip | Stainless steel |
| Material: Sensing Surface / Contacts | LCP |
| Part Length (mm) | 65mm |
| Part Diameter (mm) | 12mm |
| Connection Type | M12x1 / Male / 4-pin / A-coded |
| Tightening Torque | 12 Nm |
| Rated Operating Distance (mm) | 4mm |
| Switching Output | PNP normally closed (NC) |
| Switching Frequency (Hz) | 1000 Hz |
| Rated Insulation Voltage | 250 VAC |
| Operating Voltage | 10 - 30 VDC |
| Rated Voltage | 24 V |
| Rated Operating Current | 200 mA |
