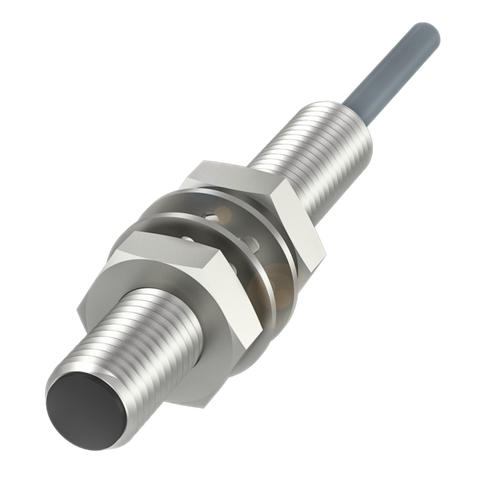

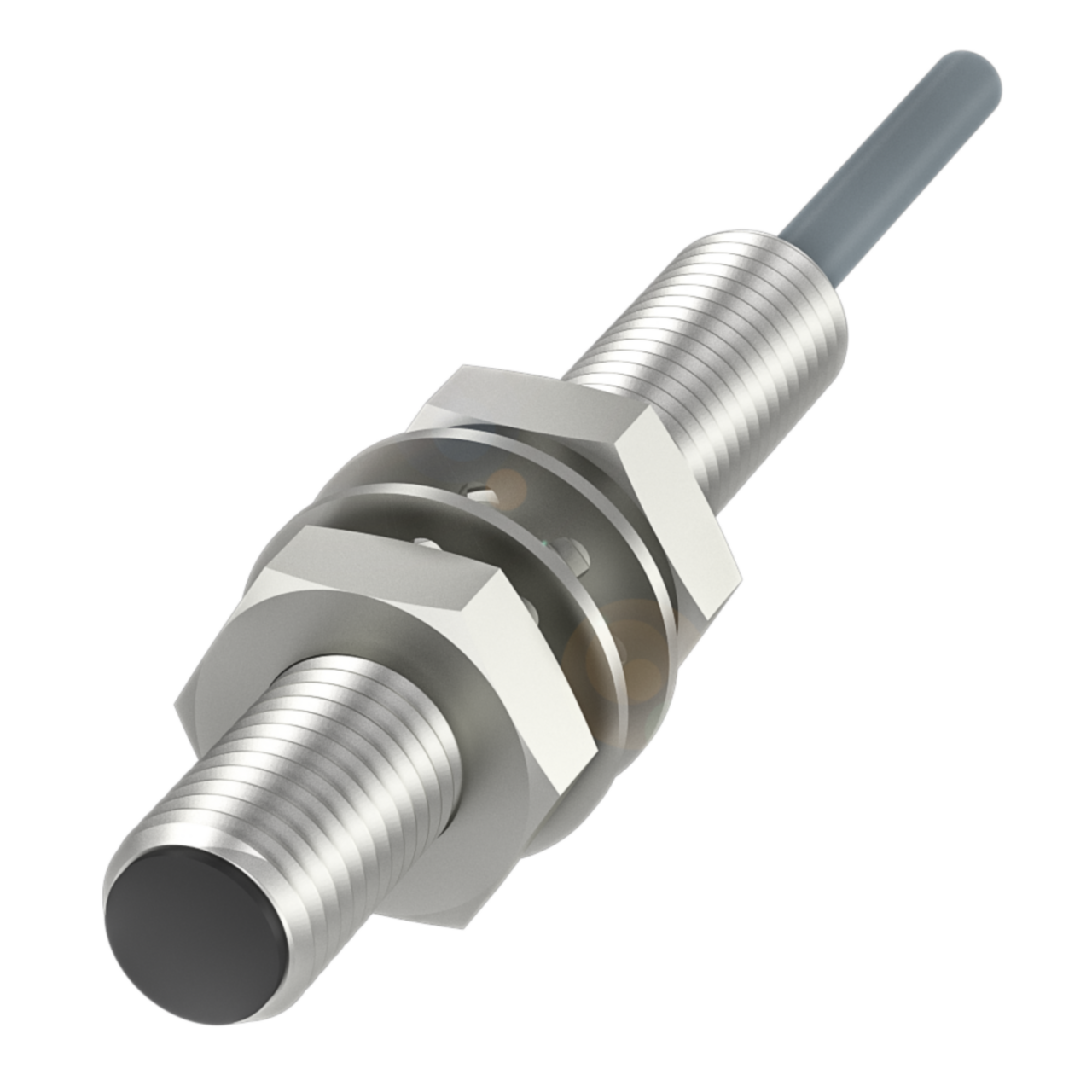

Balluff BES M08MI-NSC15B-BV03 Inductive sensor, NPN, NO
Balluff BES M08MI-NSC15B-BV03 Inductive sensor, NPN, NO

Balluff BES M08MI-NSC15B-BV03 Inductive sensor, NPN, NO Part number BES002H

This is an M8x1 inductive proximity sensor with an NPN normally open output, rated for flush mounting with a sensing distance of 1.5mm. It operates on 12–30 VDC, switches at up to 1000 Hz, and carries a rated operating current of 200 mA. The housing and grip are brass with...
Vendor: Balluff
Availability: Out Of Stock
Product type: Field Sensing & Connectivity
Please hurry! Only 0 left in stock
Description
Description
x

This is an M8x1 inductive proximity sensor with an NPN normally open output, rated for flush mounting with a sensing distance of 1.5mm. It operates on 12–30 VDC, switches at up to 1000 Hz, and carries a rated operating current of 200 mA. The housing and grip are brass with a nickel-free coating, and the sensing face is PA12, making it suitable for detecting metal targets in compact automation and machine-building applications where flush installation is required.

Key specifications

  • Operating voltage: 12 - 30 VDC
  • Rated voltage: 24 V
  • Output: NPN normally open (NO)
  • Mounting: Flush mounting
Specifications
Specifications
x
Compliance/CertificationsCE UKCA cULus WEEE / IEC 60947-5-2
Material: Housing / GripBrass / Nickel-free coated
Material: Jacket / Cover NutPVC
Material: Sensing Surface / ContactsPA12
SizeM8x1
Cable Length (mm)3 000mm
Cable Diameter (mm)3mm
Conductor Cross-section0.14 mm²
Tightening Torque3 Nm
Rated Operating Distance (mm)1.5mm
Switching OutputNPN normally open (NO)
Switching Frequency (Hz)1000 Hz
Rated Insulation Voltage75 VDC
Operating Voltage 12 - 30 VDC
Rated Voltage24 V
Mounting TypeFlush mounting
Rated Operating Current200 mA
Documents
Documents
x
Download Datasheet
