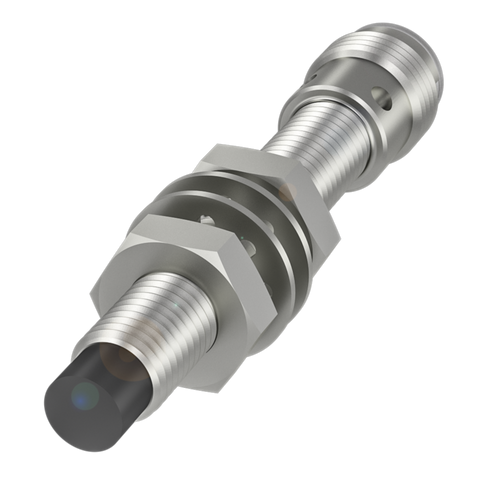

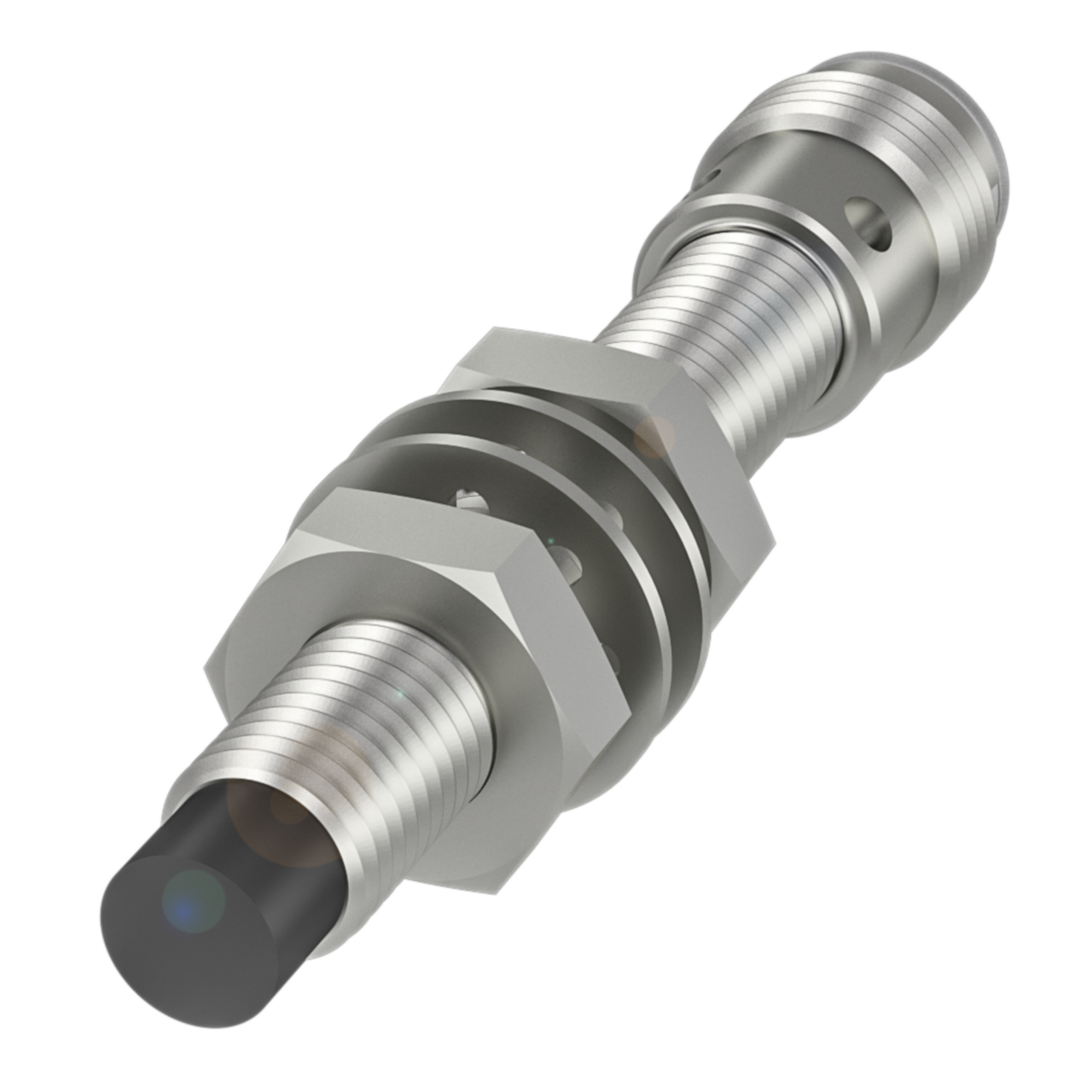

Balluff BES M08EH-PSC40F-S04G Inductive sensor, PNP, NO Part number BES001H

This is an inductive proximity sensor with a PNP normally open output, housed in a stainless steel M8 body with an M12x1 male connector for cable connection. It detects metal targets at a rated operating distance of 4mm and is designed for non-flush mounting, operating from a 10-30 VDC supply. The IP68-rated housing and stainless steel construction suit installations in wet or contaminated industrial environments, such as machine and panel-mounted position detection.

Key specifications

• IP rating: IP68
• Operating voltage: 10 - 30 VDC
• Rated voltage: 24 V
• Connection: M12x1 / Male / 3-pin / A-coded
• Output: PNP normally open (NO)
• Mounting: Non-flush mounting
