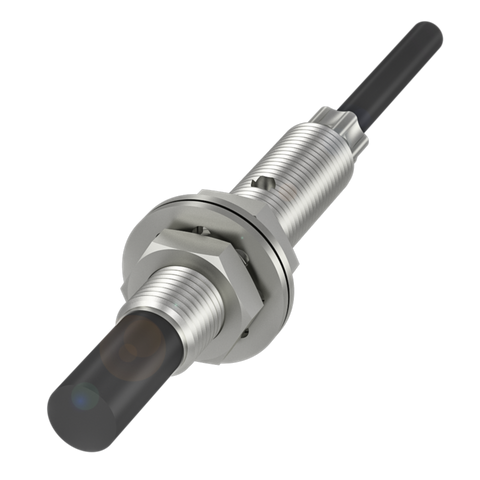

Balluff BES M05ED-PSC50F-EP05 Inductive sensor, PNP, NO
Balluff BES M05ED-PSC50F-EP05 Inductive sensor, PNP, NO

Balluff BES M05ED-PSC50F-EP05 Inductive sensor, PNP, NO

This M5 inductive sensor features a 5 mm rated operating distance with PNP normally open (NO) output. It is designed for non-flush installation and provides reliable operation with a durable stainless steel housing.
Vendor: Balluff
SKU: BES013F
Availability: Out Of Stock
Product type: Field Sensing & Switching
Please hurry! Only 0 left in stock
Description
Description
x

This M5 inductive sensor features a 5 mm rated operating distance with PNP normally open (NO) output. It is designed for non-flush installation and provides reliable operation with a durable stainless steel housing.

Specifications
Specifications
x
IP RatingIP67
Compliance/CertificationsCE UKCA cULus WEEE / IEC 60947-5-2
Material: Housing / GripStainless steel
Material: Jacket / Cover NutPUR
Material: Sensing Surface / ContactsPET-C
SizeM5x0.5
Cable Length (mm)5 000mm
Cable Diameter (mm)3mm
Conductor Cross-section0.14 mm²
Connection StyleCable, 5.00 m, PUR
Tightening Torque1 Nm
Rated Operating Distance (mm)5mm
Switching OutputPNP normally open (NO)
Switching Frequency (Hz)3000 Hz
Rated Insulation Voltage75 VDC
Operating Voltage 10 - 30 VDC
Rated Voltage24 V
Rated Operating Current100 mA
Documents
Documents
x
Download Datasheet
