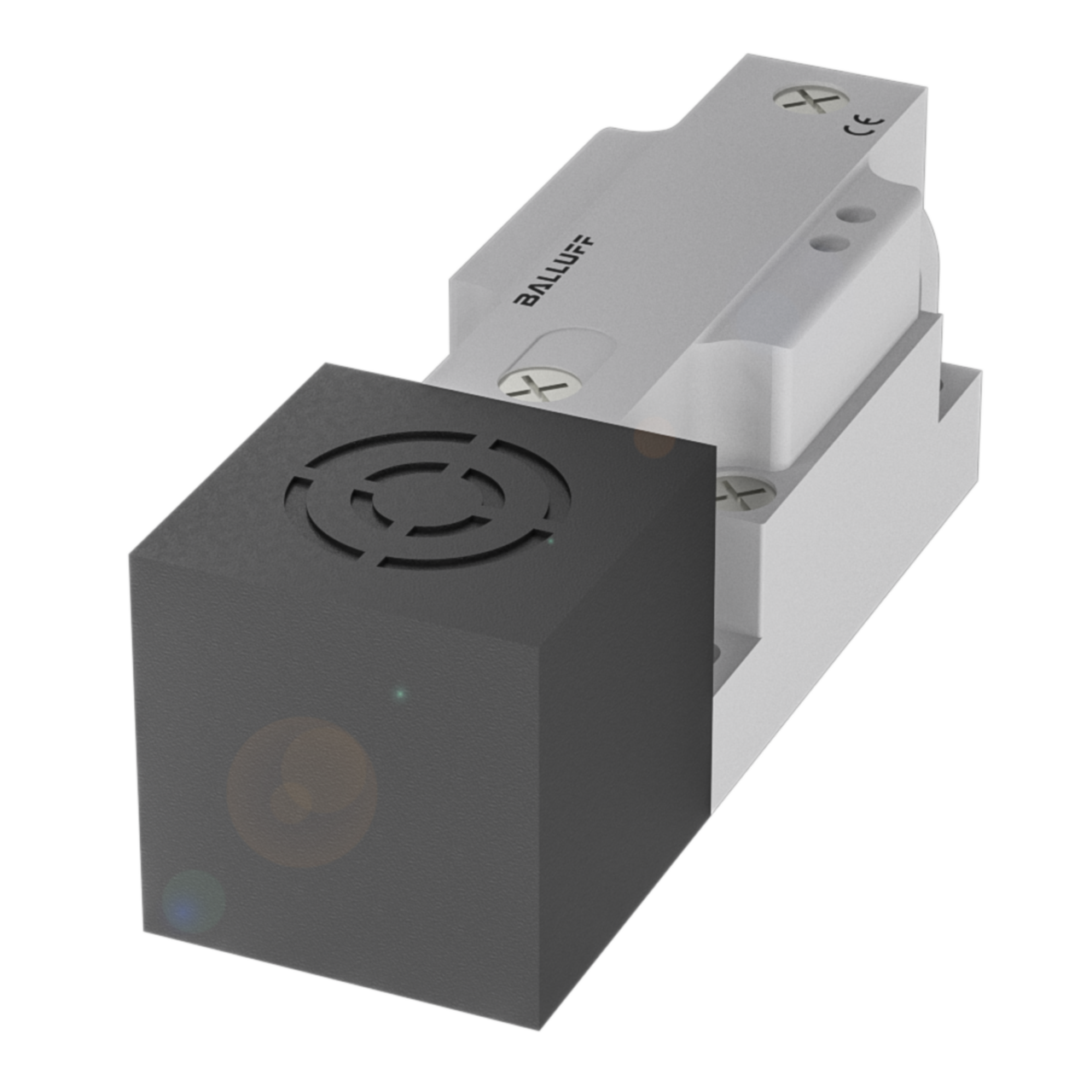

Balluff BES 517-132-M3-H Inductive sensor, PNP, NO/NC Part number BES0201

This inductive sensor from Balluff detects the presence of metal targets without contact and provides a PNP output configurable as normally open or normally closed, switching at up to 100 Hz. Housed in PBT with an IP67 rating and M20x1.5 connection, it operates from 10 to 55 VDC at a rated operating current of 200 mA. It is suited to automation panels and machine applications where reliable non-contact position or presence detection is required in environments demanding ingress protection.

Key specifications

• IP rating: IP67
• Operating voltage: 10 - 55 VDC
• Rated voltage: 24 V
• Connection: M20x1.5
• Output: PNP normally open/normally closed (NO/NC)
