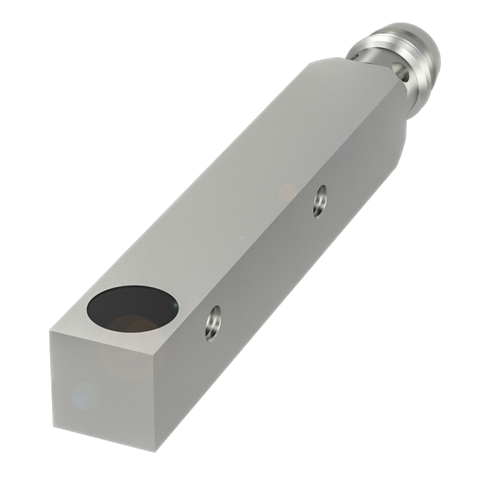

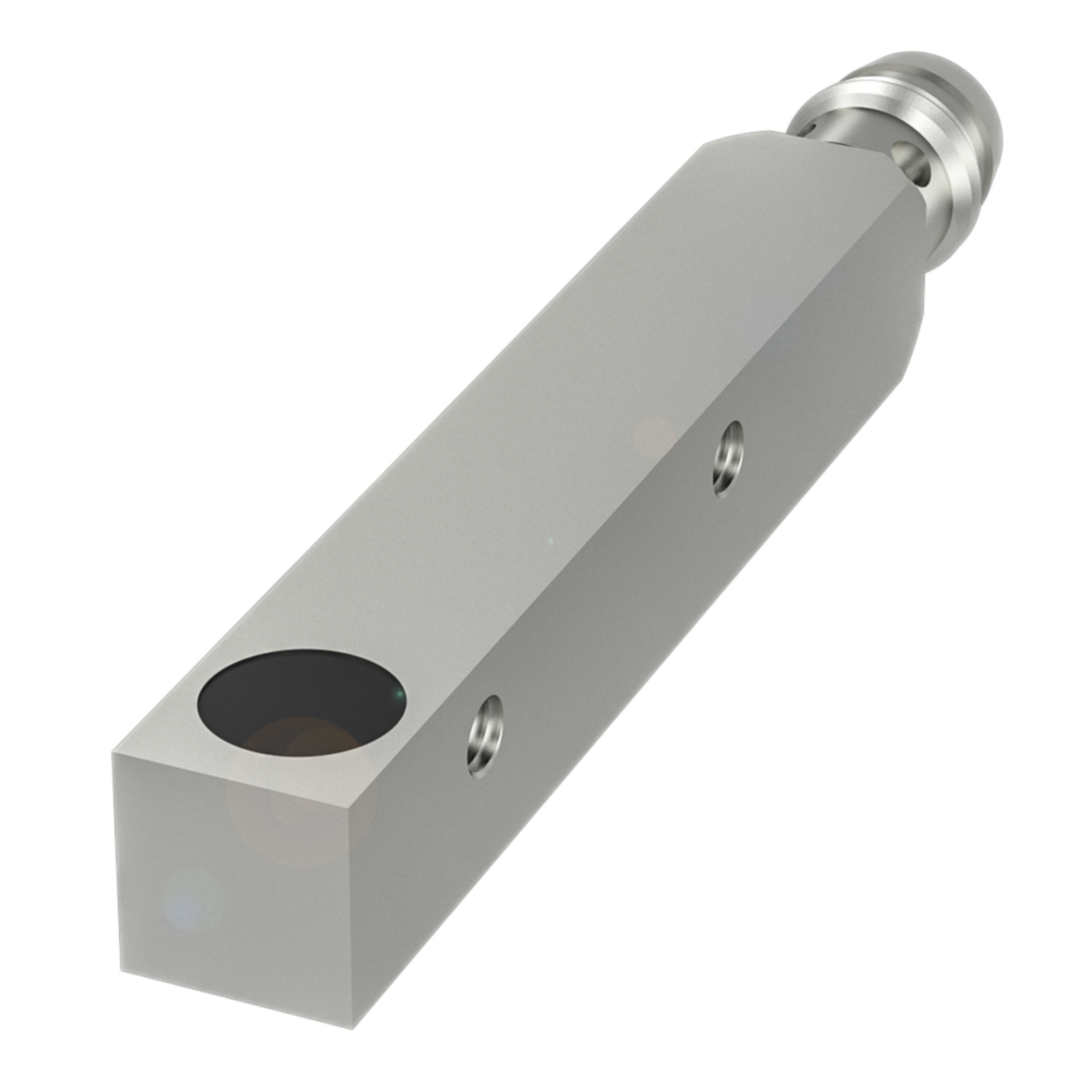

Balluff BES 516-300-S166-S49 Inductive standard sensor, PNP, NO
Balluff BES 516-300-S166-S49 Inductive standard sensor, PNP, NO

Balluff BES 516-300-S166-S49 Inductive standard sensor, PNP, NO Part number SBES0180

This is an inductive proximity sensor with a PNP normally open output, providing non-contact detection of metallic targets at a rated operating distance of 1.5 mm. The zinc die-cast housing and PBT sensing face, combined with an IP67 rating, suit installation in industrial environments where flush mounting is required. It...
Vendor: Balluff
Availability: Out Of Stock
Product type: Field Sensing & Connectivity
Please hurry! Only 0 left in stock
Description
Description
x

This is an inductive proximity sensor with a PNP normally open output, providing non-contact detection of metallic targets at a rated operating distance of 1.5 mm. The zinc die-cast housing and PBT sensing face, combined with an IP67 rating, suit installation in industrial environments where flush mounting is required. It connects via an M8x1 three-pin male connector and operates on 10 to 30 VDC, making it suitable for standard automation and machine-panel wiring.

Key specifications

  • IP rating: IP67
  • Operating voltage: 10 - 30 VDC
  • Rated voltage: 24 V
  • Output: PNP normally open (NO)
  • Mounting: Flush mounting
Specifications
Specifications
x
IP Rating / DetailedIP67
Compliance/CertificationsCE UKCA cULus WEEE / IEC 60947-5-2
Material: Housing / GripZinc die-casting
Material: Sensing Surface / ContactsPBT
Size8x8
Connection StyleM8x1-Male, 3-pin
Rated Operating Distance (mm)1.5 mm
Switching OutputPNP normally open (NO)
Switching Frequency (Hz)5000 Hz
Rated Insulation Voltage75 VDC
Operating Voltage 10 - 30 VDC
Rated Voltage24 V
Mounting TypeFlush mounting
Rated Operating Current200 mA
