Description

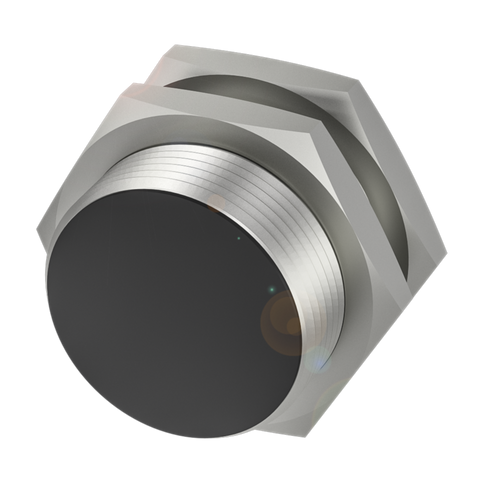

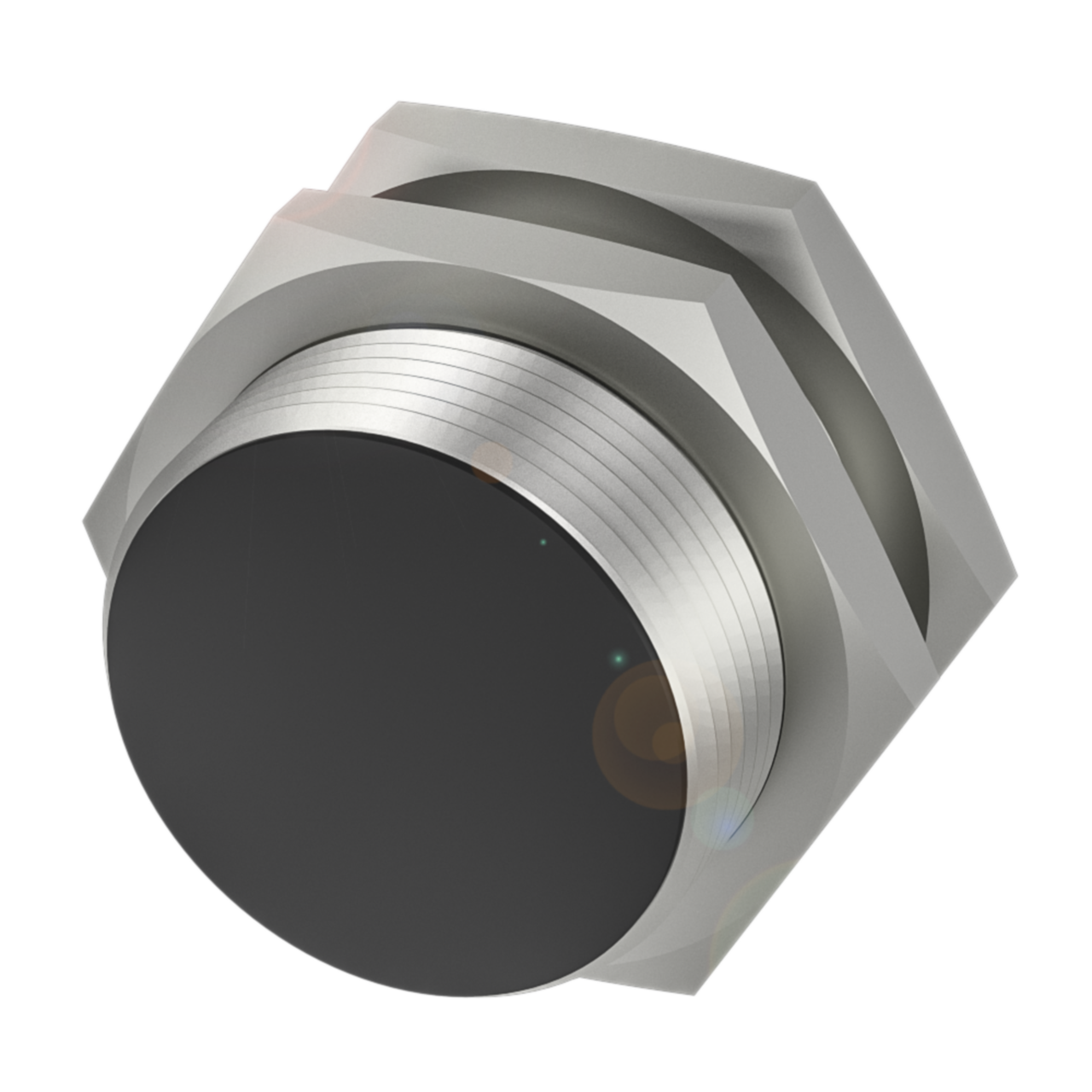

xThe BES 515-327-E5-T-S4 is an inductive proximity sensor with a PNP normally open output, housed in a stainless steel M30x1.5 body with a PA 12 sensing surface. It detects metal targets at a rated operating distance of 10mm and is designed for flush mounting, operating from 10 to 30 VDC via an M12x1 4-pin male A-coded connector. With an IP68/IP69K rating, it is suited to industrial environments involving washdown or exposure to moisture and contaminants.
Key specifications
- IP rating: IP68, according to BWN Pr. 27 / IP69K
- Operating voltage: 10 - 30 VDC
- Rated voltage: 24 V
- Connection: M12x1 / Male / 4-pin / A-coded
- Output: PNP normally open (NO)
- Mounting: Flush mounting
Specifications
x| IP Rating | IP68, according to BWN Pr. 27 / IP69K |
| Compliance/Certifications | CE UKCA cULus WEEE / IEC 60947-5-2 |
| Material: Housing / Grip | Stainless steel |
| Material: Sensing Surface / Contacts | PA 12 |
| Size | M30x1.5 |
| Connection Type | M12x1 / Male / 4-pin / A-coded |
| Tightening Torque | 80 Nm |
| Rated Operating Distance (mm) | 10mm |
| Switching Output | PNP normally open (NO) |
| Switching Frequency (Hz) | 200 Hz |
| Rated Insulation Voltage | 75 VDC |
| Operating Voltage | 10 - 30 VDC |
| Rated Voltage | 24 V |
| Mounting Type | Flush mounting |
| Rated Operating Current | 130 mA |
