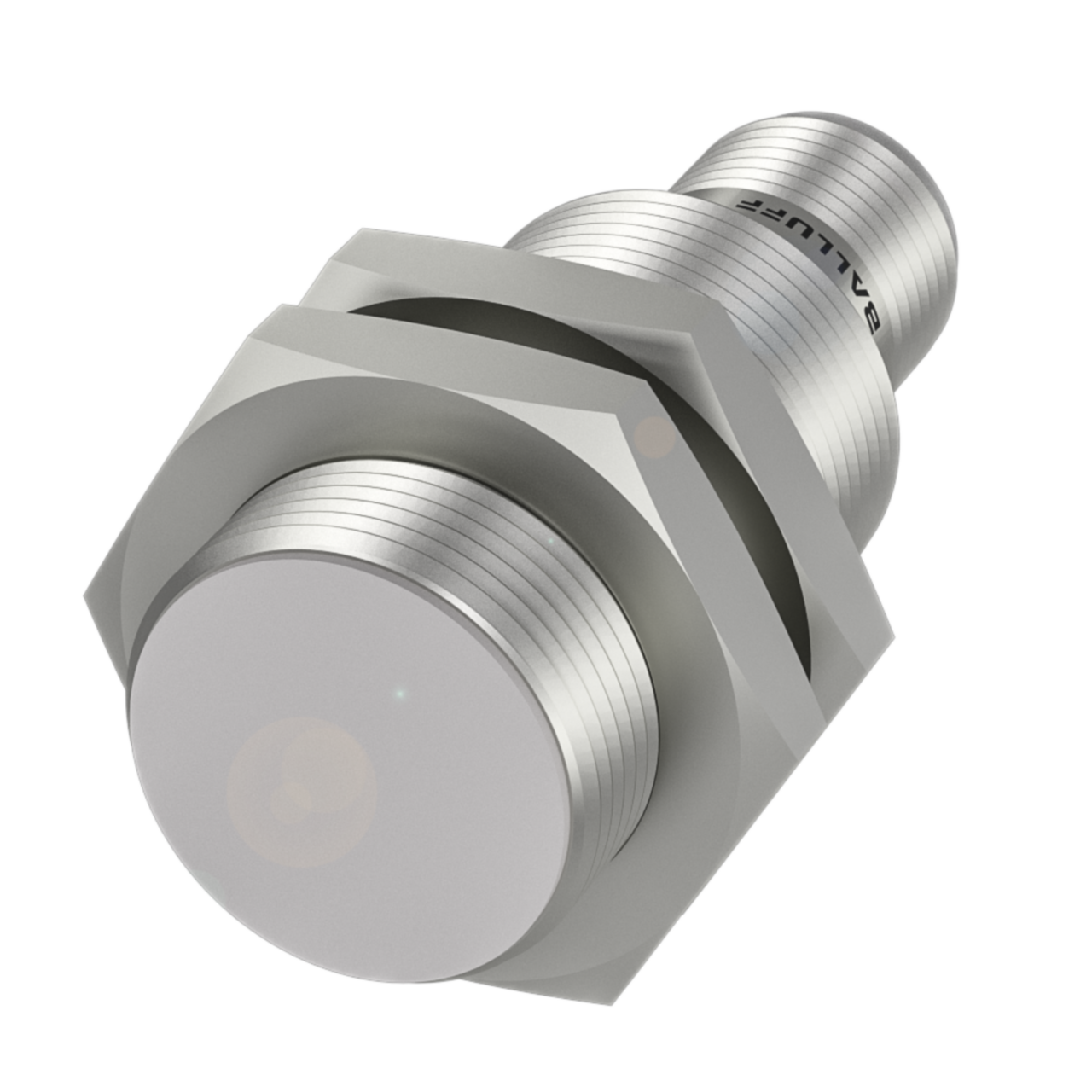

Balluff BES 415-326-E5-T-S4 Inductive sensor, PNP, NO Part number BES02ET

This inductive sensor detects the presence of metal targets without physical contact, switching a PNP normally open output at a rated operating distance of 5mm. The stainless steel housing and PA 12 sensing surface, combined with an IP68/IP69K rating, suit environments involving washdown, dust or mechanical exposure. Flush mounting allows installation where the sensor face sits level with surrounding metalwork, and the M12x1 male A-coded connector provides a standard field wiring interface for panel and machine builds.

Key specifications

• IP rating: IP68, according to BWN Pr. 27 / IP69K
• Operating voltage: 10 - 30 VDC
• Rated voltage: 24 V
• Connection: M12x1 / Male / 3-pin / A-coded
• Output: PNP normally open (NO)
• Mounting: Flush mounting
