Description

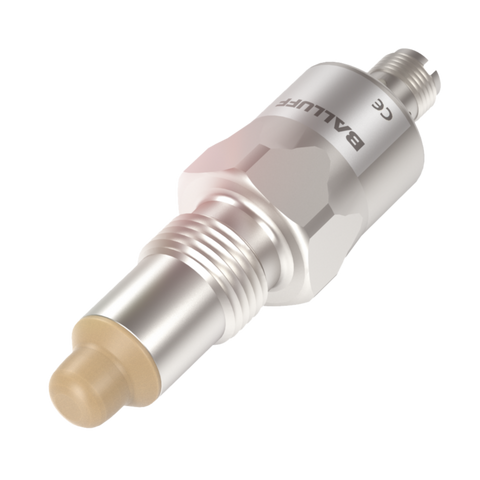

xThe BCS S04K501-PICFNG-S04G-T51 is a capacitive level sensor with a stainless steel (1.4404) housing measuring Ø 30 x 96 mm and a PEEK sensing face, installed non-flush. It provides a PNP normally open switching output with a switching frequency of 5 Hz, connecting via an M12x1, 4-pin male connector, and operates from 18...30 VDC. Rated IP68 and suited to an ambient temperature range of -10...85 °C, it is intended for level detection in industrial environments where hygienic or corrosion-resistant materials are required.
Key specifications
- IP rating: IP68
- Operating voltage: 18...30 VDC
- Connection: Connector, M12x1-Male, 4-pin
- Output: PNP normally open (NO)
- Operating temperature: -10...85 °C
- Dimensions: Ø 30 x 96 mm
Specifications
x| dimension | Ø 30 x 96 mm |
| installation | non-flush |
| switching_output | PNP normally open (NO) |
| switching_frequency | 5 Hz |
| housing_material | 1.4404 stainless steel |
| material_sensing | PEEK |
| connection | Connector, M12x1-Male, 4-pin |
| operating_voltage | 18...30 VDC |
| ambient_temperature | -10...85 °C |
| ip_rating | IP68 |
| approval_conformity | CEUKCAWEEEcULus |
